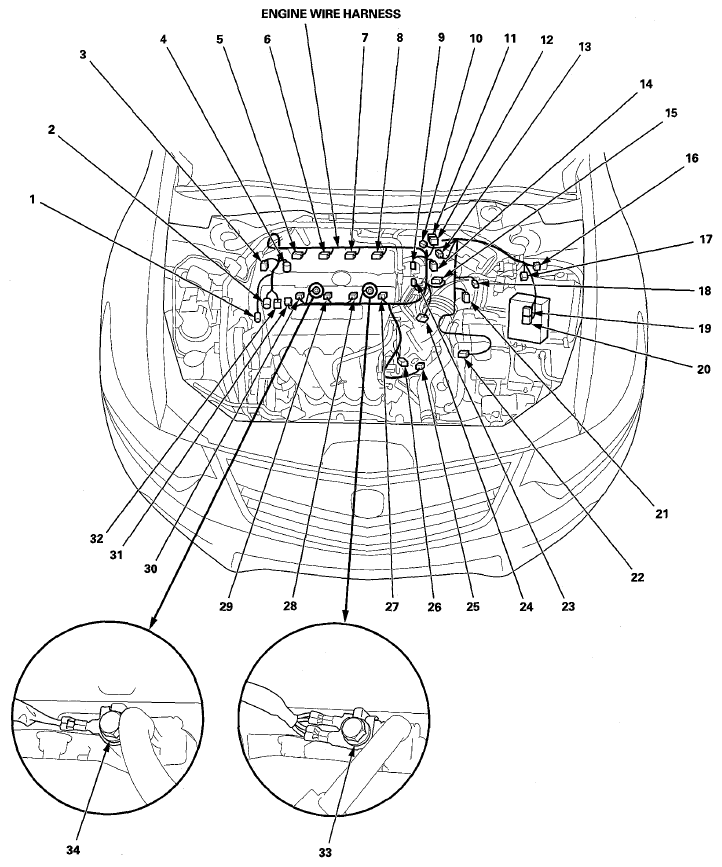

Engine Wire Harness (M/T)
ENGINE WIRE HARNESS (M/T) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Air fuel ratio (A/F) sensor | 10 | 4 | Middle of engine compartment | ||
| Back-up light switch | 21 | 2 | On the transmission housing | ||
| Camshaft position (CMP) sensor A | 23 | 3 | Middle of engine compartment | ||
| Camshaft position (CMP) sensor B | 9 | 3 | Middle of engine compartment | ||
| ECM connector B | 20 | 49 | Left side of engine compartment | ||
| ECM connector C | 19 | 49 | Left side of engine compartment | ||
| Engine coolant temperature (ECT) sensor 1 | 15 | 2 | Middle of engine compartment | ||
| Engine mount control solenoid | 31 | 2 | Middle of engine compartment | ||
| EVAP canister purge valve | 14 | 2 | Middle of engine compartment | ||
| Ignition coil No. 1 | 5 | 3 | Middle of engine compartment | ||
| Ignition coil No. 2 | 6 | 3 | Middle of engine compartment | ||
| Ignition coil No. 3 | 7 | 3 | Middle of engine compartment | ||
| Ignition coil No. 4 | 8 | 3 | Middle of engine compartment | ||
| Injector No. 1 | 30 | 2 | Middle of engine compartment | ||
| Injector No. 2 | 29 | 2 | Middle of engine compartment | ||
| Injector No. 3 | 28 | 2 | Middle of engine compartment | ||
| Injector No. 4 | 27 | 2 | Middle of engine compartment | ||
| Manifold absolute pressure (MAP) sensor | 26 | 3 | Middle of engine compartment | ||
| Mass air flow (MAF) sensor/Intake air temperature (IAT) sensor | 17 | 5 | Air cleaner housing cover | ||
| Oil pressure switch | 2 | 1 | Middle of engine compartment | ||
| Output shaft (countershaft) speed sensor | 22 | 3 | Front of transmission housing | ||
| Reverse lockout solenoid | 18 | 2 | On the transmission housing | ||
| Rocker arm oil control solenoid | 3 | 2 | Middle of engine compartment | ||
| Rocker arm oil pressure switch | 4 | 2 | Middle of engine compartment | ||
| Secondary HO2S | 32 | 4 | Middle of engine compartment | ||
| Throttle position sensor/Throttle actuator | 24 | 6 | Middle of engine compartment | ||
| VTC oil control solenoid valve | 1 | 2 | Middle of engine compartment | ||
| C101 | 16 | 23 | Left side of engine compartment | Left engine compartment wire harness (engine compartment branch) | |
| C102 | 25 | 10 | Left side of engine compartment | Starter subharness | |
| C103 (junction connector) | 12 | 24 | Middle of engine compartment | ||
| C104 | 13 | 3 | Middle of engine compartment | CKP sensor subharness | |
| C105 (junction connector) | 11 | 12 | Middle of engine compartment | ||
| G101 | 33 | Middle of engine compartment | Body ground, via engine wire harness | ||
| G102 | 34 | Middle of engine compartment | Body ground, via engine wire harness |
