EPS Subharness

EPS SUBHARNESS - CONNECTOR TO HARNESS INDEX

Connector or Terminal Ref Cavities Location Connects to Notes
Torque sensor 5 3 Left of engine compartment
C354 4 6 Left of engine compartment Left engine compartment wire harness (engine compartment branch)
T6 3 - Middle of engine compartment Steering gearbox
T7 2 - Middle of engine compartment Steering gearbox
T8 1 - Middle of engine compartment Steering gearbox

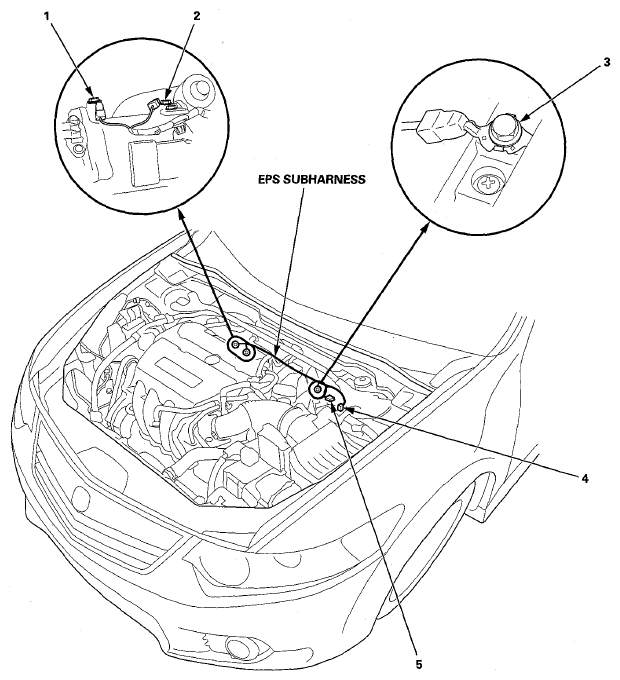

Fig 1: Identifying EPS Subharness Location
G07769854Courtesy of AMERICAN HONDA MOTOR CO., INC.
