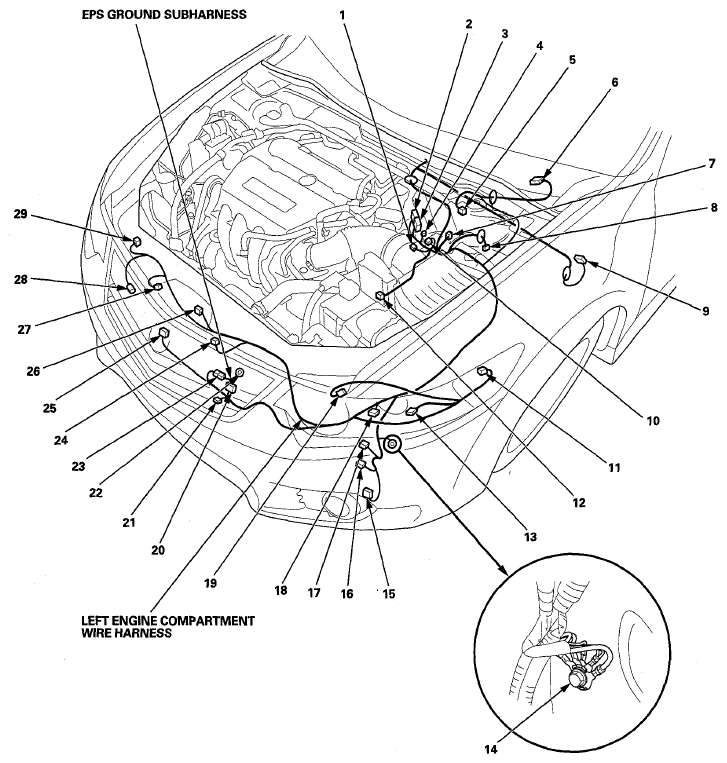

EPS Ground Subharness
EPS GROUND SUBHARNESS - CONNECTOR TO HARNESS INDEX
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| C251 |
23 |
1 |
Left front of engine compartment |
Left engine compartment wire harness (engine compartment branch) |
|
| T9 |
22 |
|
Left front of engine compartment |
Front suspension subframe |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
