Driver's Seat Wire Harness (With DPMS)

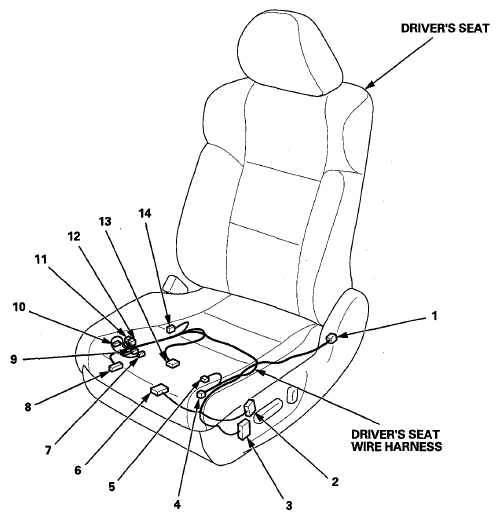

DRIVER'S SEAT WIRE HARNESS (WITH DPMS) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Driver's power seat adjustment switch | 3 | 12 | Left side of driver's seat | ||
| Driver's seat back heater | 9 | 2 | Driver's seat | ||
| Driver's seat belt buckle switch | 10 | 2 | Driver's seat | ||
| Driver's seat cushion heater | 7 | 4 | Driver's seat | ||
| Driver's seat front up-down motor/position sensor | 14 | 5 | Driver's seat | ||
| Driver's seat heater relay (high) | 12 | 4 | Driver's seat | ||
| Driver's seat heater relay (low) | 11 | 5 | Driver's seat | ||
| Driver's seat position sensor | 1 | 2 | Driver's seat | ||
| Driver's seat rear up-down motor/position sensor | 2 | 5 | Driver's seat | ||
| Driver's seat recline motor/position sensor | 5 | 5 | Bottom of seat back | ||
| Driver's seat slide motor/position sensor | 13 | 5 | Driver's seat | ||
| Power seat control unit connector A | 8 | 40 | Under driver's seat | ||
| Power seat control unit connector B | 6 | 18 | Under driver's seat | ||
| C701 | 4 | 23 | Under driver's seat | SRS floor wire harness
|
