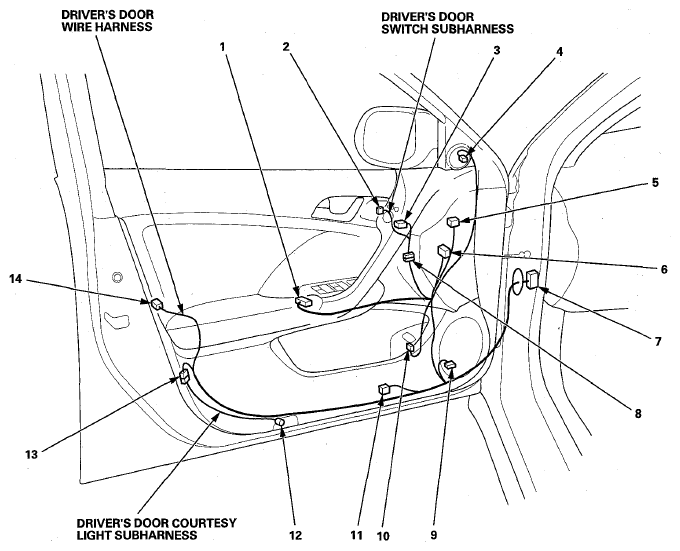

Driver's Door Switch Subharness
DRIVER'S DOOR SWITCH SUBHARNESS - CONNECTOR TO HARNESS INDEX
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Driving position memory switch |
2 |
7 |
Driver's door |
|
|
| Power mirror switch |
3 |
13 |
Driver's door |
|
|
| C753 |
8 |
20 |
Driver's door |
Driver's door wire harness |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
