A/C Wire Harness

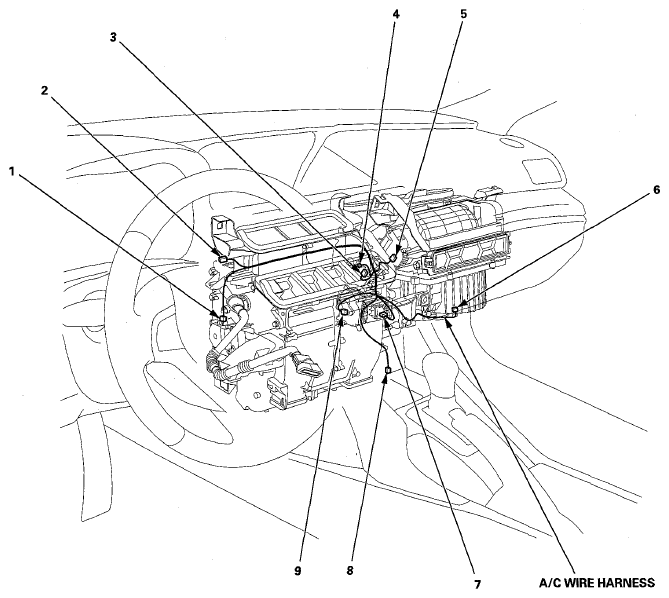

A/C WIRE HARNESS - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Blower motor | 6 | 2 | Under right side of dash | ||
| Driver's air mix control motor | 1 | 7 | Under middle of dash | ||
| Evaporator temperature sensor | 4 | 2 | Under middle of dash | ||
| Mode control motor | 3 | 7 | Under middle of dash | ||
| Passenger's air mix control motor | 9 | 7 | Under middle of dash | ||
| Power transistor | 7 | 4 | Under middle of dash | ||
| Recirculation control motor | 5 | 7 | Under middle of dash | ||
| C351 | 2 | 2 | Under middle of dash | Left engine compartment wire harness (dashboard branch) | |
| C409 | 8 | 20 | Under middle of dash | Audio wire harness
|
