Drive Belt Removal/Installation

Special Tools Required

Belt Tension Release Tool Snap-on YA9317* or equivalent, commercially available

*: Available through the Acura Tool and Equipment Program 888-424-6857.

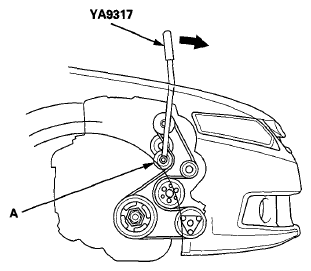

1. Move the auto-tensioner (A) using the belt tension release tool in the direction of the arrow to relieve tension from the drive belt, then remove the drive belt.
   Fig 1: Moving Auto-Tensioner

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the new belt in the reverse order of removal.
