Seat Side Bolster

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove the seat cushion.
2. Remove the bolt securing the seat side bolster (A).
   Fig 1: Seat Side Bolster And Bolt With Torque Specification

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Fold down the seat-back.
4. Lift up the seat side bolster (A) to release the hooks (B), then remove the seat side bolster.

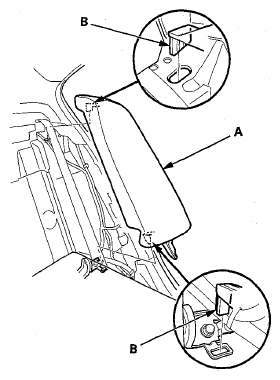

   Fig 2: Identifying Seat Side Bolster And Hooks

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the seat side bolster in the reverse order of removal, and note these items:
   • Guide the belts over the front of the seat side bolster as you install the bolster.
   • Make sure there are no twists or kinks in the seat belts before attaching the seat side bolster.
