Trim Removal/Installation - Cargo Area

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program; call 888-424-6857

1. Remove the tonneau cover (see step  1 on ).
2. Fold down both rear seat-backs.
3. Release the Velcro fasteners (A) from both rear seat-backs (B). Pull back the Velcro fasteners, then attach them on the rear floor mat (C) as shown. Pull back the front area of the rear floor lid (D) to detach the clips, then turn the front section upside down to release the hooks (E) from both front lid supports (F).

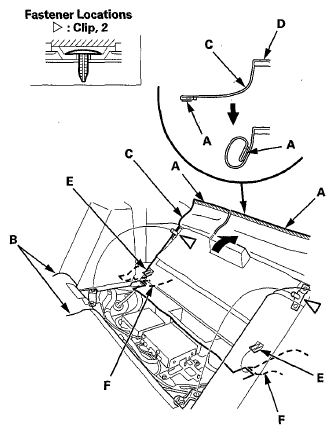

   Fig 1: Releasing Velcro Fasteners From Rear Seat-Backs

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the rear floor lid (A).

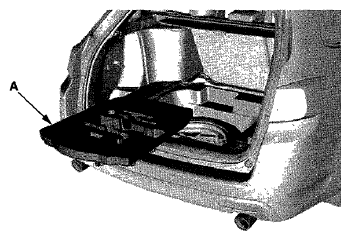

   Fig 2: Identifying Rear Floor Lid

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Remove the rear floor bucket (A).

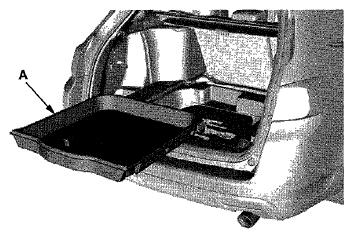

   Fig 3: Identifying Rear Floor Bucket

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Remove the tool box spacer (A).
   Fig 4: Identifying Tool Box Spacer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Remove the tailgate weatherstrip near the rear trim panel as needed (see TAILGATE WEATHERSTRIP REPLACEMENT ).
8. Detach the clips (A, B), and release the hooks (C) and the tabs (D) from the cargo area side trim panels (E) by pulling the rear trim panel (F) up, then remove it.

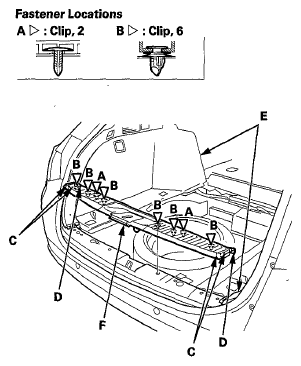

   Fig 5: Identifying Clips, Hooks, Tabs, Cargo Area Side Trim Panels And Rear Trim Panel

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. If necessary, remove the clips, then remove the rear under floor cover (A).
   Fig 6: Identifying Rear Under Floor Cover With Clips

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Install the trim panel in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Push the clips and the hooks into place securely.
