Automatic Dimming Inside Mirror (4-CYL)
>>
Circuit Diagram
Circuit Diagram

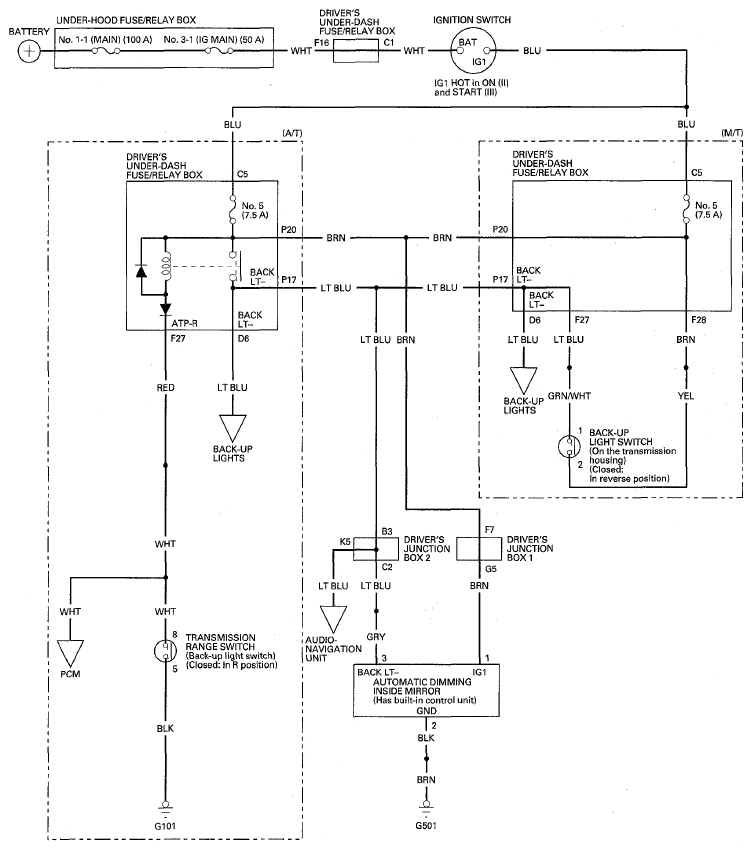

Fig 1: Automatic Dimming Inside Mirror Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
