Home >> Acura >> 2014 >> TSX Special Edition, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Interior Lights (4-CYL) >> Component Location Index >> Sport Wagon

Sport Wagon

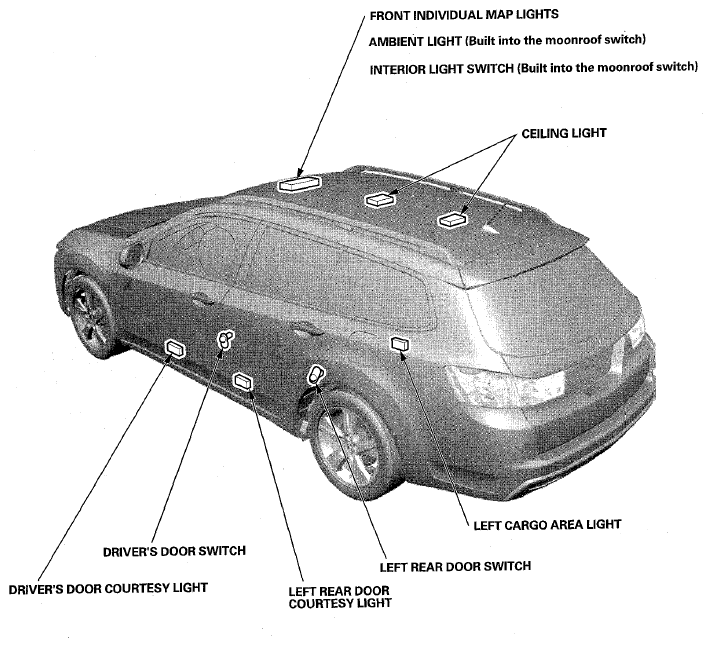

Fig 1: Identifying Interior Lights Component Location (Sport Wagon) - 1 Of 2
G07770535Courtesy of AMERICAN HONDA MOTOR CO., INC.

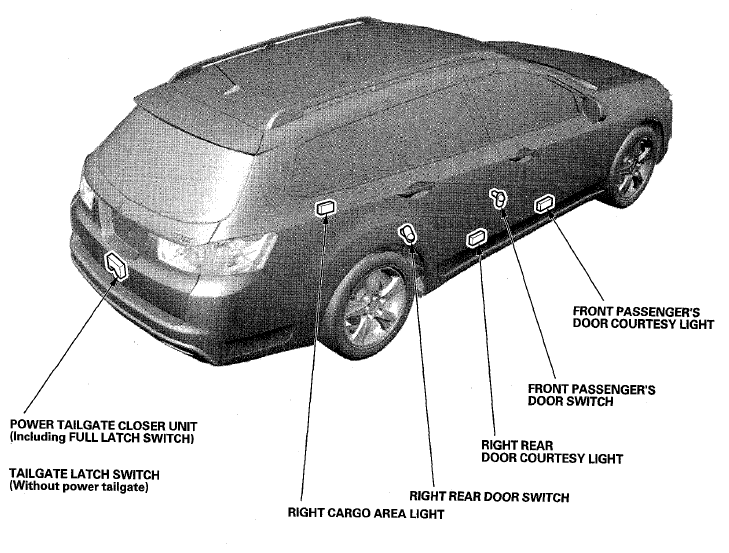

Fig 2: Identifying Interior Lights Component Location (Sport Wagon) - 2 Of 2
G07770536Courtesy of AMERICAN HONDA MOTOR CO., INC.

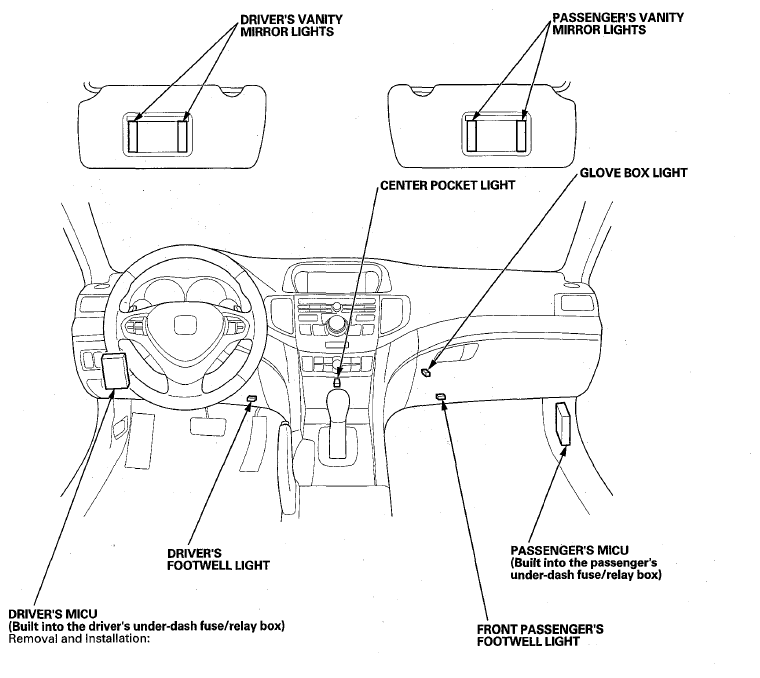

Fig 3: Identifying Interior Lights Component Location (Sport Wagon) 3 Of 3
G07770537Courtesy of AMERICAN HONDA MOTOR CO., INC.
