Home >> Acura >> 2014 >> TSX Special Edition, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Interior Lights (4-CYL) >> Component Location Index >> Sedan

Component Location Index: Sedan

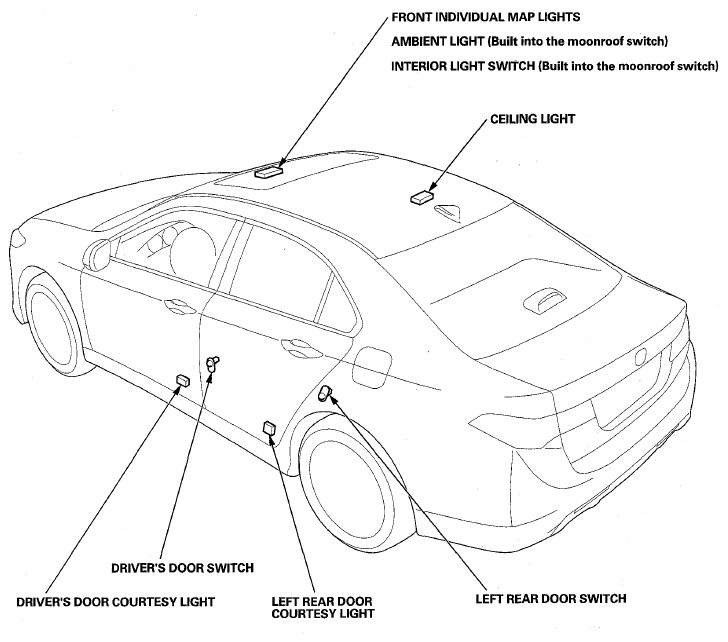

Fig 1: Identifying Interior Lights Component Location (Sedan) - 1 Of 2
G07770533Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying Interior Lights Component Location (Sedan) - 2 Of 2
G07770534Courtesy of AMERICAN HONDA MOTOR CO., INC.
