TSX Special Edition, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Interior/Illumination Lights
>>
Interior Lights (4-CYL)
>>
Circuit Diagram
Circuit Diagram

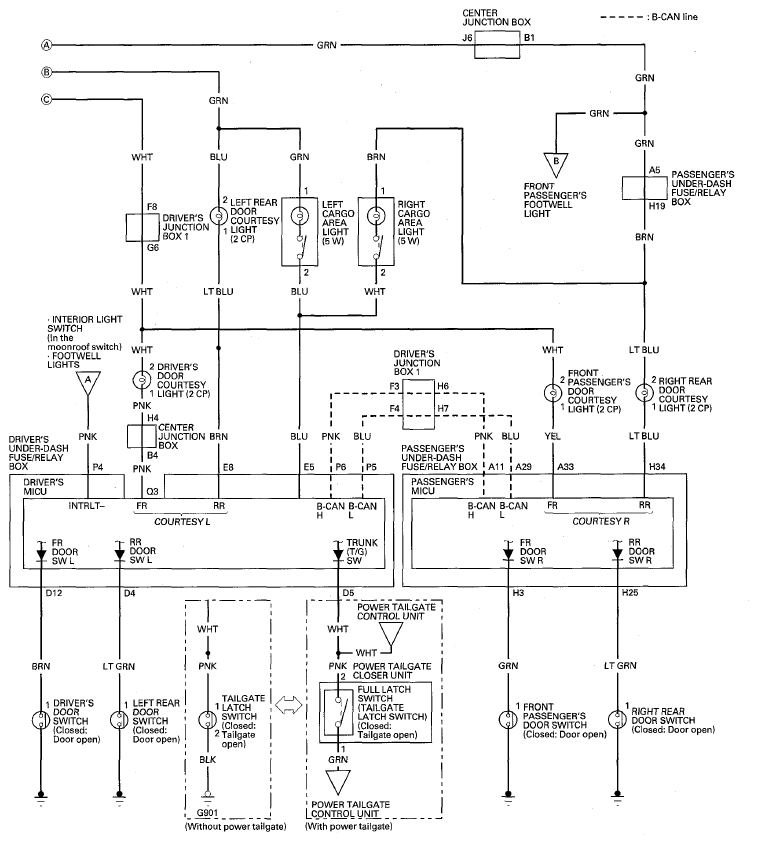

Fig 1: Identifying Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

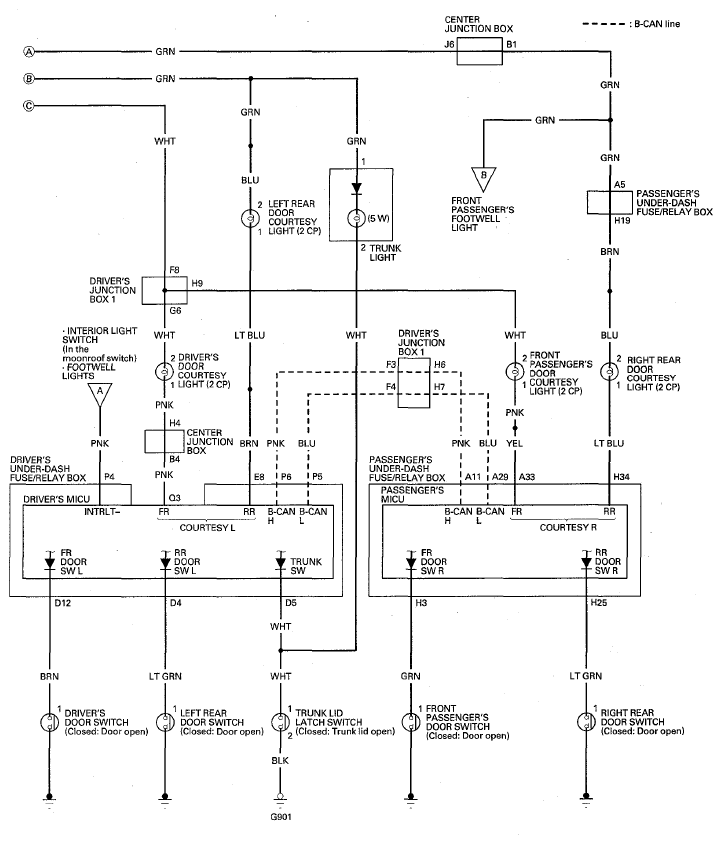

Fig 2: Identifying Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

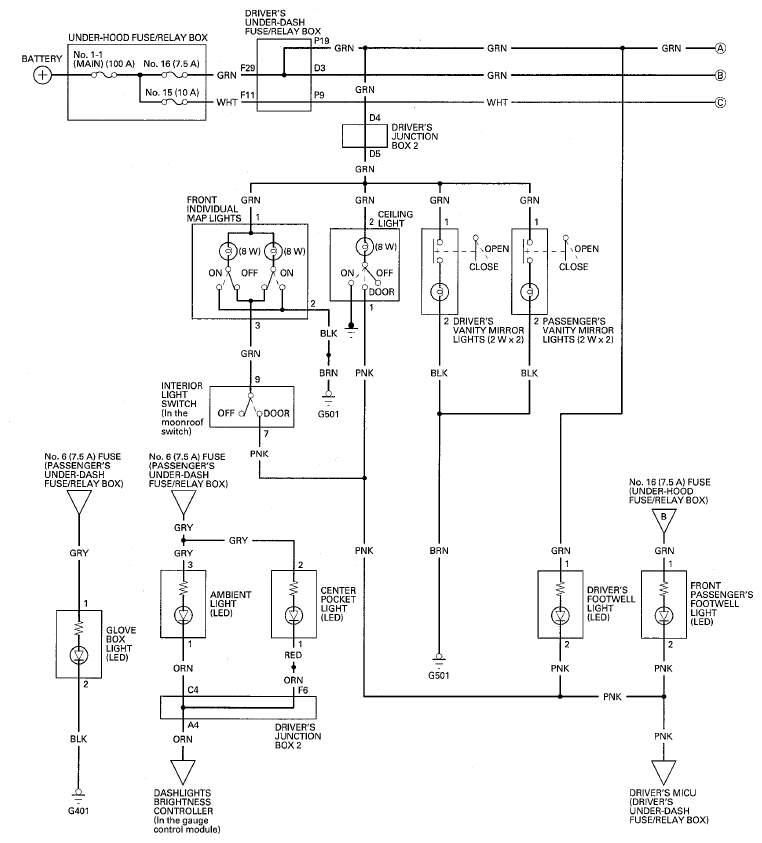

Fig 3: Identifying Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 4: Identifying Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
