System Diagnostic Mode: Version

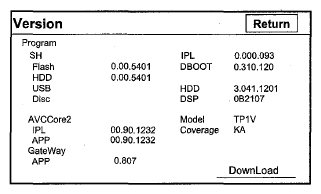

This screen displays the current version information for the navigation system software. In addition, this screen allows the loading of updated software if requested by the factory, or instructed by a service bulletin. Software may be loaded from a DVD or a USB device.
- Flash: Displays the version of the navigation software in memory.
- HDD: Displays the version of the navigation software in the navigation HDD.
- USB: If displayed, this value represents the version of the USB software in the USB device.
- Disc: If displayed, this value represents the version of the navigation software on the navigation DVD.
- DSP: Displays the version of the DSP firmware.
- IPL, APP, DBOOT, HDD, and DSP, are all for factory use.
- Model: For this model, the field should begin with TP1.
- Download: Do not touch, unless instructed by the factory or any other official Honda service information (like a service bulletin).
Check any official Honda service website for more service information about the navigation system.
