Audio Unit Connector for Inputs and Outputs (with ELS audio)

NOTE: Refer to the navigation system section for audio-navigation unit connector G, H, and J inputs and outputs (see NAVIGATION UNIT CONNECTOR FOR INPUTS AND OUTPUTS ).

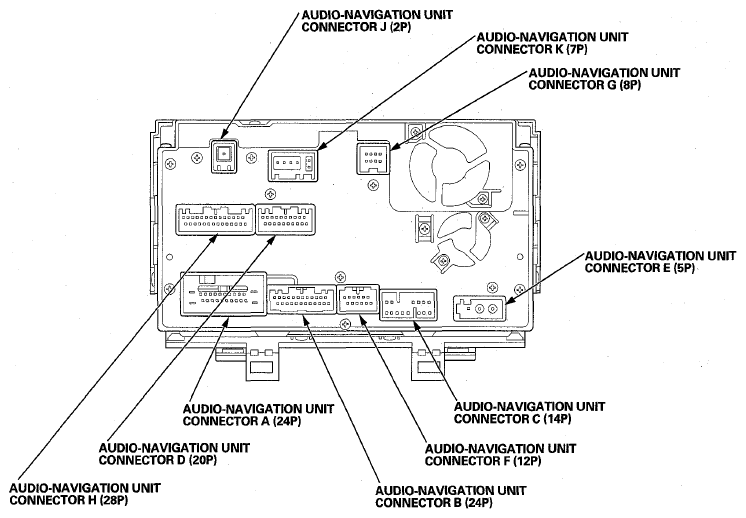

Fig 1: Identifying Audio Unit Connectors - With ELS Audio

Courtesy of AMERICAN HONDA MOTOR CO., INC.
