Circuit Diagram
Circuit Diagram

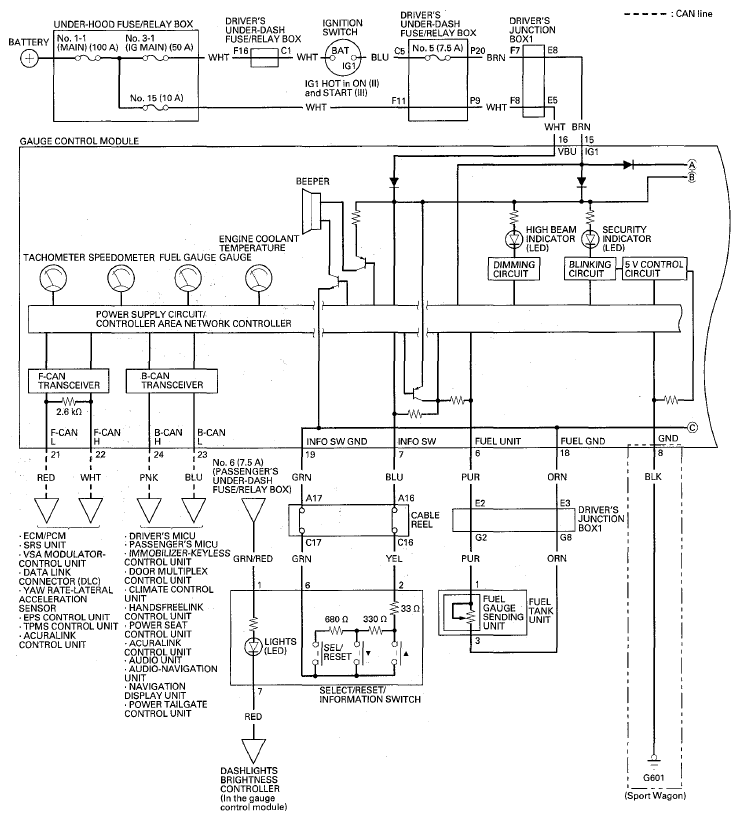

Fig 1: Ignition Switch Circuit Diagram (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

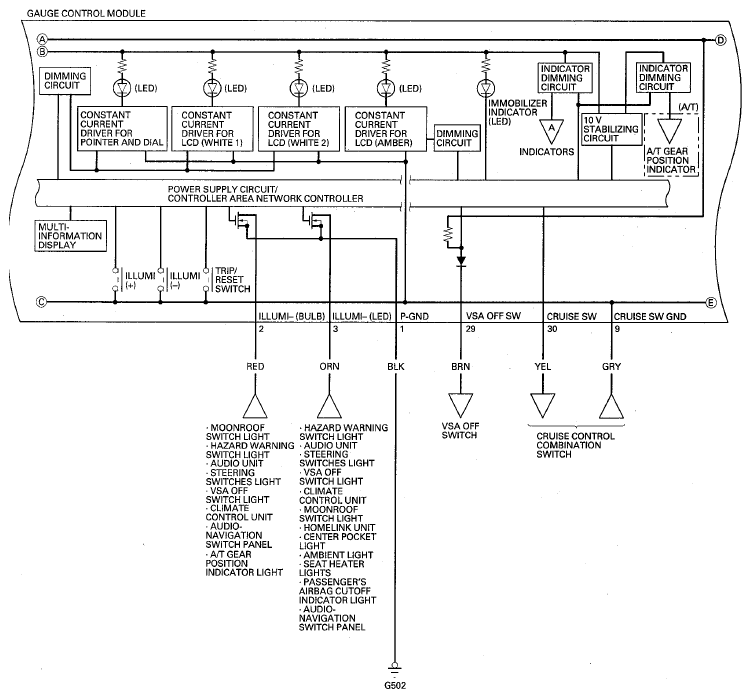

Fig 2: Ignition Switch Circuit Diagram (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

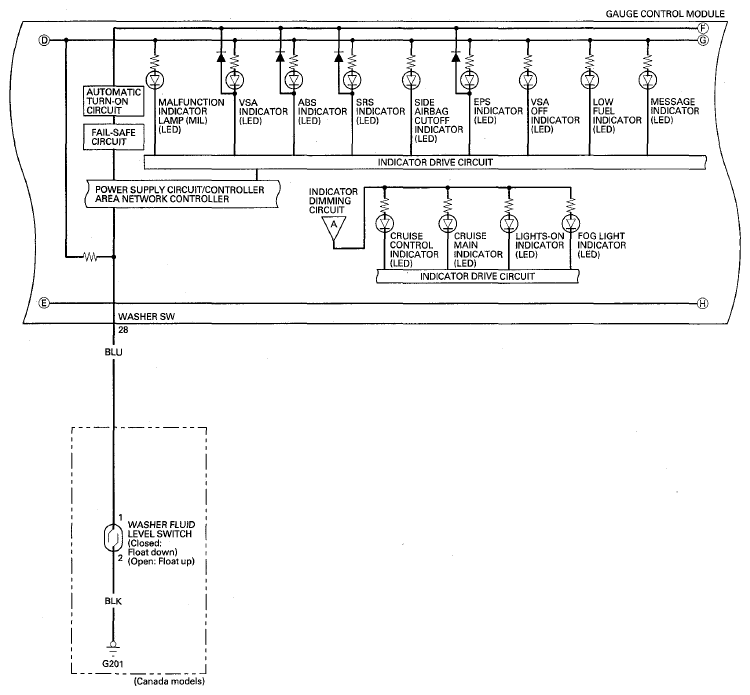

Fig 3: Ignition Switch Circuit Diagram (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

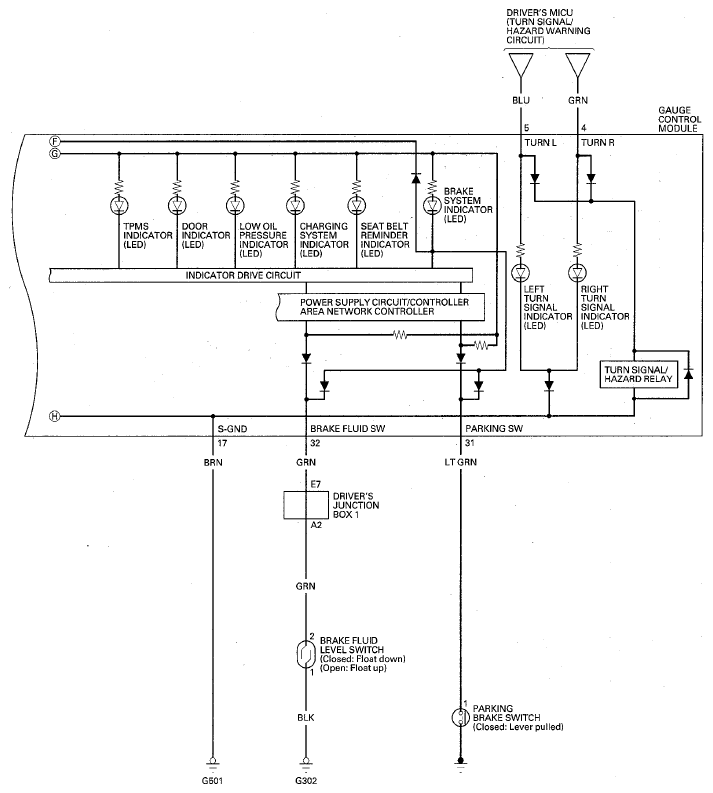

Fig 4: Ignition Switch Circuit Diagram (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
