Sport Wagon

  1. Remove the covers (A) and two bolts from the
    Fig 1: Identifying Covers (A) (Sport Wagon)
    G07770515Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Carefully slide and pull out the taillight (A).

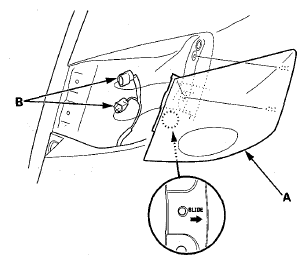

    Fig 2: Identifying Taillight (A) And Connectors (B)
    G07770516Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connectors (B) from the taillight.
  4. Install the light in the reverse order of removal.
