Sport Wagon

  1. Remove the tailgate spoiler trim cover and tailgate upper trim panel (see REAR FLOOR LID HANDLE ).
  2. Remove the cover (A).

    High Mount Brake Light: LED

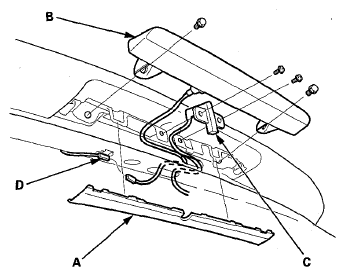

    Fig 1: Identifying Cover (A), High Mount Brake Light (B) And Rear Window Washer Nozzle (C)
    G07770522Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two screws from the high mount brake light (B).
  4. Remove the two screws from rear window washer nozzle (C).
  5. Disconnect the 2P connector (D) from the high mount brake light.
  6. Install the light in the reverse order of removal.
