Sport Wagon

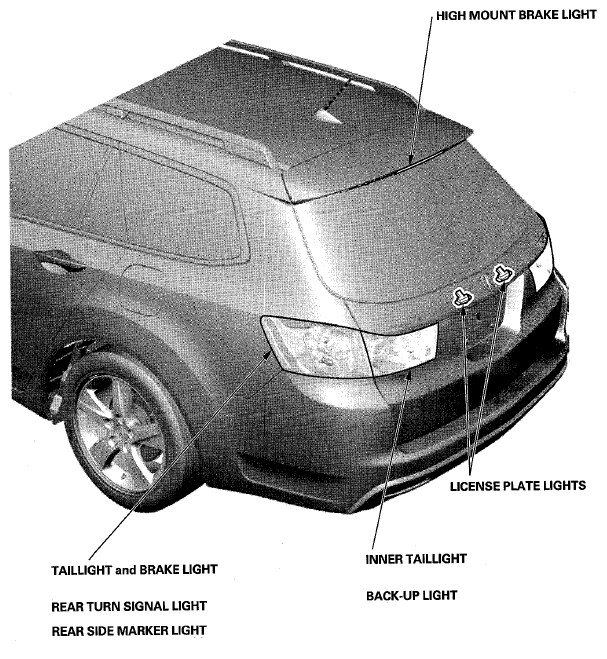

Fig 1: Identifying Exterior Lights Component Location (Sport Wagon)
G07770461Courtesy of AMERICAN HONDA MOTOR CO., INC.

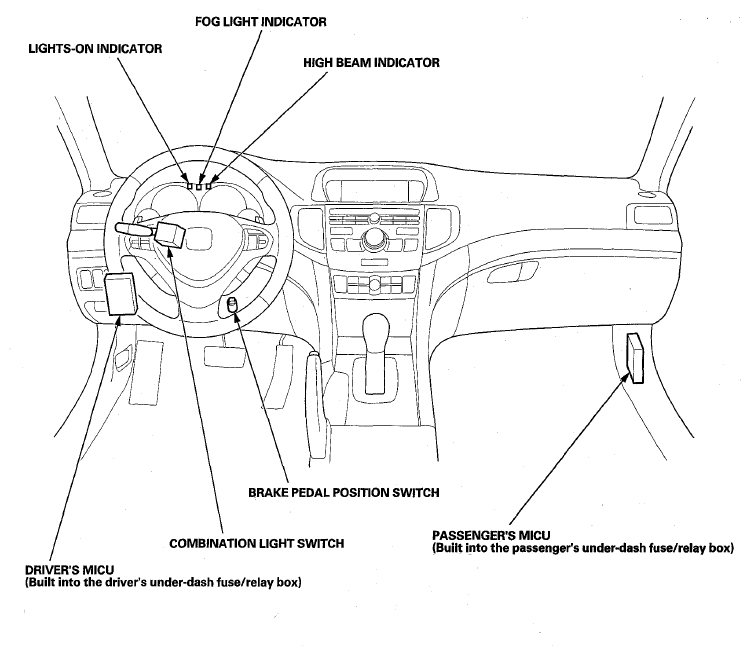

Fig 2: Identifying Exterior Lights Component Location (Sport Wagon)
G07770462Courtesy of AMERICAN HONDA MOTOR CO., INC.
