Exterior Lights (4-CYL)
>>
Circuit Diagram
Circuit Diagram

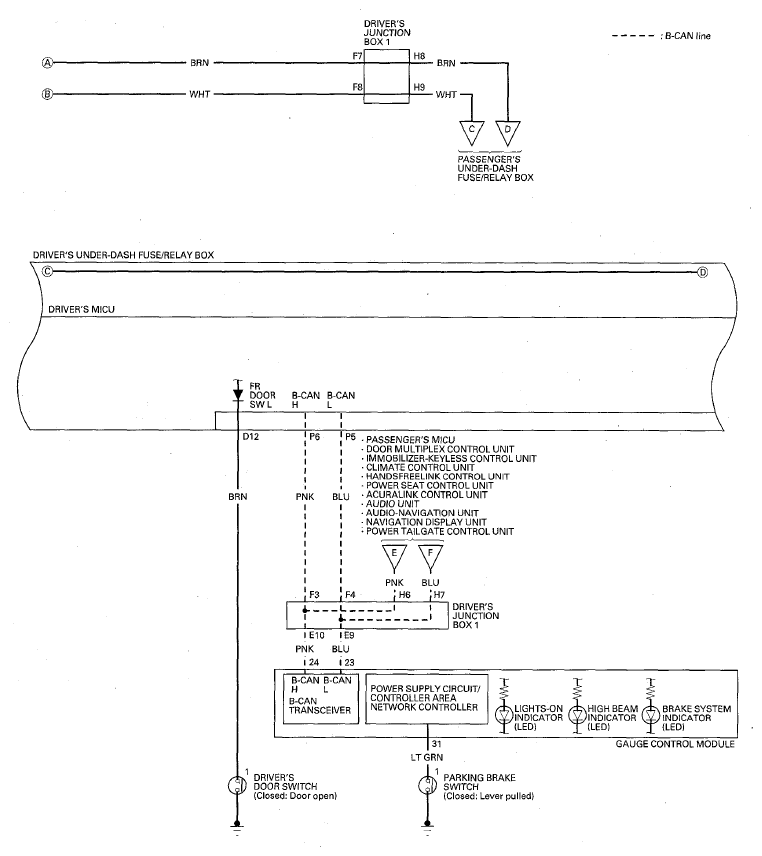

Fig 1: Exterior Lights Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

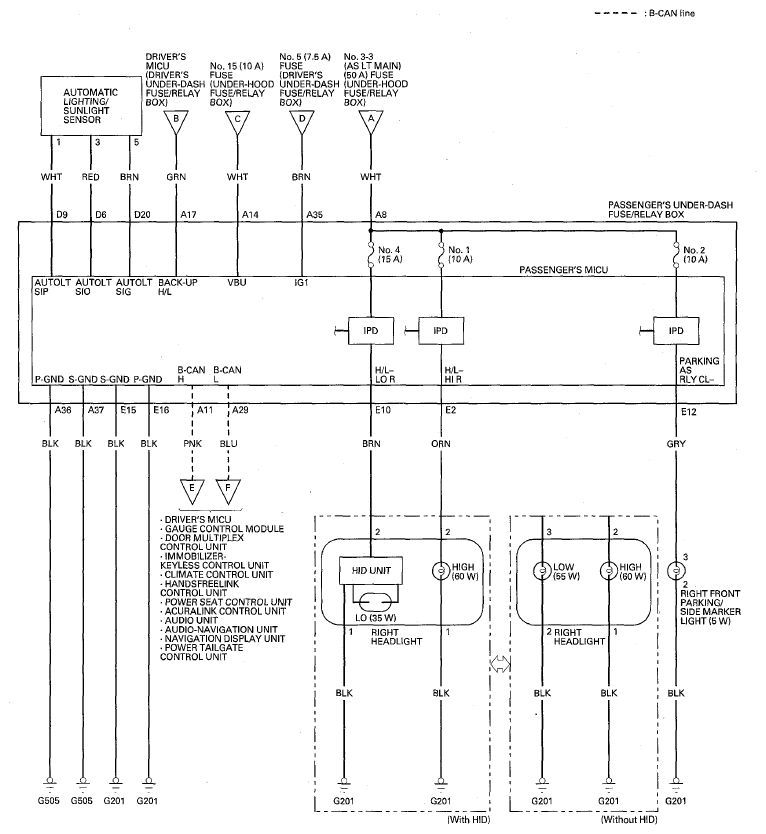

Fig 2: Exterior Lights Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

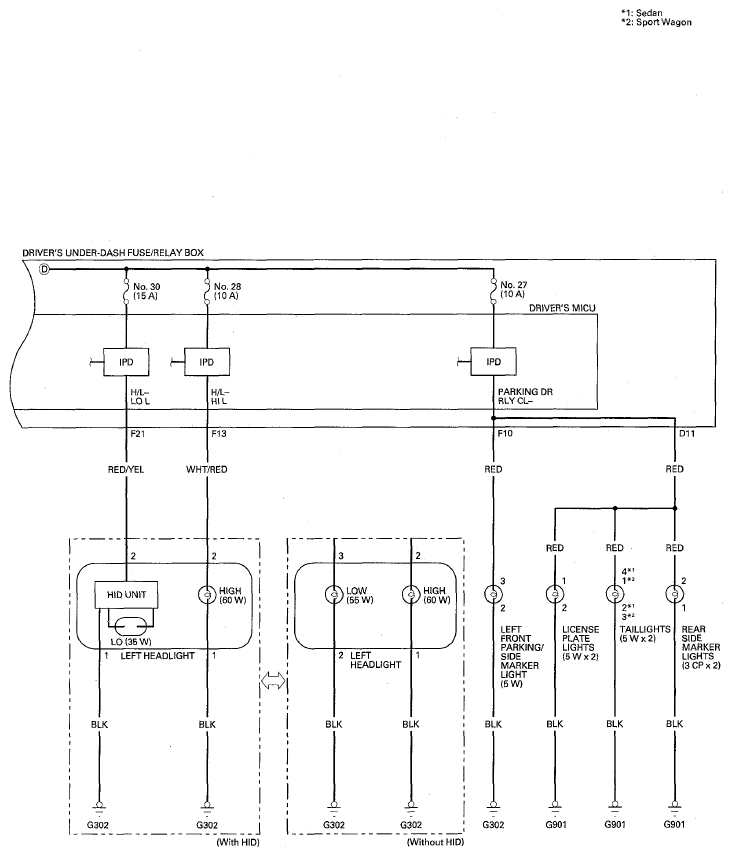

Fig 3: Exterior Lights Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

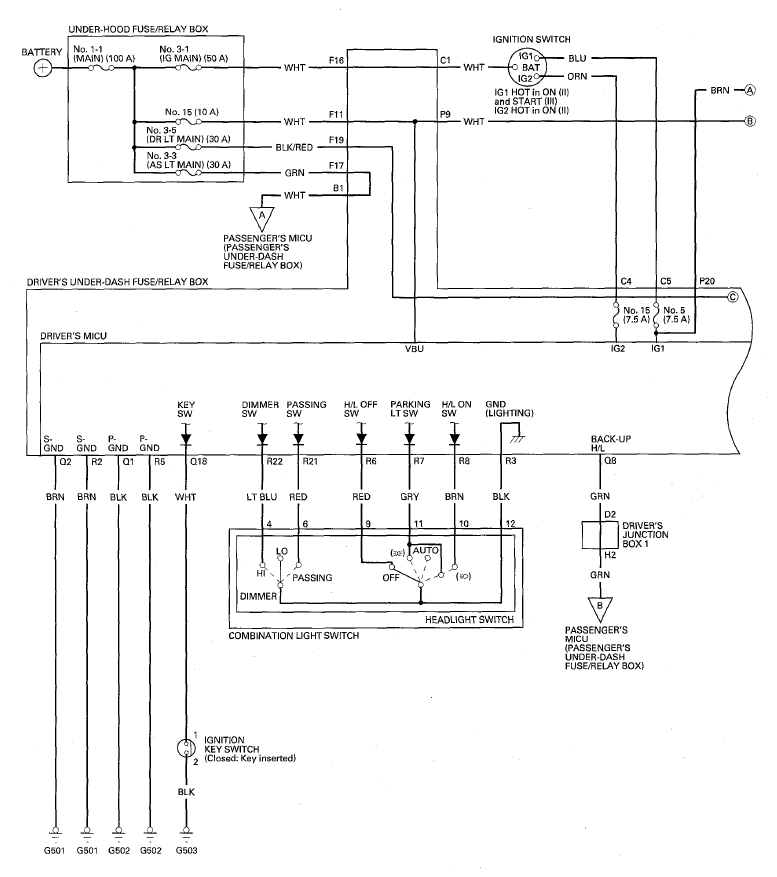

Fig 4: Exterior Lights Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
