Circuit Diagram - Fog Lights

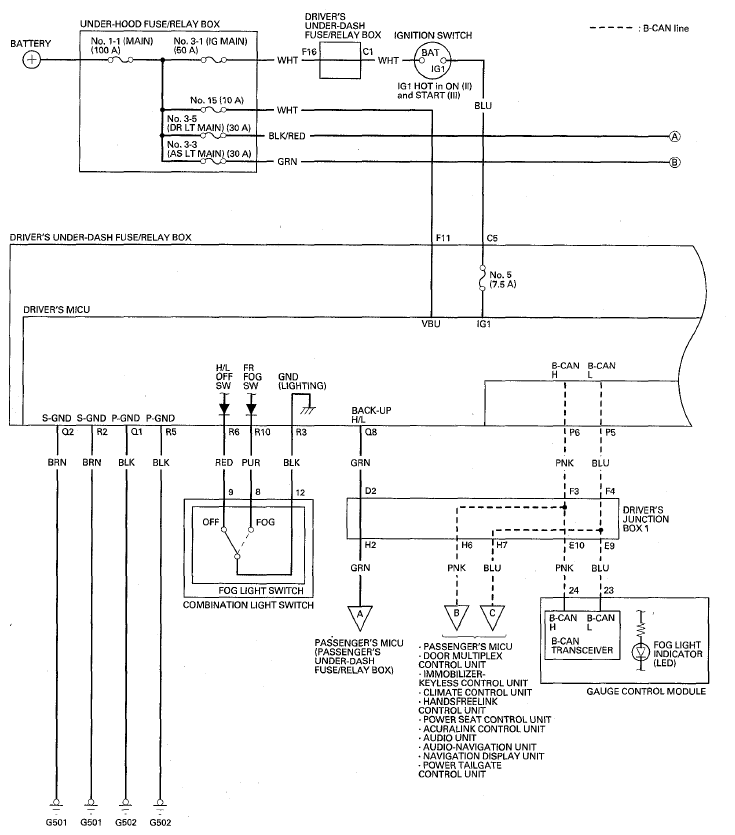

Fig 1: Circuit Diagram Of Fog Lights (2 Of 1)
G07770469Courtesy of AMERICAN HONDA MOTOR CO., INC.

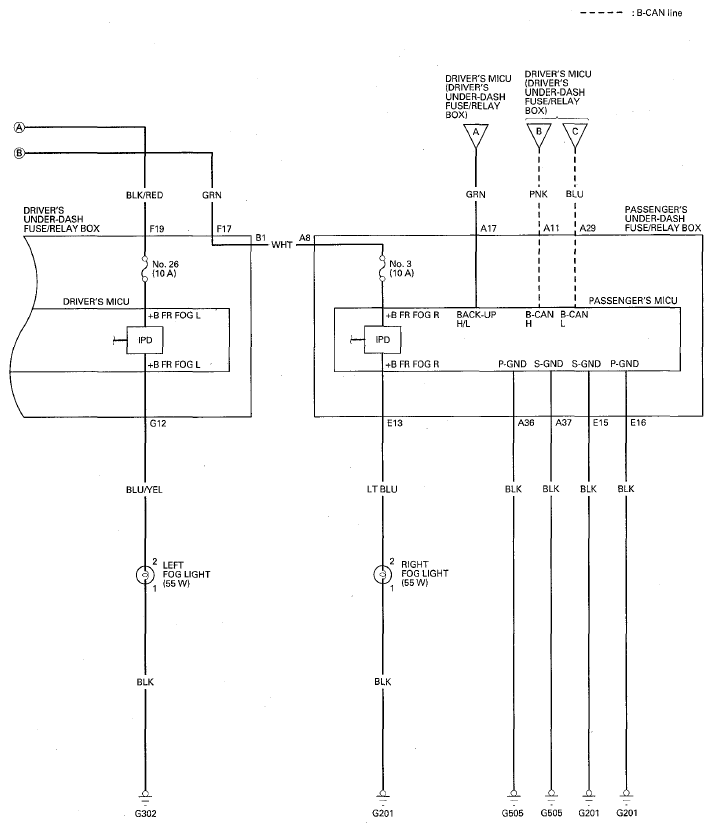

Fig 2: Circuit Diagram Of Fog Lights (2 Of 2)
G07770470Courtesy of AMERICAN HONDA MOTOR CO., INC.
