Circuit Diagram - Brake Lights

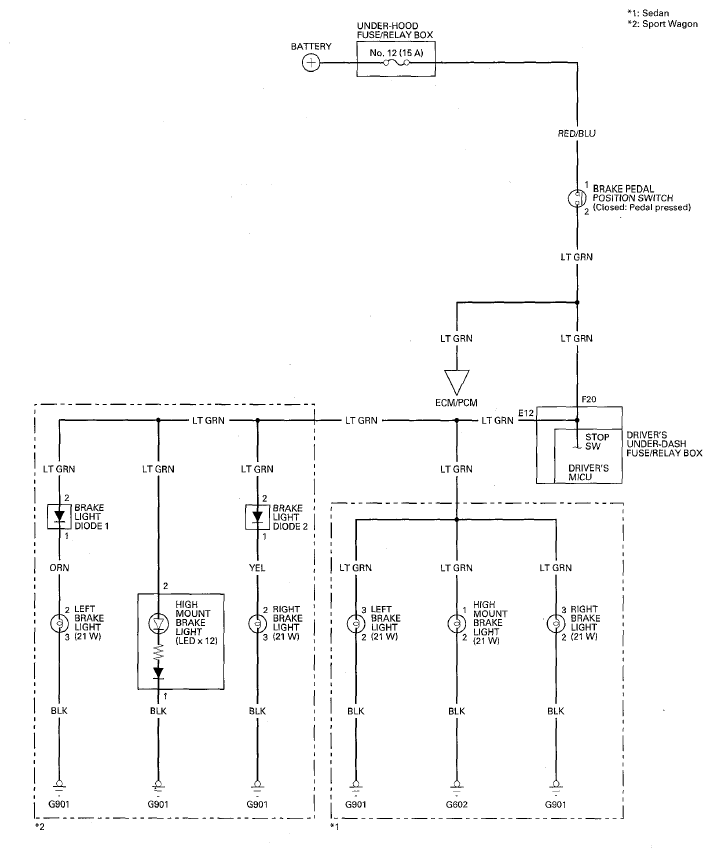

Fig 1: Circuit Diagram Of Brake Lights

G07770468

Courtesy of AMERICAN HONDA MOTOR CO., INC.
