Circuit Diagram - Back-up Lights

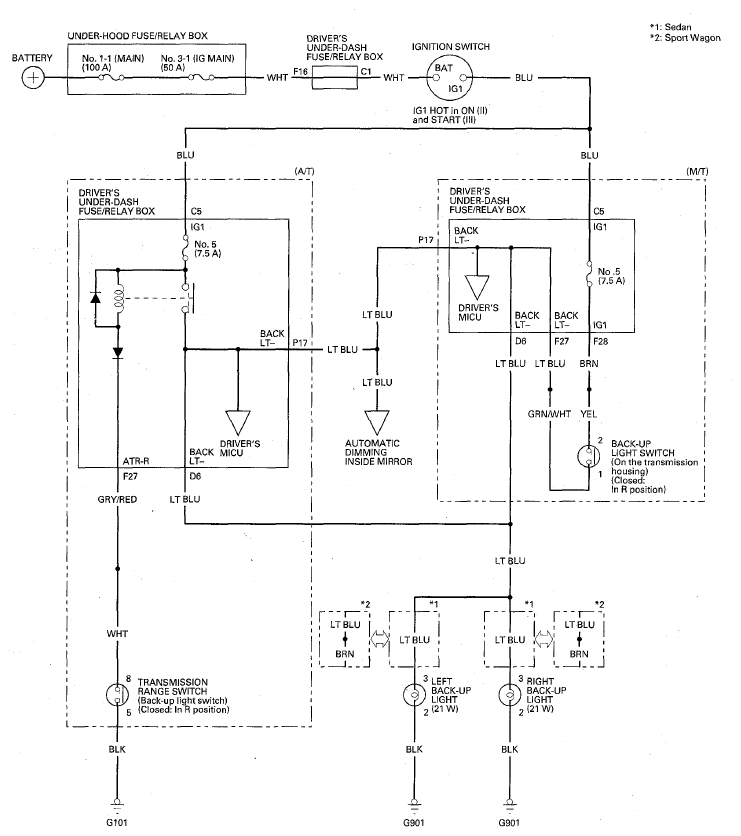

Fig 1: Circuit Diagram Of Back-Up Lights

G07770467

Courtesy of AMERICAN HONDA MOTOR CO., INC.
