Taillight (Sport Wagon)

  1. Remove the taillight assembly (see FOG LIGHT ADJUSTMENT ).
  2. Disconnect the connectors (A) from the light.

    Brake Light/Taillight: 21/5 W

    Rear Turn Signal Light: 21 W

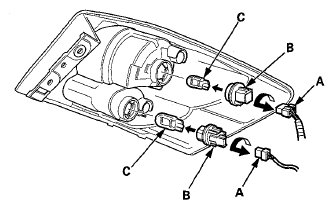

    Fig 1: Identifying Connectors (A), Bulb Sockets (B) And Bulbs (C)
    G07770508Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Turn the bulb sockets (B) 45° counterclockwise to remove the bulbs (C).
  4. Install new bulb(s) in the reverse order of removal.
