Inner Taillight (Sport Wagon)

  1. Remove the maintenance lid (A), disconnect the connectors (B) from the light.

    Inner Taillight: 5 W

    Back-Up Light: 21 W

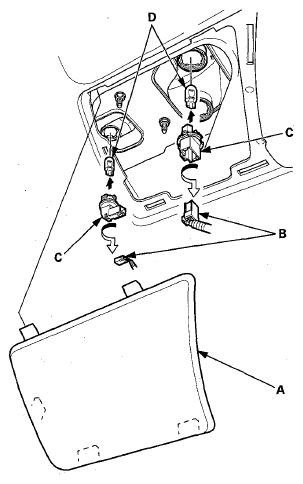

    Fig 1: Identifying Maintenance Lid (A), And Connectors (B)
    G07770510Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the bulb sockets (C) 45° counterclockwise to remove the bulbs (D).
  3. Install new bulb(s) in the reverse order of removal.
