Slave Cylinder Replacement: Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clutch line bracket (A) and the slave cylinder (B).

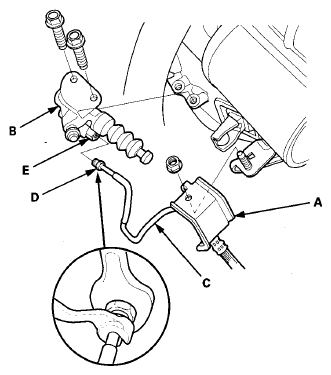

    Fig 1: Identifying Clutch Line Bracket And Slave Cylinder
    G08069971Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the clutch line (C) from the slave cylinder. To prevent spills, cover the line joint with rags or clean shop towels.
    NOTE: Loosen the flare nut (D) while holding the clutch line connector (E) using a wrench.
  3. Pull back the boot (A), and apply silicone grease (P/N 08C30-B0234M) to the boot and slave cylinder. Reinstall the boot.

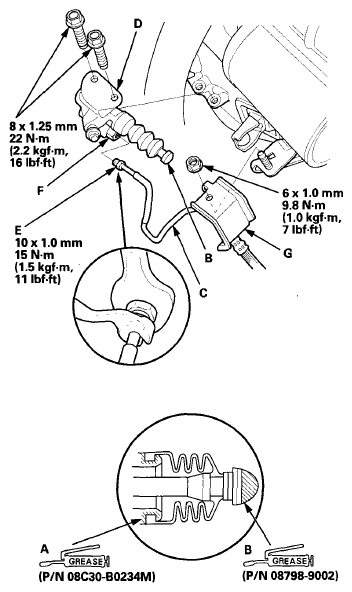

    Fig 2: Boot, Push Rod, Clutch Line, Slave Cylinder, Flare Nut And Clutch Line Connector With Torque Specifications
    G08069972Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Apply a light coat of super high temp urea grease (P/N 08798-9002) to the push rod (B) of the slave cylinder.
  5. Connect the clutch line (C) to the slave cylinder (D), and tighten the flare nut (E).
    NOTE: Tighten the flare nut while holding the clutch line connector (F) using a wrench.
  6. Install the slave cylinder and the clutch line bracket (G).
  7. Bleed the CLUTCH HYDRAULIC SYSTEM .
  8. Check the clutch operation and check for leaks.
  9. Test-drive the vehicle.
