Clutch Pedal Assembly Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  2. Disconnect the clutch pedal position switch A connector (C) and the clutch pedal position switch B connector (D).
    Fig 1: Identifying Clutch Pedal Assembly And Related Components
    G08069956Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Pry out the lock pin (E), and pull the clevis pin (F) out of the clevis.
  4. Remove the master cylinder mounting nuts (G) and the clutch pedal mounting bolt (H).
  5. Remove the clutch pedal assembly (I).
  6. Remove clutch pedal position switch A and clutch pedal position switch B.
  7. Loosely install clutch pedal position switch A and clutch pedal position switch B.
    Fig 2: Identifying Clutch Pedal Position Switch A And B
    G08069957Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the clutch pedal assembly (A).

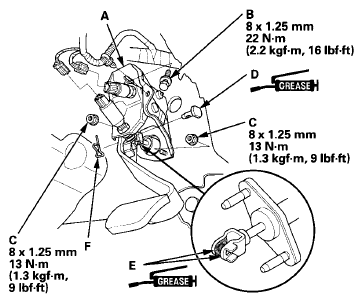

    Fig 3: Clutch Pedal Assembly, Mounting Bolts And Nuts, Clevis Pin, Lock Pin And Mating Surfaces With Torque Specifications
    G08069958Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the clutch pedal mounting bolt (B) and the master cylinder mounting nuts (C).
  10. Apply multipurpose grease to the clevis pin (D), and the mating surfaces (E) of the clevis and the pedal. Slide the clevis pin into the clevis, then install the lock pin (F).
  11. Adjust the clutch pedal, CLUTCH PEDAL POSITION SWITCH B, AND CLUTCH PEDAL POSITION SWITCH A .
    NOTE: Connect the switch connectors after adjusting them.
  12. Check the clutch operation.
  13. Reinstall the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
