Clutch Master Cylinder Replacement

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Use fender covers to avoid damaging painted surfaces.
  • Do not spill brake fluid on the vehicle; it may damage the paint or plastic. If brake fluid does contact the paint or plastic, wash it off immediately with water.
  1. Remove and discard the brake fluid from the clutch reservoir with a syringe or other suitable device.
  2. Remove the clutch reservoir (A).
    Fig 1: Identifying Clutch Reservoir
    G08069959Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the clutch line (A) from the clutch master cylinder (B). To prevent spills, cover the line joint with rags or clean shop towels.
    NOTE: Loosen the flare nut (C) while holding the clutch line connector (D) using a wrench.
    Fig 2: Identifying Clutch Line, Clutch Master Cylinder, Flare Nut And Clutch Line Connector
    G08069960Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  5. Pry out the lock pin (A), and pull the clevis pin (B) out of the clevis. Remove the master cylinder mounting nuts (C).
    Fig 3: Identifying Lock Pin, Clevis Pin And Master Cylinder Mounting Nuts
    G08069961Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the clutch master cylinder (A) and the clutch master cylinder seal (B).

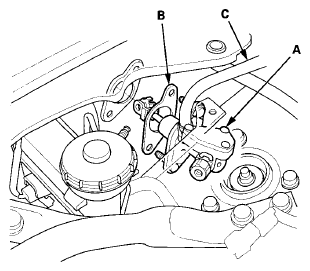

    Fig 4: Identifying Clutch Master Cylinder And Seal
    G08069962Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Disconnect the reservoir hose (C).
    NOTE: Inspect the hose. If the hose has damage, leaks, interference, or twisting, replace it.
  8. Remove the retaining clip (A), then remove the clutch line connector (B) and the O-ring (C) from the master cylinder (D).
    Fig 5: Identifying Retaining Clip, Clutch Line Connector, O-Ring And Master Cylinder
    G08069963Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the clutch line connector (A) with a new O-ring (B), then set in a new retaining clip (C) to the master cylinder (D).
    NOTE:
    • Apply silicone grease (P/N 08C30-B0234M) on the O-ring and the joint part (E) of the clutch line connector.
    • Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.
    Fig 6: Identifying Clutch Line Connector, O-Ring, Retaining Clip And Master Cylinder
    G08069964Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. To prevent the retaining clip (A) from coming off, pry apart the tip (B) of the clip with a screwdriver.
    Fig 7: Identifying Retaining Clip And Clip Tip
    G08069965Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Connect the reservoir hose, and adjust the hose clamp (A) positions and its direction.
    NOTE: When attaching the reservoir hose, align the yellow mark on the hose to the rib on reservoir connection area, and the blue mark on the hose to the rib on the clutch master cylinder connection area.
    Fig 8: Identifying Hose Clamp
    G08069966Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Install a new clutch master cylinder seal (A) and the clutch master cylinder (B).

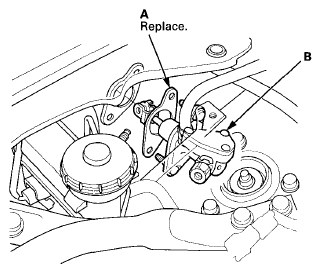

    Fig 9: Identifying Clutch Master Cylinder And Seal
    G08069967Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Install the master cylinder mounting nuts (A).

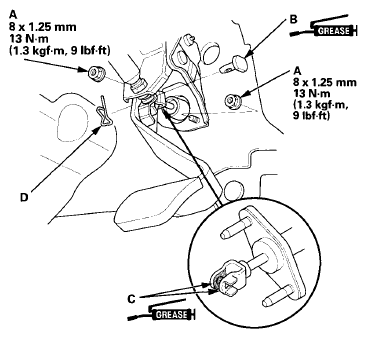

    Fig 10: Mounting Nuts, Clevis Pin, Mating Surfaces And Clutch Line Connector With Torque Specifications
    G08069968Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Apply multipurpose grease to the clevis pin (B), and the mating surfaces (C) of the clevis and the pedal. Slide the clevis pin into the clevis, then install the lock pin (D).
  15. Connect the clutch line (A) to the clutch master cylinder (B).
    NOTE: Tighten the flare nut (C) while holding the clutch line connector (D) using a wrench.

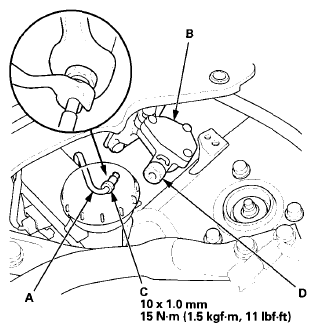

    Fig 11: Clutch Line, Clutch Master Cylinder, Flare Nut And Clutch Line Connector And Wrench With Torque Specifications
    G08069969Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Install the clutch reservoir (A).

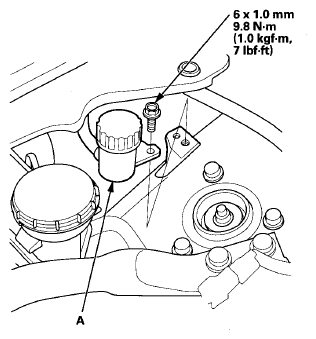

    Fig 12: Clutch Reservoir With Torque Specifications
    G08069970Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Bleed the CLUTCH HYDRAULIC SYSTEM .
  18. Adjust the clutch pedal, CLUTCH PEDAL POSITION SWITCH B, AND CLUTCH PEDAL POSITION SWITCH A .
  19. Check the clutch operation and check for leaks.
  20. Reinstall the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  21. Test-drive the vehicle.
