Clutch Hose Replacement

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Replace the clutch hose if it is twisted, cracked, or if it leaks.
  • Use fender covers to avoid damaging painted surfaces.
  • Do not spill brake fluid on the vehicle; it may damage the paint or plastic. If brake fluid does contact the paint or plastic, wash it off immediately with water.
  1. Remove the air intake duct splash separator (A).

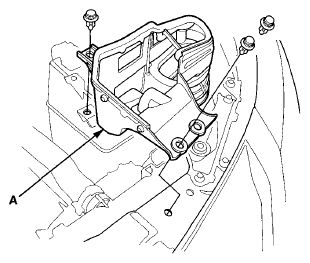

    Fig 1: Identifying Air Intake Duct Splash Separator
    G08069975Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  3. Remove the harness clamps (A), then remove the battery base (B).
    Fig 2: Identifying Harness Clamps And Battery Base
    G08069976Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the clutch hose (A) from the clutch lines (B).
    Fig 3: Identifying Clutch Hose And Clutch Lines
    G08069977Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove and discard the clutch hose clips (A) from the clutch hose (B).
    Fig 4: Identifying Clutch Hose Clips And Clutch Hose
    G08069978Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the clutch hose from the clutch hose brackets.
  7. Install the clutch hose (A) into the clutch hose brackets with the new clutch hose clips (B).
    Fig 5: Identifying Clutch Hose And Clips
    G08069979Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Connect the clutch lines (A) to the clutch hose (B).
    Fig 6: Clutch Lines And Clutch Hose With Torque Specifications
    G08069980Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Bleed the CLUTCH HYDRAULIC SYSTEM .
  10. Do the following checks:
    • Check the clutch hose and line joint for leaks, and tighten if necessary.
    • Check the clutch hose for interference and twisting.
  11. Install the battery base (A) and the harness clamps (B).

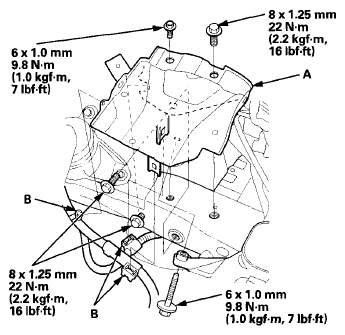

    Fig 7: Battery Base And Harness Clamps With Torque Specifications
    G08069981Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
  13. Install the air intake duct splash separator (A).

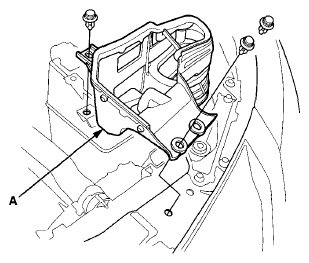

    Fig 8: Identifying Air Intake Duct Splash Separator
    G08069982Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Test-drive the vehicle.
