Reverse Lockout Solenoid Disassembly/Reassembly

WARNING: This page is about a different variant/trim than selected.
NOTE: Use fender covers to avoid damaging painted surfaces.
  1. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  2. Remove the air cleaner assembly (see THROTTLE BODY CLEANING ).
  3. Remove the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
  4. Support the under engine/transmission with a floor jack.
    Fig 1: Supporting Under Engine/Transmission Using Floor Jack
    G08065936Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the upper transmission mount bracket bolts (A).
    NOTE: Do not remove the bolt (B) from the upper transmission mount. If the bolt is removed, the upper transmission mount must be replaced as an assembly.
    Fig 2: Identifying Upper Transmission Mount Bracket Bolts
    G08065937Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Disconnect the ground cable (A), then remove the upper transmission mount bracket (B).
    Fig 3: Identifying Upper Transmission Mount Bracket And Ground Cable
    G08065938Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Disconnect the reverse lockout solenoid connector (A).
    Fig 4: Identifying Reverse Lockout Solenoid, Reverse Lockout Solenoid Connector, Lock Pin And Lock Pin Spring
    G08065939Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the reverse lockout solenoid (B), the select lock pin (C), and the select lock pin spring (D).
  9. Remove the pin (A) and the select lock cam (B).
    Fig 5: Identifying Lock Cam And Pin
    G08065940Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Install the components of the reverse lockout solenoid in the reverse order of removal.
  11. Clean any dirt and oil from the sealing surface of the reverse lockout solenoid and the transmission housing.
  12. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0003, 08718-0004, or 08718-0009 evenly to the transmission housing mating surface of the reverse lockout solenoid. Install the component within 5 minutes of applying the liquid gasket.
    NOTE:
    • If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
      Fig 6: Identifying Transmission Housing Mating Surface
      G08065941Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Install the select lock pin spring (A), the select lock pin (B), and the reverse lockout solenoid (C).
    Fig 7: Lock Pin, Lock Pin Spring, Reverse Lockout Solenoid And Reverse Lockout Solenoid Connector With Torque Specifications
    G08065942Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Connect the reverse lockout solenoid connector (D).
  15. Install the upper transmission mount bracket (A) with new bolts, and connect the ground cable (B).

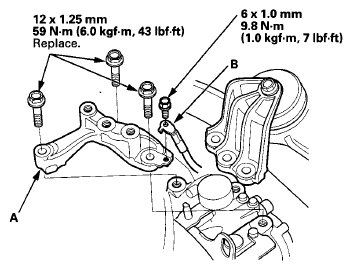

    Fig 8: Upper Transmission Mount Bracket And Ground Cable With Torque Specifications
    G08065943Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Connect the upper transmission mount bracket (A) and the upper transmission mount (B) with new bolts.
    NOTE: If the bolt (C) was loosened by mistake during removal, the upper transmission mount must be replaced as an assembly.

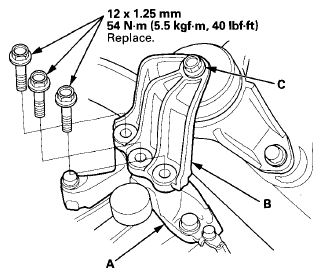

    Fig 9: Upper Transmission Mount Bracket, Upper Transmission Mount And Bolt With Torque Specifications
    G08065944Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Remove the floor jack that support the engine/transmission.
  18. Install the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
  19. Install the air cleaner assembly (see THROTTLE BODY CLEANING ).
  20. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
