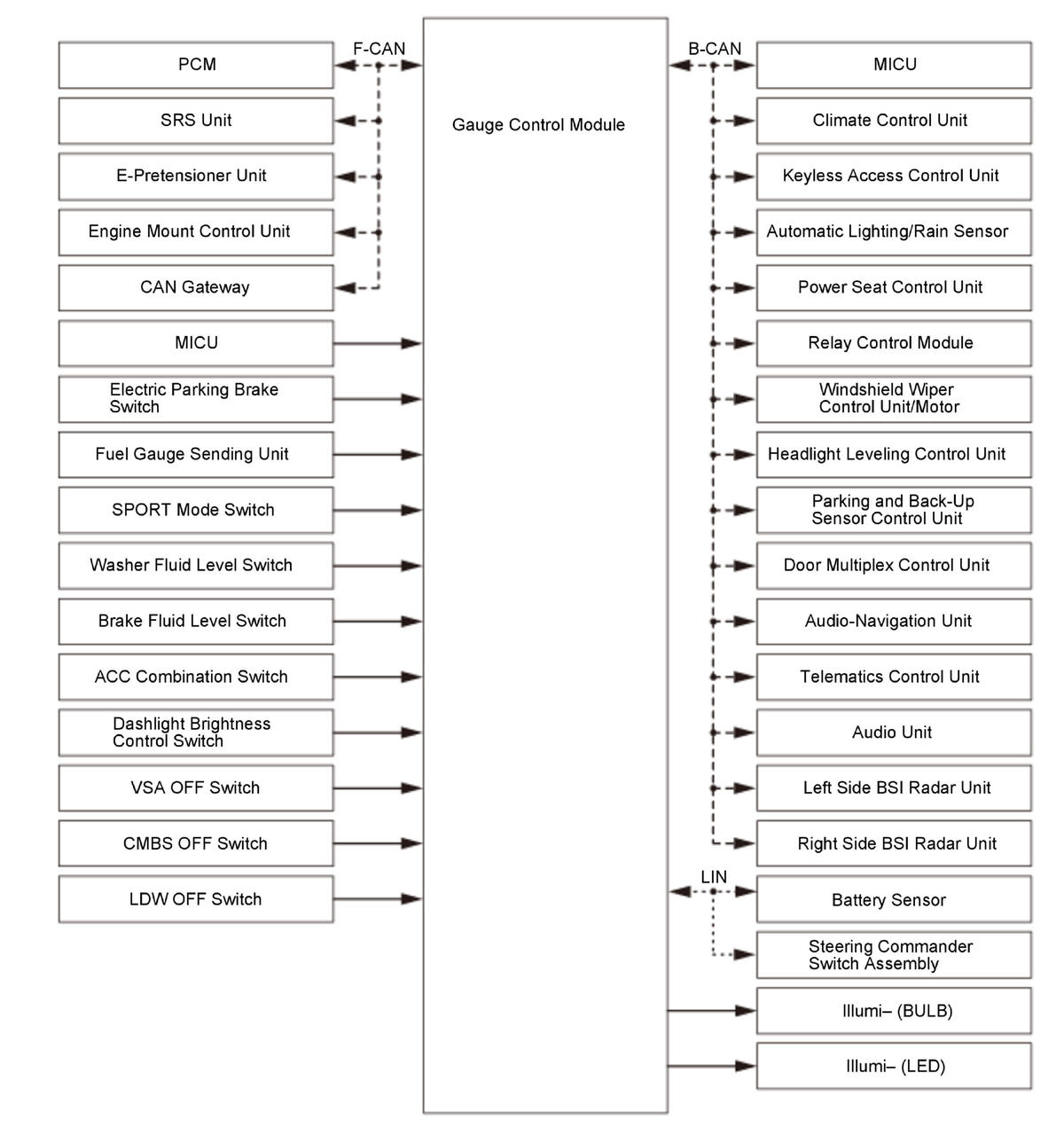

Gauges System Description - System Diagram (KA/KX model)

GHH347414

Courtesy of HONDA, U.S.A., INC.
