Exterior Lights Component Location Index (2014 2015 2016 KX Model)

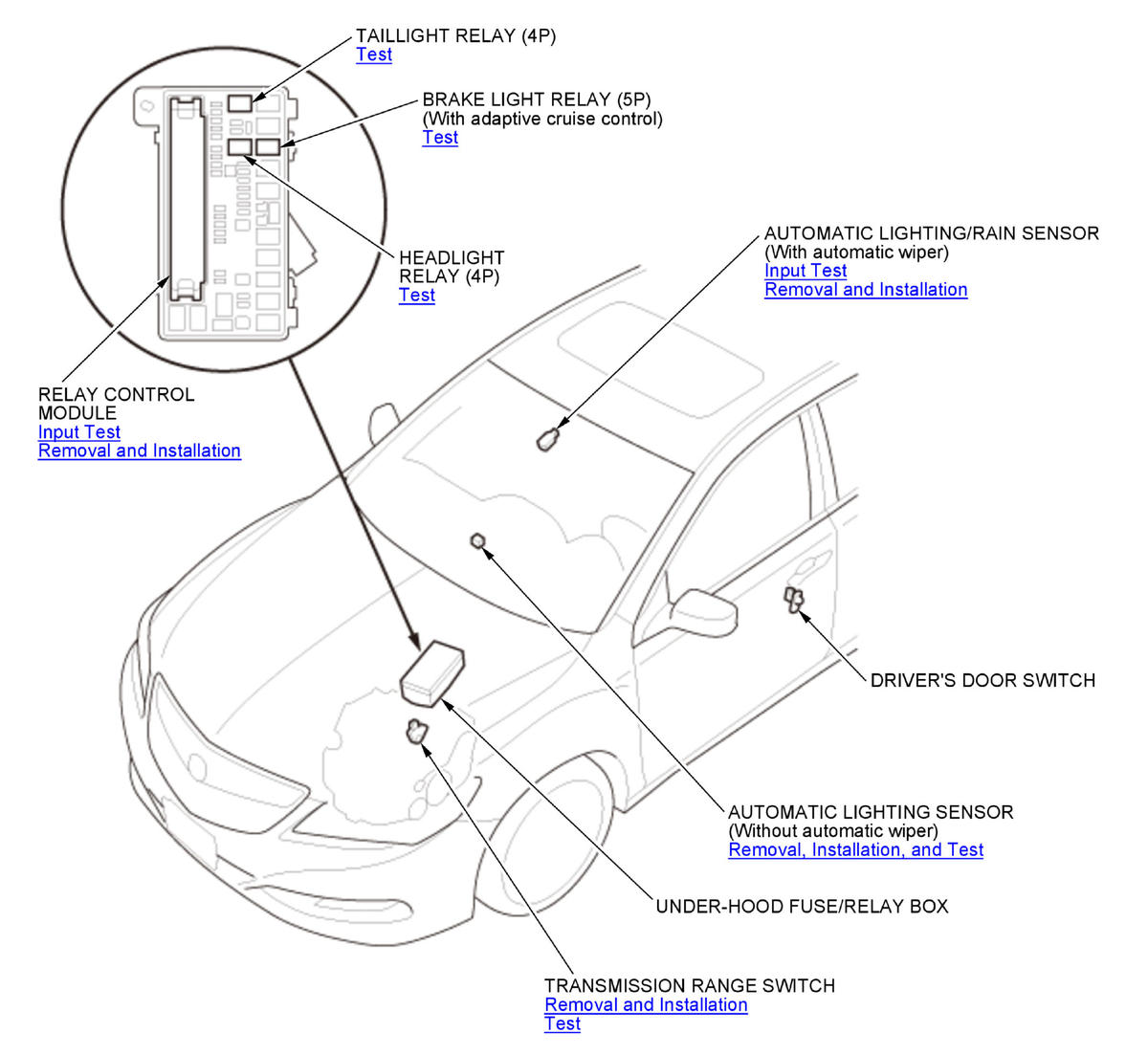

GHH346414

Courtesy of HONDA, U.S.A., INC.

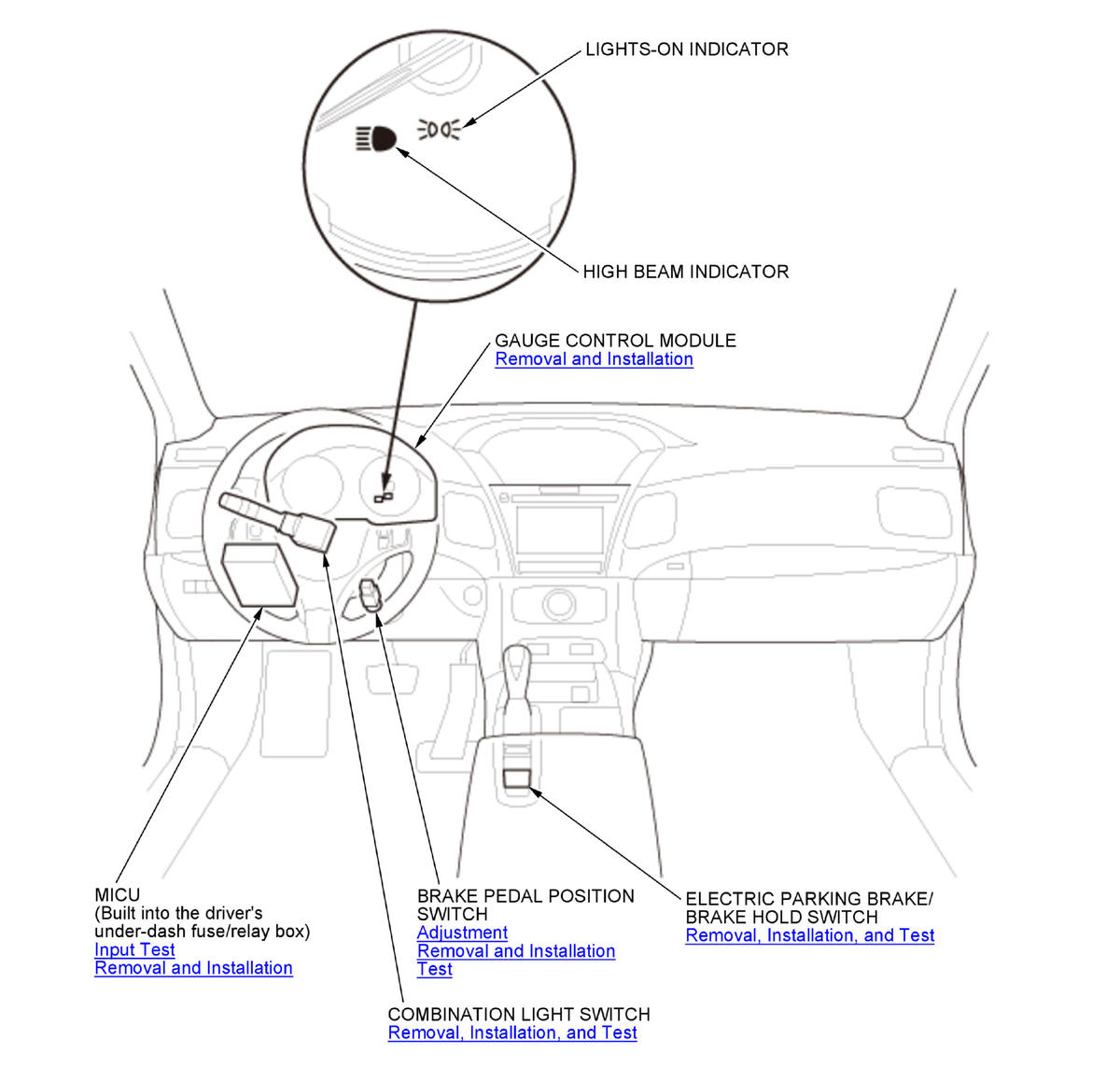

GHH346415

Courtesy of HONDA, U.S.A., INC.

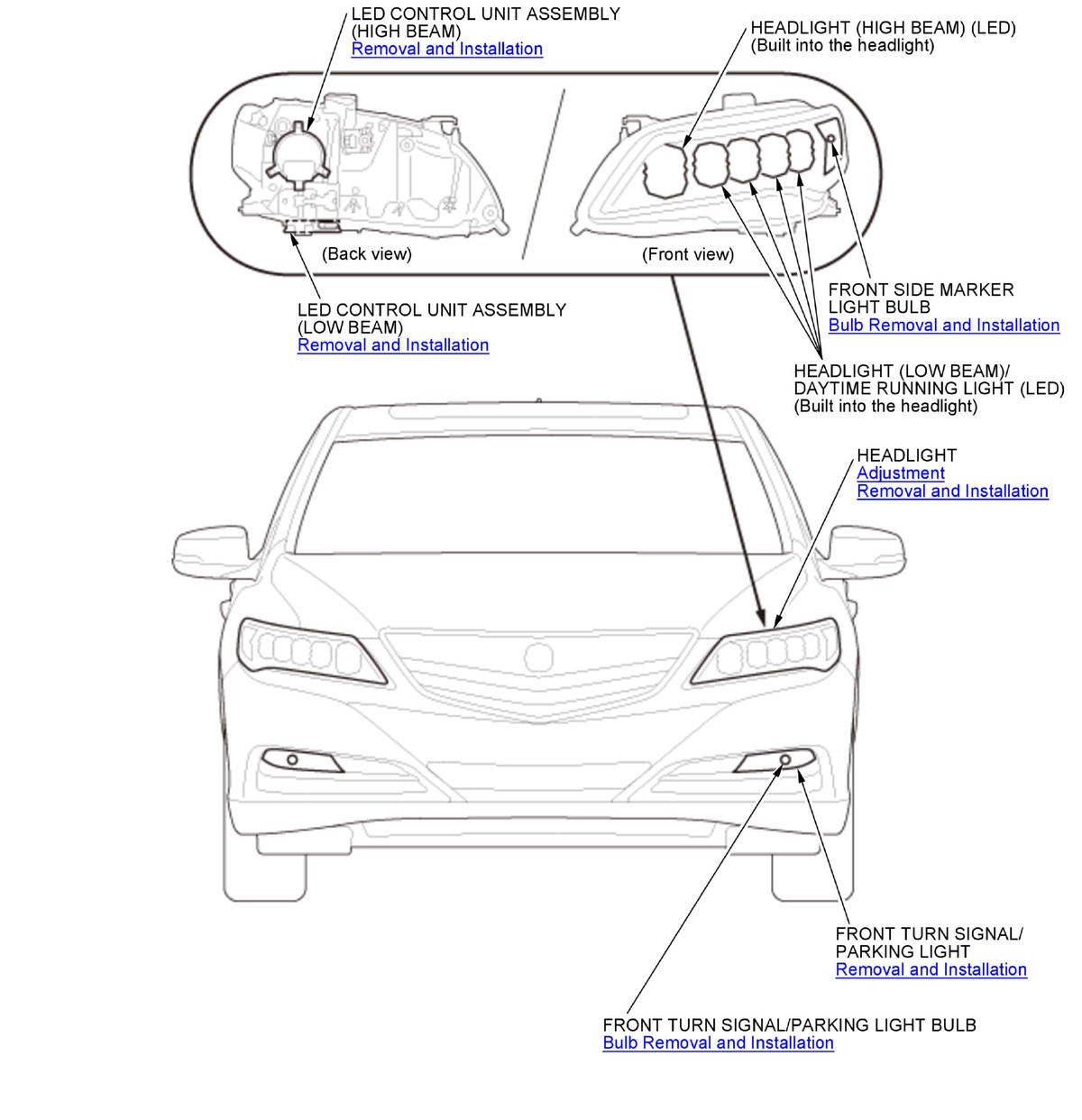

GHH346416

Courtesy of HONDA, U.S.A., INC.

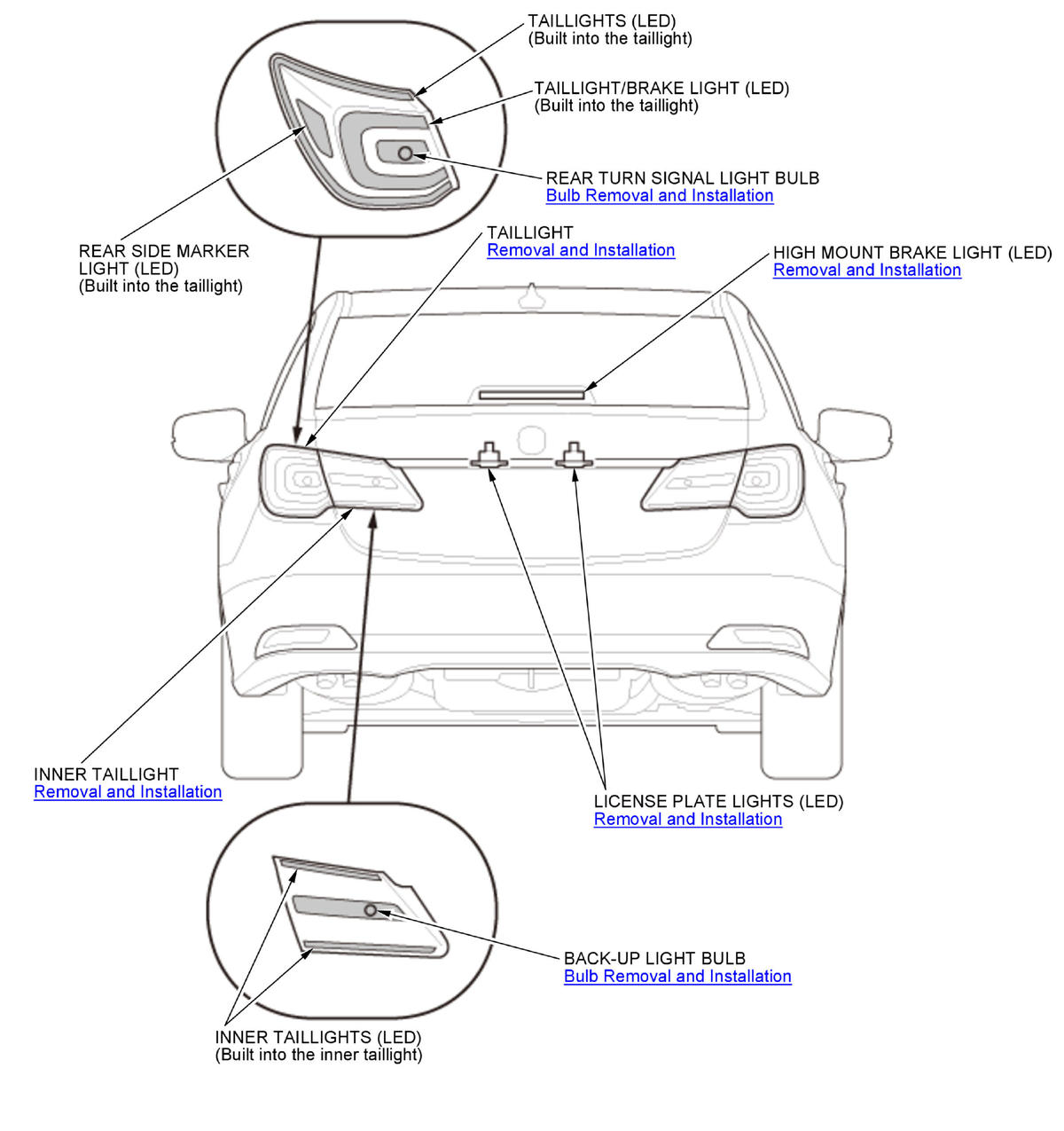

GHH346417

Courtesy of HONDA, U.S.A., INC.
