Home >> Acura >> 2014 >> RLX Base >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Exterior Lighting - Testing & Troubleshooting (Except Hybrid) >> Circuit Diagram >> Headlight Leveling System Circuit Diagram

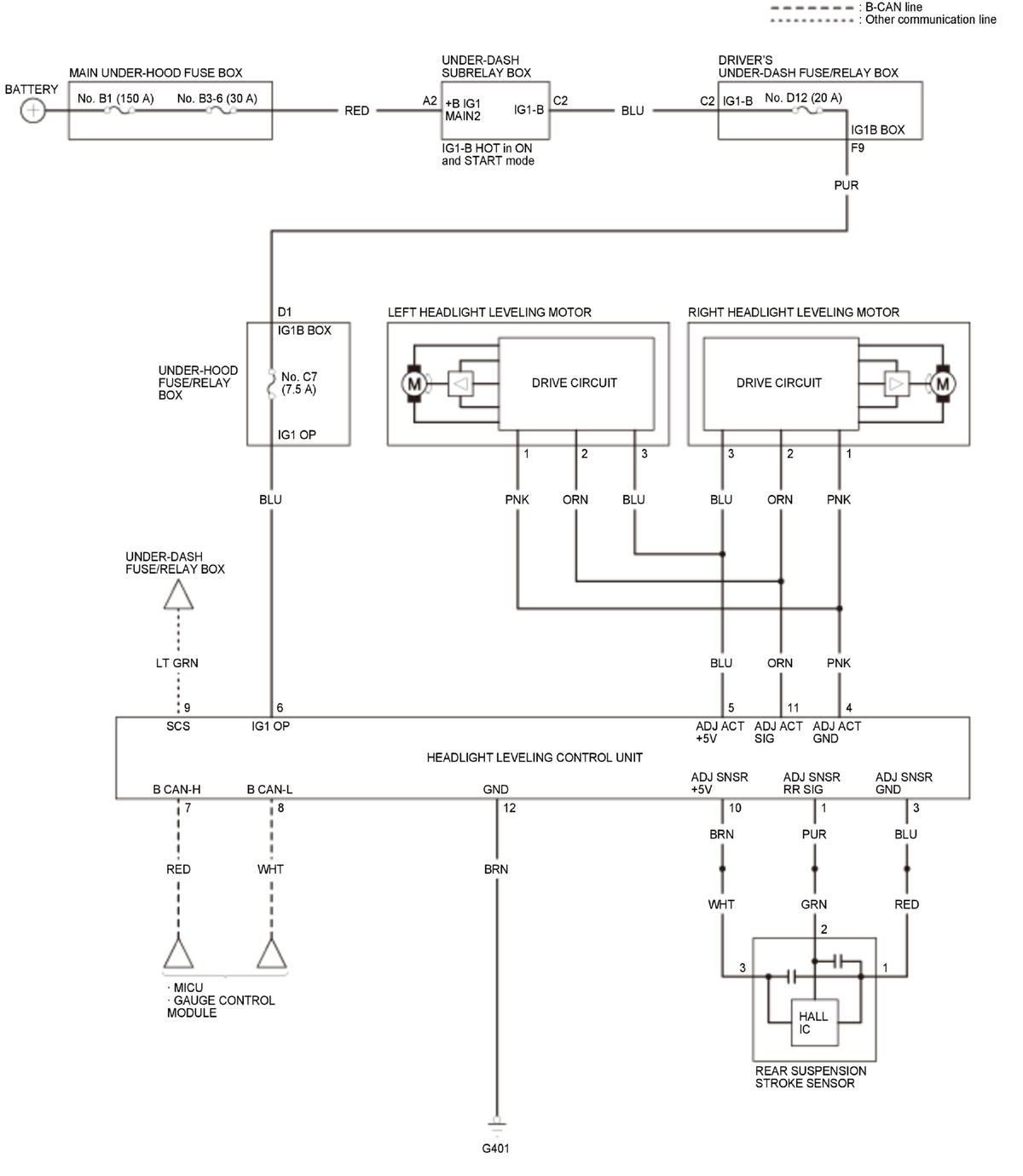

Headlight Leveling System Circuit Diagram

GHH346403

Courtesy of HONDA, U.S.A., INC.
