Shift Lock System Circuit Troubleshooting (2014 2015)

Shift Lock System Circuit Troubleshooting

NOTE: Check for PGM-FI DTCs and A/T DTCs. If any DTCs are present, troubleshoot those first.

PGM-FI System

DTC Description Confirmed DTC Pending DTC Freeze Frame


A/T System

DTC Description Confirmed DTC Pending DTC Freeze Frame


DTC (All DTCs)

  1. Shift lock solenoid operation check

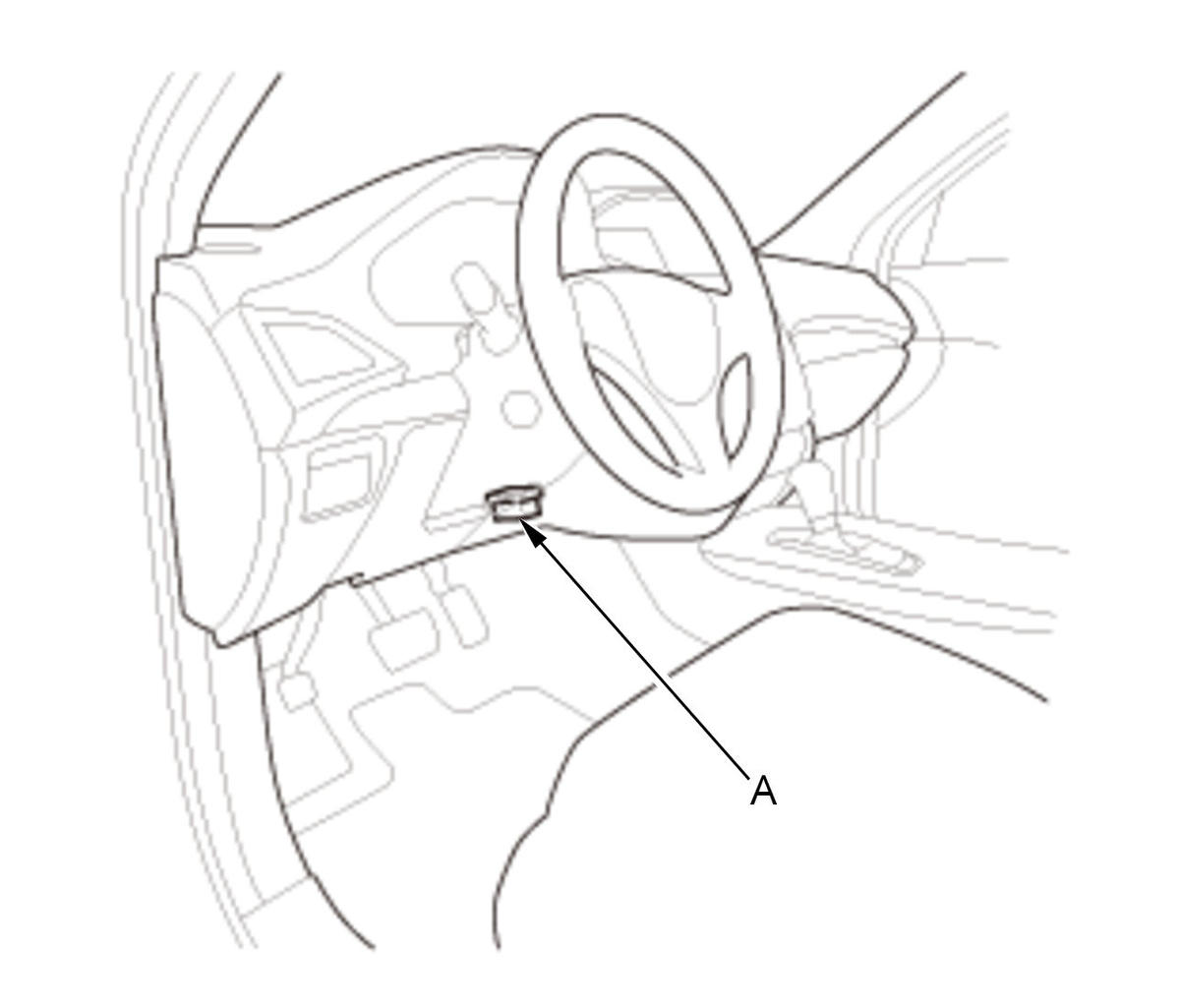

    -1. Connect the HDS to the DLC (A) located under the driver's side of the dashboard.

    GHH315991Courtesy of HONDA, U.S.A., INC.

    - 2. Turn the vehicle to the ON mode.

    - 3. Make sure the HDS communicates with the PCM. If it does not, go to the DLC circuit troubleshooting.

    - 4. Select Shift Lock Solenoid Test in the Miscellaneous Test Menu, and check that the shift lock solenoid operates with the HDS.

    Shift Lock Solenoid Test

    Does the shift lock solenoid work properly?

    YES

    The shift lock solenoid is OK. Go to step 7.

    NO

    Go to step 2.

  2. Fuse check

    -1. Check the following fuse.

    Fuse No. D11 (7.5 A)
    Location Driver's under-dash fuse/relay box

    Is the fuse OK?

    YES

    The fuse is OK. Go to step 3.

    NO

    Replace the No. D11 (7.5 A) fuse, and recheck. If the fuse blows again, repair a short to ground in the No. D11 (7.5 A) fuse circuit.

  3. Open wire check (IG1 METER line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Remove the center console.

    - 3. Disconnect the following connector.

    Shift lock solenoid 2P connector

    - 4. Turn the vehicle to the ON mode.

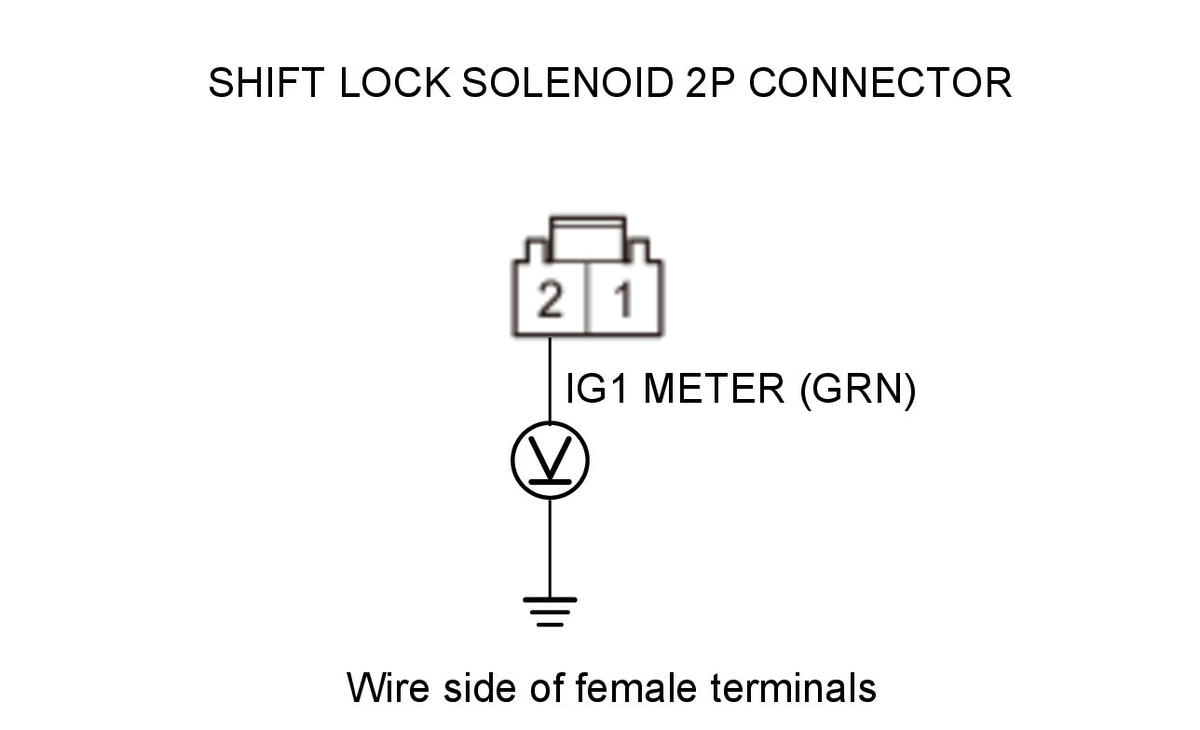

    - 5. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Shift lock solenoid 2P connector: disconnected
    Test circuit IG1 METER
    Test point 1 Shift lock solenoid 2P connector No. 2 (GRN)
    Test point 2 Body ground
    GHH315992Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The IG1 METER wire is OK. Go to step 4.

    NO

    Repair an open in the IG1 METER wire between the shift lock solenoid and the driver's under-dash fuse/relay box.

  4. Determine possible failure area (short in SLS line, open in SLS line)

    -1. With the shift lever in P, press the brake pedal.

    NOTE: Do not press the accelerator pedal.

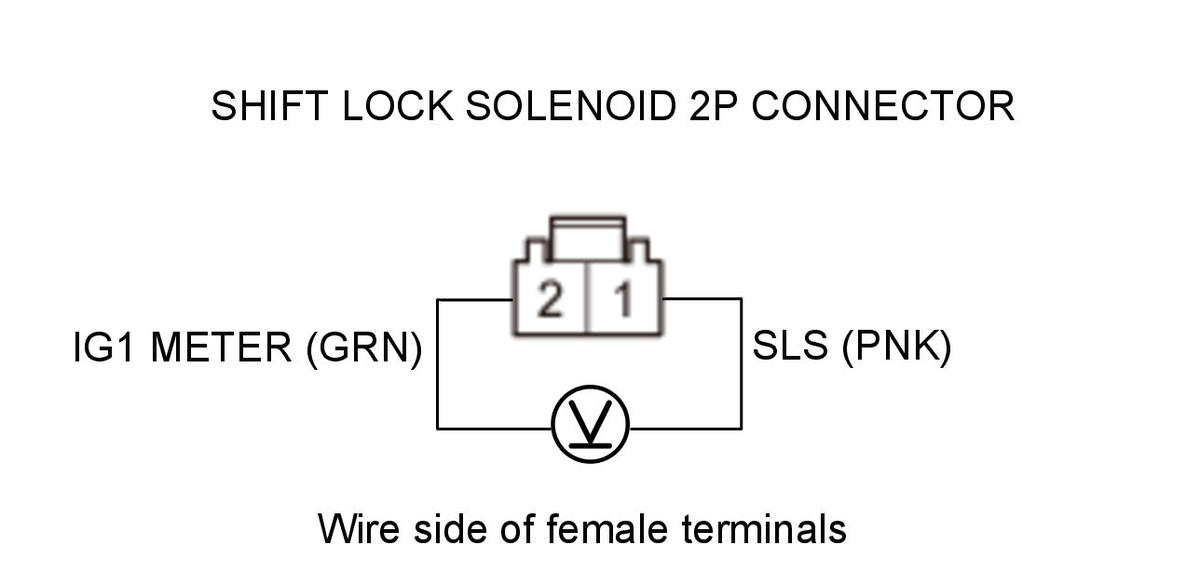

    - 2. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Shift lock solenoid 2P connector: disconnected
    Test circuit SLS, IG1 METER
    Test point 1 Shift lock solenoid 2P connector No. 1 (PNK)
    Test point 2 Shift lock solenoid 2P connector No. 2 (GRN)
    GHH315993Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 5.

    NO

    Go to step 6.

  5. Shorted wire check (SLS line)

    -1. Release the brake pedal.

    NOTE: The shift lever must be in P.

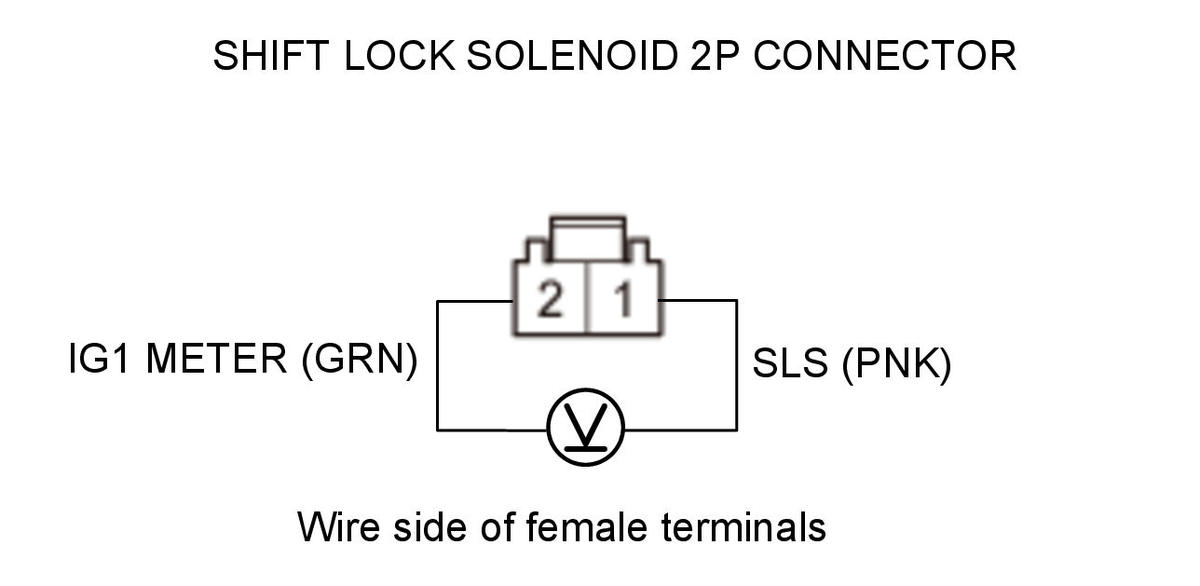

    - 2. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Shift lock solenoid 2P connector: disconnected
    Test circuit SLS, IG1 METER
    Test point 1 Shift lock solenoid 2P connector No. 1 (PNK)
    Test point 2 Shift lock solenoid 2P connector No. 2 (GRN)
    GHH315994Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Repair a short to ground in the SLS wire between the shift lock solenoid and the PCM.

    NO

    The SLS wire is OK. Check the shift lock mechanism. If the mechanism is OK, replace the shift lock solenoide .

  6. Open wire check (SLS line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Jump the SCS line with the HDS.

    - 3. Disconnect the following connector.

    PCM connector A (51P) - Refer to: How to Troubleshoot the A/T System (2014 2015), or How to Troubleshoot the Fuel and Emissions Systems,

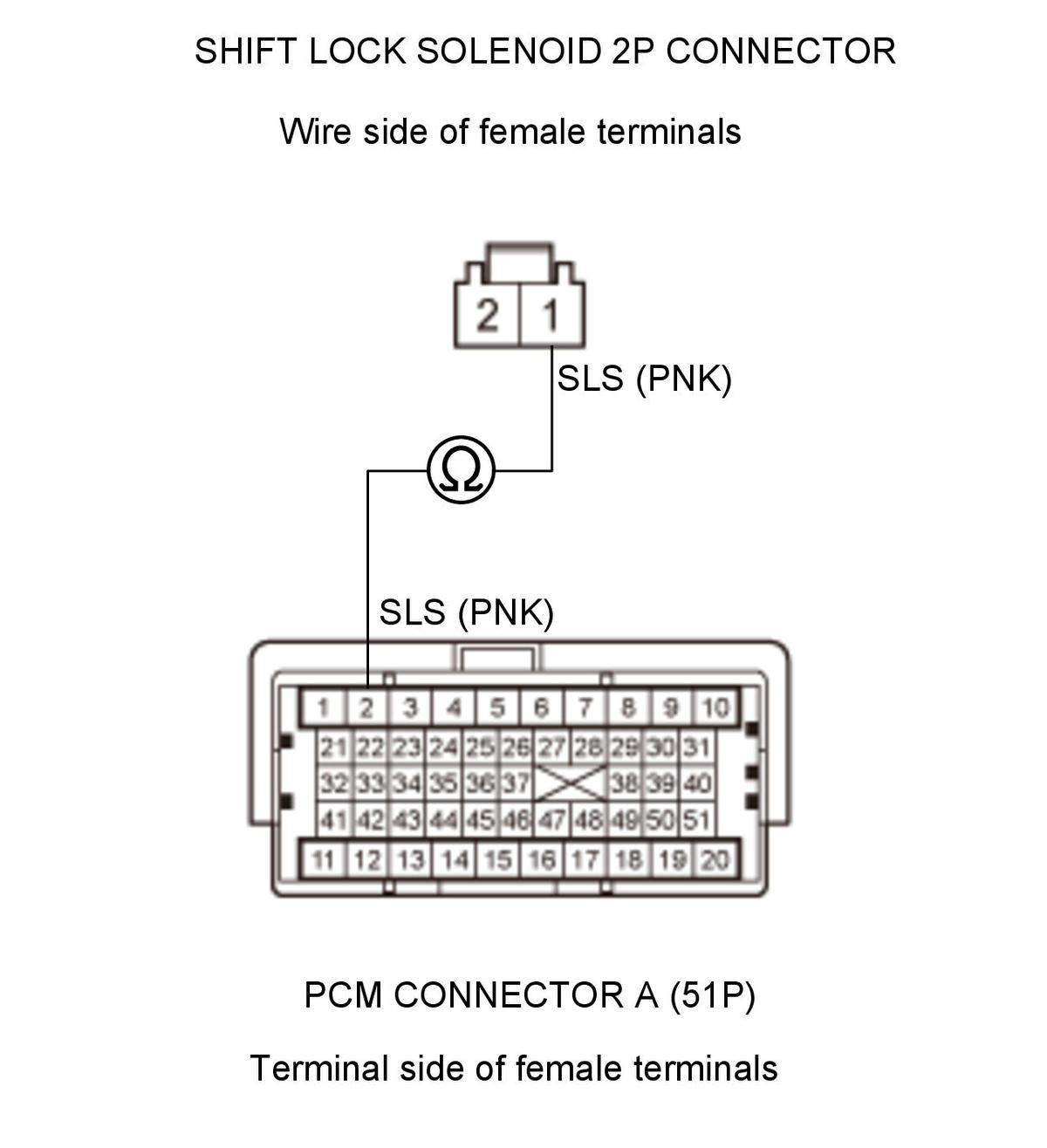

    - 4. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Shift lock solenoid 2P connector: disconnected
      PCM connector A (51P): disconnected
    Test circuit SLS
    Test point 1 Shift lock solenoid 2P connector No. 1 (PNK)
    Test point 2 PCM connector A (51P) No. 2 (PNK)
    GHH315995Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The SLS wire is OK. Update the PCM if it does not have the latest software , or substitute a known-good PCM - Refer to: How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the A/T System (2014 2015) , and recheck. If the symptom goes away with a known-good PCM, replace the original PCM - Refer to: PCM Removal and Installation (2014 2015), .

    NO

    Repair an open in the SLS wire between the shift lock solenoid and the PCM.

  7. Brake pedal position switch operation check

    -1. Check the parameter(s) below with the HDS while pressing the brake pedal.

    Signal Threshold Current conditions
    Values Unit Values Unit
    Brake Switch ON

    Do the current condition(s) match the threshold?

    YES

    The brake pedal position switch is OK. Go to step 9.

    NO

    If the brake lights come on, go to step 8. If the brake lights do not work, repair faulty brake light circuit.

  8. Open wire check (STOP SW line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Jump the SCS line with the HDS.

    - 3. Disconnect the following connector.

    PCM connector A (51P) - Refer to: How to Troubleshoot the A/T System (2014 2015), or How to Troubleshoot the Fuel and Emissions Systems,

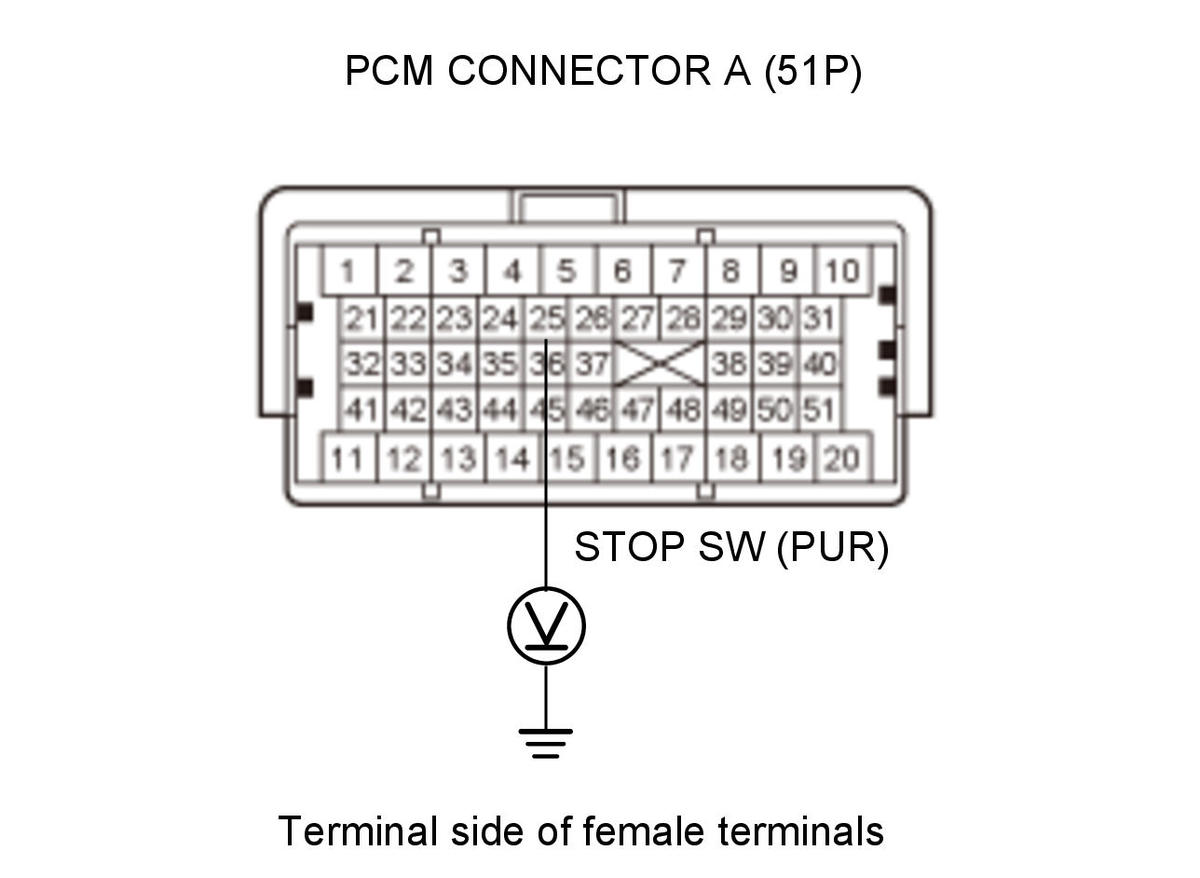

    - 4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      PCM connector A (51P): disconnected
    Test circuit STOP SW
    Test point 1 PCM connector A (51P) No. 25 (PUR)
    Test point 2 Body ground
    GHH315996Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage while pressing the brake pedal and about 0 V when the pedal is released?

    YES

    The STOP SW wire is OK. Update the PCM if it does not have the latest software , or substitute a known-good PCM - Refer to: How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the A/T System (2014 2015) , and recheck. If the symptom goes away with a known-good PCM, replace the original PCM - Refer to: PCM Removal and Installation (2014 2015) .

    NO

    Repair an open in the STOP SW wire between the PCM and the brake pedal position switch.

  9. Transmission range switch operation check

    -1. Check the parameter(s) below with the HDS with the shift lever in P.

    Signal Threshold Current conditions
    Values Unit Values Unit
    A/T P Switch ON

    Do the current condition(s) match the threshold?

    YES

    The transmission range switch is OK. Go to step 12.

    NO

    Go to step 10.

  10. Transmission range switch ATPP line input check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Disconnect the following connector.

    Transmission range switch 10P connector

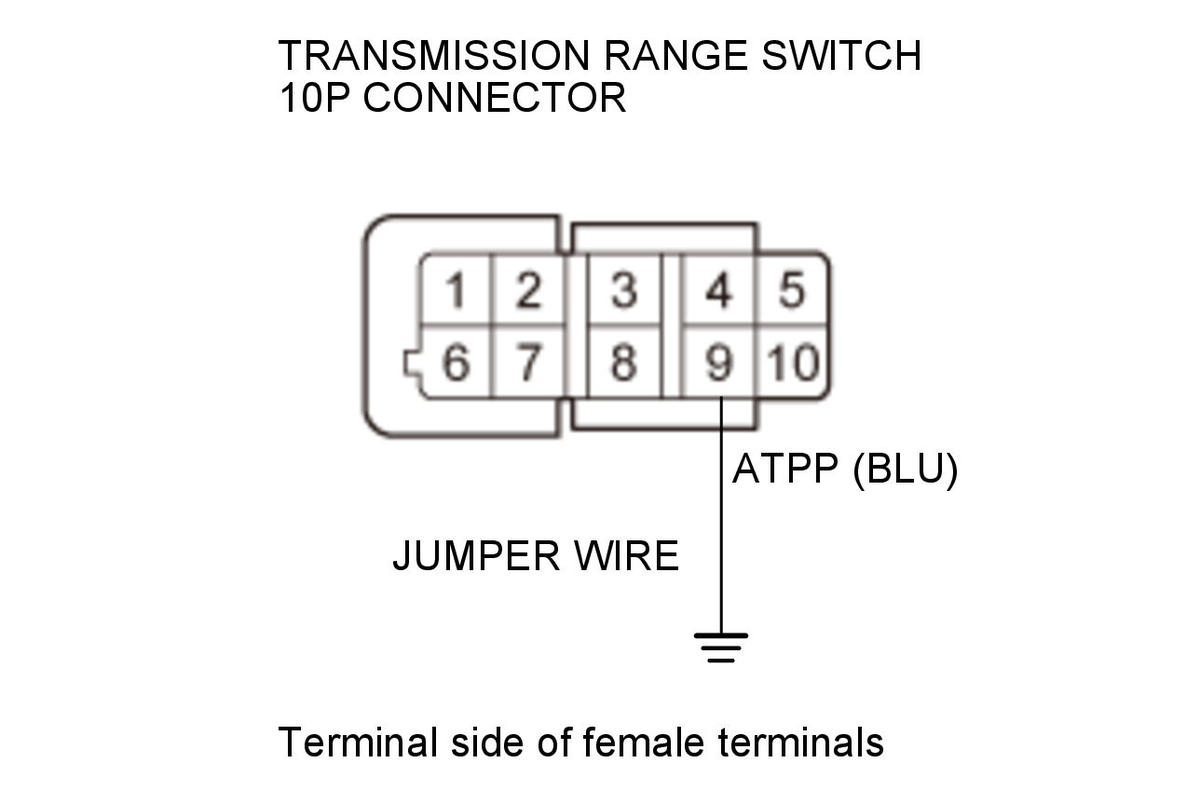

    - 3. Connect terminals A and B with a jumper wire.

    Terminal A Transmission range switch 10P connector No. 9 (BLU)
    Terminal B Body ground
    GHH315997Courtesy of HONDA, U.S.A., INC.

    - 4. Turn the vehicle to the ON mode.

    - 5. Check the parameter(s) below.

    Signal Threshold Current conditions
    Values Unit Values Unit
    A/T P Switch ON

    Do the current condition(s) match the threshold?

    YES

    Transmission range switch ATPP line is OK. Replace the transmission range switch .

    NO

    Go to step 11.

  11. Open wire check (ATPP/ATP-P line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Remove the jumper wire.

    - 3. Jump the SCS line with the HDS.

    - 4. Disconnect the following connector.

    PCM connector A (51P) - Refer to: How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the A/T System (2014 2015),

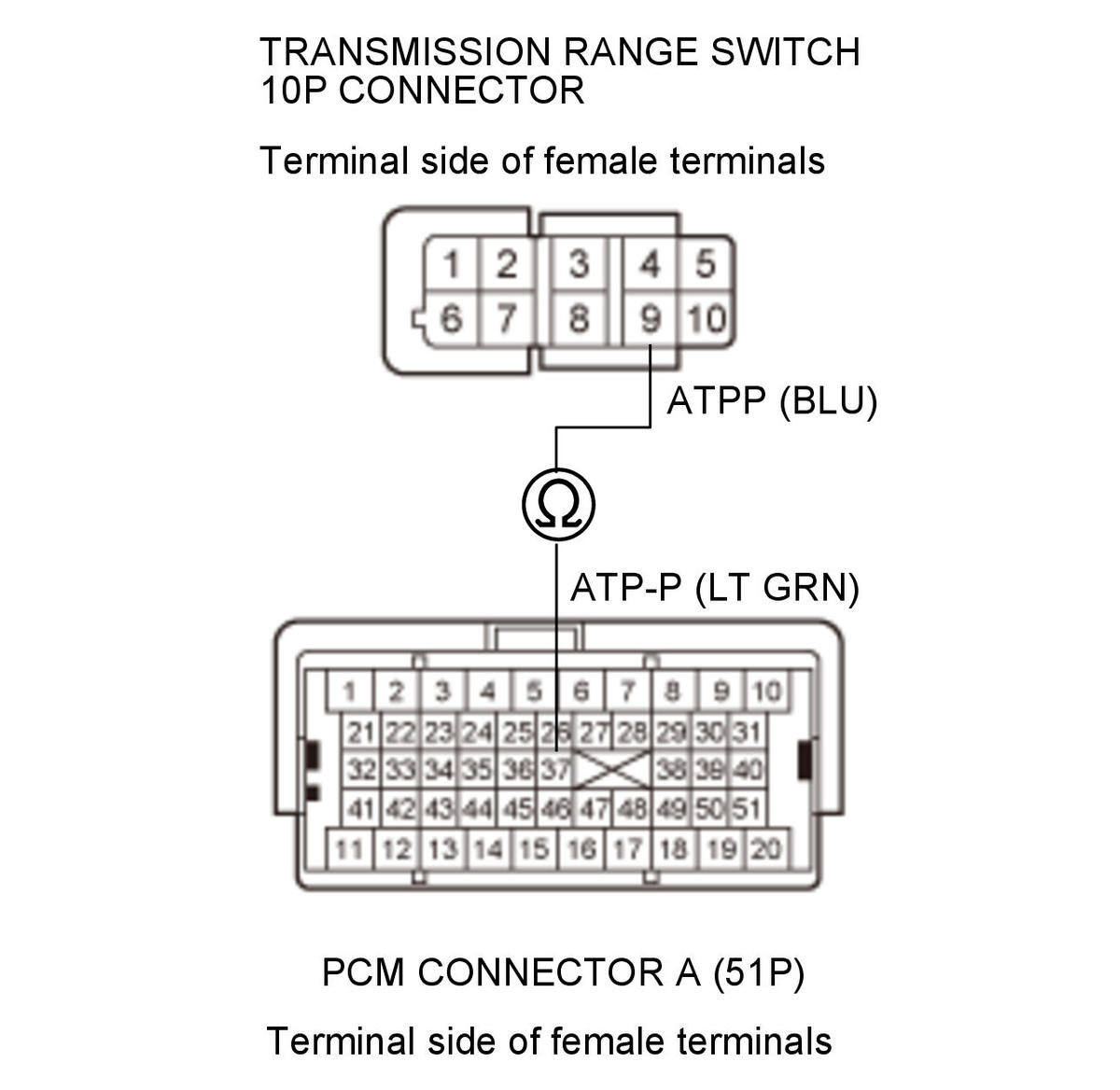

    - 5. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Transmission range switch 10P connector: disconnected
      PCM connector A (51P): disconnected
    Test circuit ATPP/ATP-P
    Test point 1 Transmission range switch 10P connector No. 9 (BLU)
    Test point 2 PCM connector A (51P) No. 37 (LT GRN)
    GHH315998Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The ATPP/ATP-P wire is OK. Update the PCM if it does not have the latest software , or substitute a known-good PCM - Refer to: How to Troubleshoot the A/T System (2014 2015), or How to Troubleshoot the Fuel and Emissions Systems , and recheck. If the symptom goes away with a known-good PCM, replace the original PCM - Refer to: PCM Removal and Installation (2014 2015) .

    NO

    Repair an open in the ATPP/ATP-P wire between the transmission range switch and the PCM.

  12. APP Sensor signal check

    -1. Check the parameter(s) below with the HDS.

    NOTE: Do not press the accelerator pedal.
    Signal Threshold Current conditions
    Values Unit Values Unit
    APP Sensor (%) More than 5 %
    APP Sensor A (V) Higher than 1.16 V

    Do the current condition(s) match the threshold?

    YES

    The APP Sensor signal is OK. Update the PCM if it does not have the latest software , or substitute a known-good PCM - Refer to: How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the A/T System (2014 2015), , and recheck. If the symptom goes away with a known-good PCM, replace the original PCM - Refer to: PCM Removal and Installation (2014 2015), .

    NO

    Check the APP sensor .
