DTC P0712, P0713 (2016 2017 2018 2019 2020)
DTC P0712 : ATF Temperature Sensor (Short)DTC P0713 : ATF Temperature Sensor (Open)
- Before you troubleshoot, review the General Troubleshooting Information .
- This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
- The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
| DTC Description | Confirmed DTC | Pending DTC | Freeze Frame |
|---|---|---|---|
| P0712 ATF Temperature Sensor (Short) | |||
| P0713 ATF Temperature Sensor (Open) |
DTC (A/T)
- Problem verification
-1. Turn the vehicle to the ON mode.
- 2. Clear the DTC with the HDS.
- 3. Turn the vehicle to the OFF (LOCK) mode.
- 4. Start the engine, and wait for at least 10 seconds in P position/mode.
- 5. Check for Pending or Confirmed DTCs with the HDS.
DTC Description Confirmed DTC Pending DTC Freeze Frame P0712 ATF Temperature Sensor (Short) P0713 ATF Temperature Sensor (Open) Is DTC P0712 or P0713 indicated?
YES
The failure is duplicated. Go to step 2.
YES
The failure is duplicated. Go to step 3.
NO
Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between the sensor unit and the TCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.
- Shorted wire check (TATFM, TATFP lines)
-1. Check for continuity between the following test points and body ground individually.
Test condition Vehicle OFF (LOCK) mode TCM subharness 26P connector: disconnected TCM 58P connector: disconnected Connector Terminal TCM 58P connector No. 17 No. 30 Is there continuity?
YES
Repair a short to ground in the TATFM and/or TATFP wire between the sensor unit and the TCM.
NO
The TATFM and TATFP wires are OK. Replace the sensor unit (2016 2017 2018 2019 2020) or replace the PCM - Refer to: PCM Removal and Installation (2014 2015), or PCM Removal and Installation (2016 2017 2018 2019 2020) .
- Open wire check (TATFM, TATFP lines)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connectors.
TCM subharness 26P connector TCM 58P connector - 3. Check for continuity between test points 1 and 2 individually.

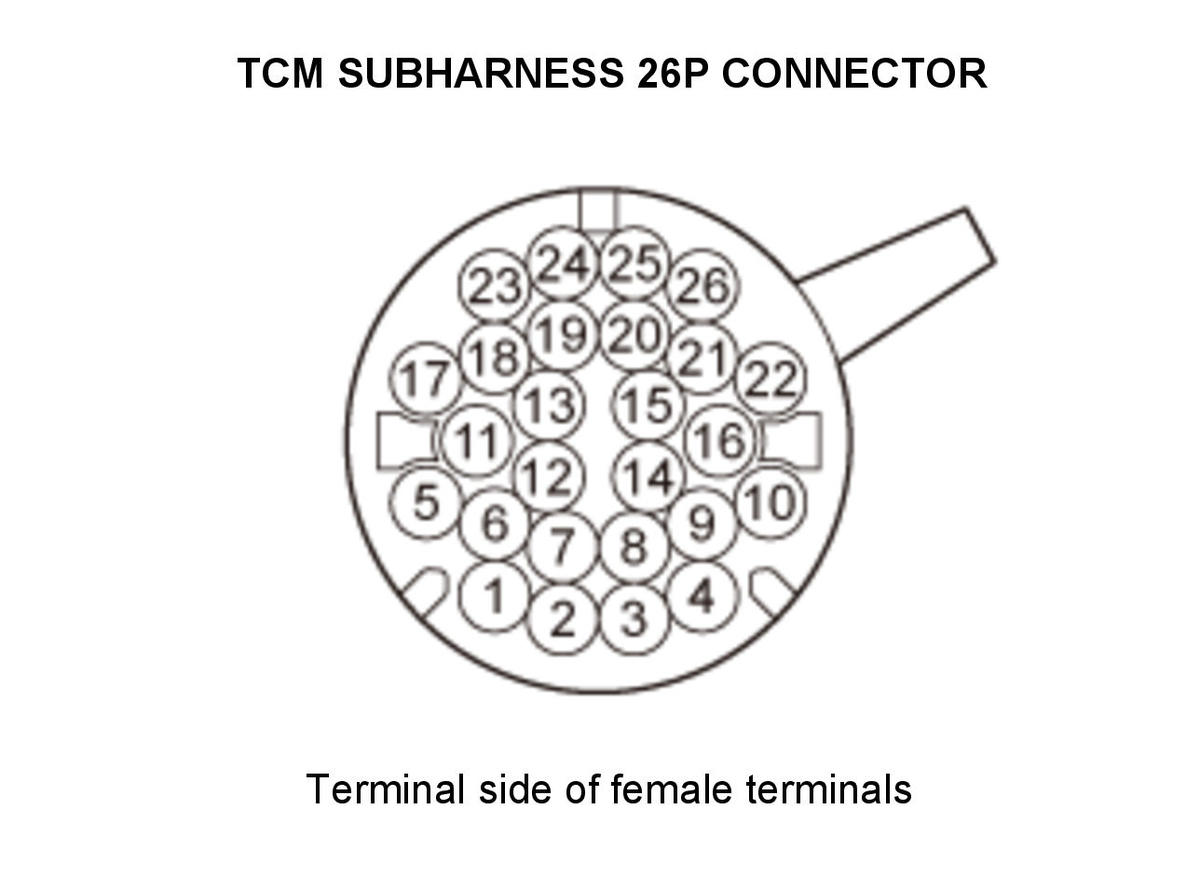

Test condition Vehicle OFF (LOCK) mode TCM subharness 26P connector: disconnected TCM 58P connector: disconnected Test point 1 TCM subharness 26P connector No. 25 Test point 2 TCM 58P connector No. 30 Test point 1 TCM subharness 26P connector No. 26 Test point 2 TCM 58P connector No. 17 Is there continuity?
YES
The TATFM and TATFP wires are OK. Replace the sensor unit (2016 2017 2018 2019 2020) or replace the PCM - Refer to: PCM Removal and Installation (2016 2017 2018 2019 2020) or PCM Removal and Installation (2014 2015) .
NO
Repair an open to ground in the TATFM and/or TATFP wire between the sensor unit and the TCM.
