DTC P0657 (2016 2017 2018 2019 2020)

DTC P0657  : Actuator Supply Voltage Circuit/Open

NOTE:
  • Before you troubleshoot, record all freeze data and any on-board snapshots, and review the General Troubleshooting Information .
  • This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
  • The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
DTC Description Confirmed DTC Pending DTC Freeze Frame
P0657 Actuator Supply Voltage Circuit/Open

DTC (A/T)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    - 2. Clear the DTC with the HDS.

    - 3. Turn the vehicle to the OFF (LOCK) mode.

    - 4. Turn the vehicle to the ON mode, and wait for several seconds.

    - 5. Check for Pending or Confirmed DTCs with the HDS.

    DTC Description Confirmed DTC Pending DTC Freeze Frame
    P0657 Actuator Supply Voltage Circuit/Open

    Is DTC P0657 indicated?

    YES

    The failure is duplicated. Go to step 2.

    NO

    Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals at the TCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

  2. Fuse check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Check the following fuses.

    Fuse No. C3 (15 A)
    Location Under-hood fuse/relay box
    Fuse '16No. C23 (15 A) /'17-20No. C25 (15 A)
    Location Under-hood fuse/relay box

    Are the fuses OK?

    YES

    The fuses are OK. Go to step 3.

    NO

    Replace the No. C3 (15 A) fuse and/or the'16No. C23 (15 A) /'17-20No. C25 (15 A) fuse, and recheck. If the fuse blows again, repair a short to ground in the No. C3 (15 A) fuse and/or the'16No. C23 (15 A) /'17-20No. C25 (15 A) fuse circuit.

  3. Shorted wire check (VBSOL, VBSOL2 lines)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Jump the SCS line with the HDS, and wait more than 1 minute.

    NOTE:

    This step must be done to protect the TCM from damage.

    - 3. Disconnect the following connectors.

    TCM subharness 26P connector
    TCM 58P connector

    - 4. Check for continuity between the following test points and body ground individually.

    Test condition Vehicle OFF (LOCK) mode
      TCM subharness 26P connector: disconnected
      TCM 58P connector: disconnected
    Connector Terminal
    TCM 58P connector No. 3
    No. 6

    Is there continuity?

    YES

    Repair a short to ground in the VBSOL and/or VBSOL2 wire between the sensor unit and the TCM.

    NO

    The VBSOL and VBSOL2 wires are not shorted to ground. Go to step 4.

  4. Open wire check (+B line)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      TCM subharness 26P connector: disconnected
      TCM 58P connector: disconnected
    Test point 1 TCM 58P connector No. 5
    Test point 2 Body ground

    Is there battery voltage?

    YES

    The +B wire is OK. Go to step 5.

    NO

    Repair an open in the +B wire between the TCM and the'16No. C23 (15 A) /'17-20No. C25 (15 A) fuse in the under-hood fuse/relay box.

  5. Open wire check (IG1 line)

    -1. Turn the vehicle to the ON mode.

    - 2. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      TCM subharness 26P connector: disconnected
      TCM 58P connector: disconnected
    Test point 1 TCM 58P connector No. 58
    Test point 2 Body ground

    Is there battery voltage?

    YES

    The IG1 wire is OK. Go to step 6.

    NO

    Repair an open in the IG1 wire between the TCM and the No. C3 (15 A) fuse in the under-hood fuse/relay box.

  6. Open wire check (VBSOL, VBSOL2 lines)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Check for continuity between test points 1 and 2 individually.

    Test condition Vehicle OFF (LOCK) mode
      TCM subharness 26P connector: disconnected
      TCM 58P connector: disconnected

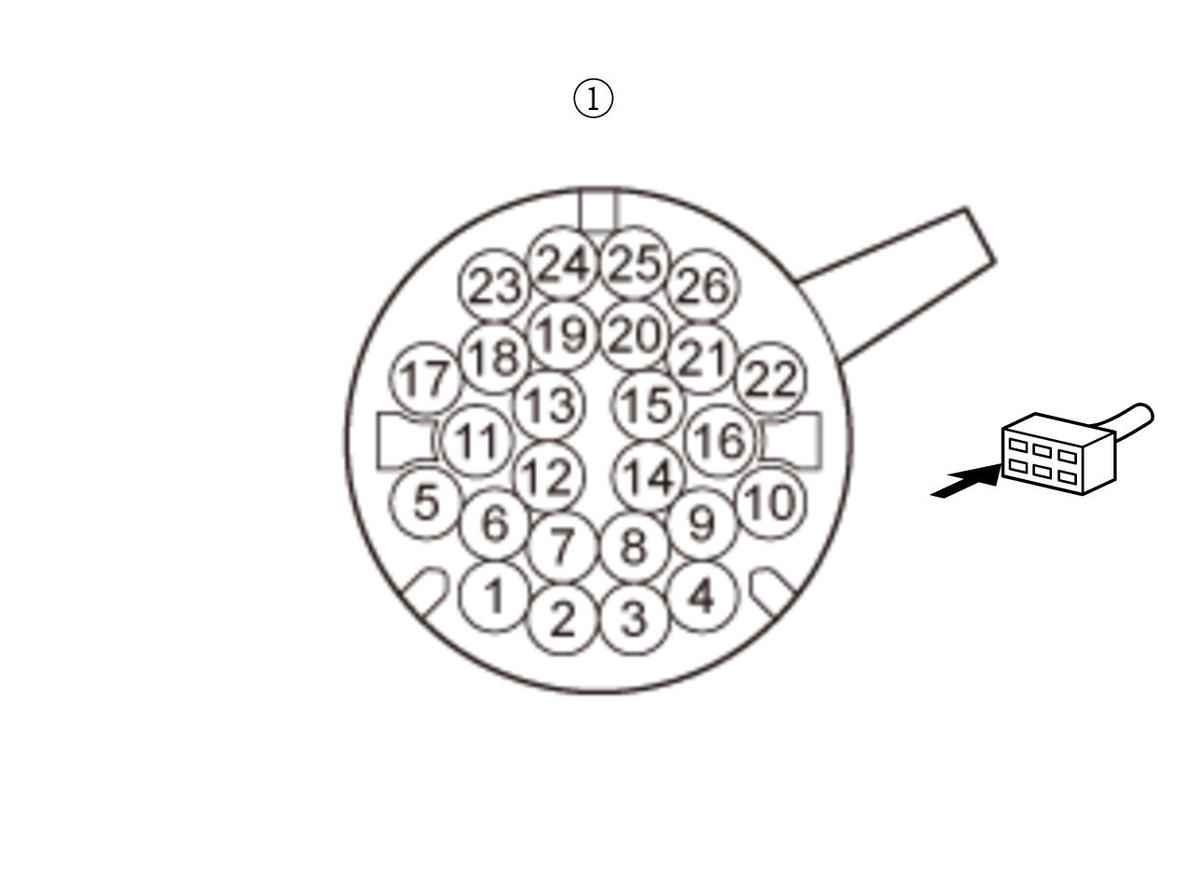

    Test point 1 TCM subharness 26P connector (female terminals) No. 1:
    Test point 2 TCM 58P connector No. 3
    Test point 1 TCM subharness 26P connector (female terminals) No. 4:
    Test point 2 TCM 58P connector No. 6
    GHH316115Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The VBSOL and VBSOL2 wires are OK. Go to step 7.

    NO

    Repair an open in the VBSOL and/or VBSOL2 wire between the sensor unit and the TCM.

  7. Open wire check (GND1, GND2 lines)

    -1. Check for continuity between the following test points and body ground individually.

    Test condition Vehicle OFF (LOCK) mode
      TCM subharness 26P connector: disconnected
      TCM 58P connector: disconnected
    Connector Terminal
    TCM 58P connector No. 1
    No. 2

    Is there continuity?

    YES

    The GND1 and GND2 wires are OK. Replace the TCM .

    NO

    Repair an open in the GND1 and/or GND2 wire between the TCM and ground (G101) or repair poor ground (G101).
