DTC P0651 (2016 2017 2018 2019 2020)
DTC P0651 : Sensor Reference Voltage 2 Circuit Malfunction
- Before you troubleshoot, review the General Troubleshooting Information .
- This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
- The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
| DTC Description | Confirmed DTC | Pending DTC | Freeze Frame |
|---|---|---|---|
| P0651 Sensor Reference Voltage 2 Circuit Malfunction |
DTC (A/T)
- Problem verification
-1. Turn the vehicle to the ON mode.
- 2. Clear the DTC with the HDS.
- 3. Turn the vehicle to the OFF (LOCK) mode.
- 4. Turn the vehicle to the ON mode, and wait for several seconds.
- 5. Check for Pending or Confirmed DTCs with the HDS.
DTC Description Confirmed DTC Pending DTC Freeze Frame P0651 Sensor Reference Voltage 2 Circuit Malfunction Is DTC P0651 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between the sensor unit and the TCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.
- Open wire check (VCC1, SG1 lines)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connectors.

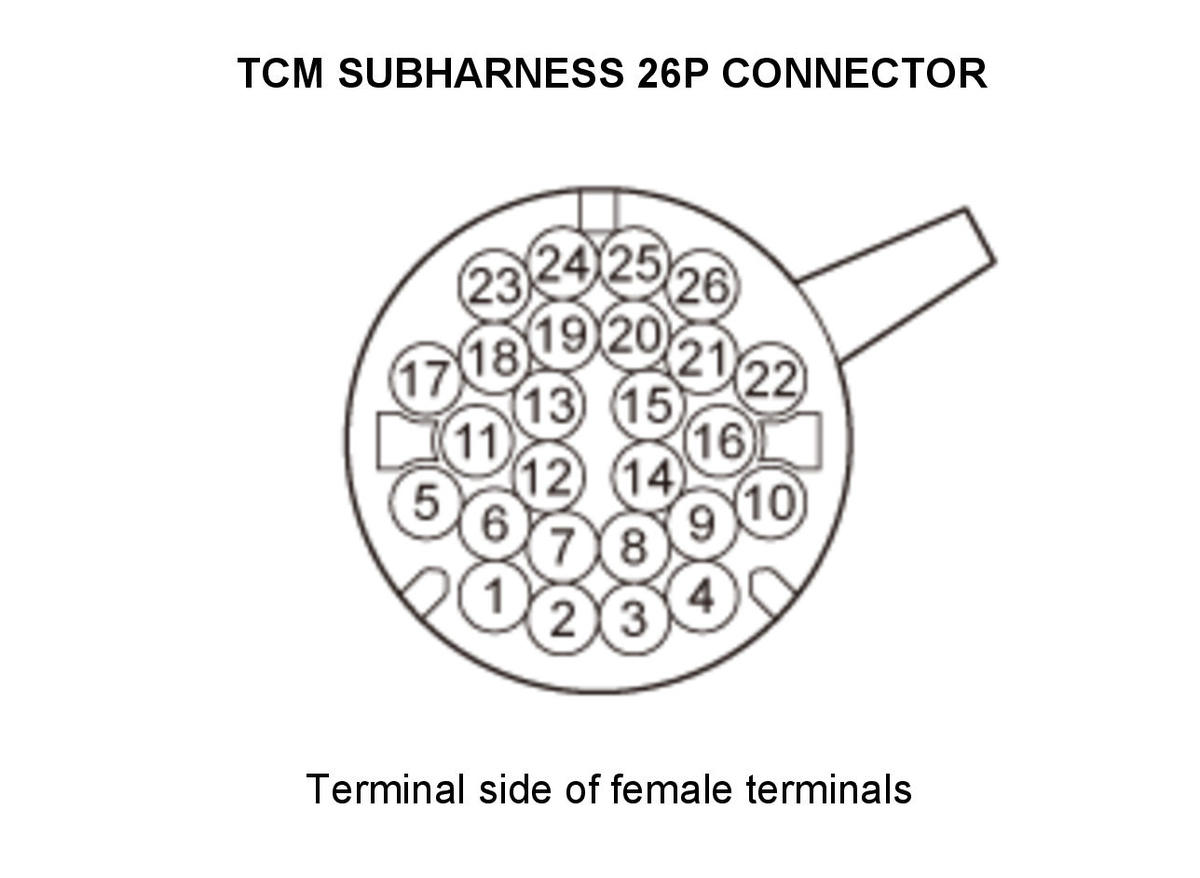

TCM subharness 26P connector TCM 58P connector - 3. Check for continuity between test points 1 and 2 individually.
Test condition Vehicle OFF (LOCK) mode TCM subharness 26P connector: disconnected TCM 58P connector: disconnected Test point 1 TCM subharness 26P connector No. 15 Test point 2 TCM 58P connector No. 10 Test point 1 TCM subharness 26P connector No. 17 Test point 2 TCM 58P connector No. 8 Is there continuity?
YES
The VCC1 and SG1 wires are not open. Go to step 3.
NO
Repair an open in the VCC1 and/or SG1 wire between the sensor unit and the TCM.
- Shorted wire check (VCC1 line)
-1. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode TCM subharness 26P connector: disconnected TCM 58P connector: disconnected Test point 1 TCM 58P connector No. 10 Test point 2 Body ground Is there continuity?
YES
Repair a short to ground in the VCC1 wire between the sensor unit and the TCM.
NO
The VCC1 wire is OK. The failure is duplicated. Replace the sensor unit or substitute a known-good TCM , then recheck. If this DTC goes away and the TCM was updated, troubleshooting is complete. If this DTC goes away and the TCM was substituted, replace the original TCM .
