Wheel Bolt Removal and Installation (2017 2018 2019 2020): Removal

NOTICE:

Do not use a hammer or impact tools (pneumatic or electric).
Be careful not to damage the threads of the wheel bolts.

Front

Vehicle - Lift
Front Wheel - Remove - Refer to: Wheel Removal and Installation (2017 2018 2019 2020)
Front Hub - Remove

Wheel Bolt - Remove

Courtesy of HONDA, U.S.A., INC.

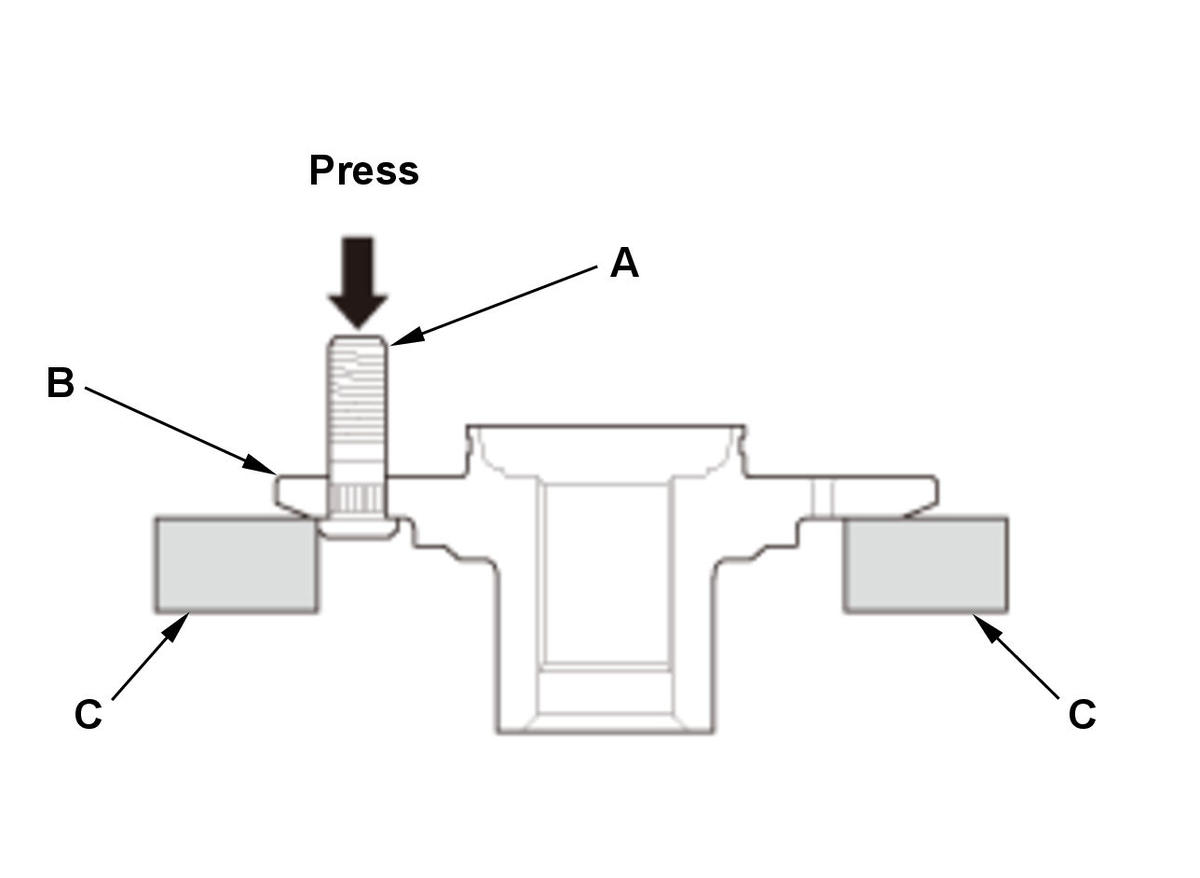

1. Separate the wheel bolt (A) from the hub (B) using a hydraulic press.

NOTE:

Support the hub with hydraulic press attachments (C) or equivalent tools.

Rear

Vehicle - Lift
Rear Wheel - Remove - Refer to: Wheel Removal and Installation (2017 2018 2019 2020)
Rear Brake Disc - Remove - Refer to: Rear Brake Disc Removal and Installation (2017 2018 2019 2020)

Wheel Bolt - Remove

Courtesy of HONDA, U.S.A., INC.

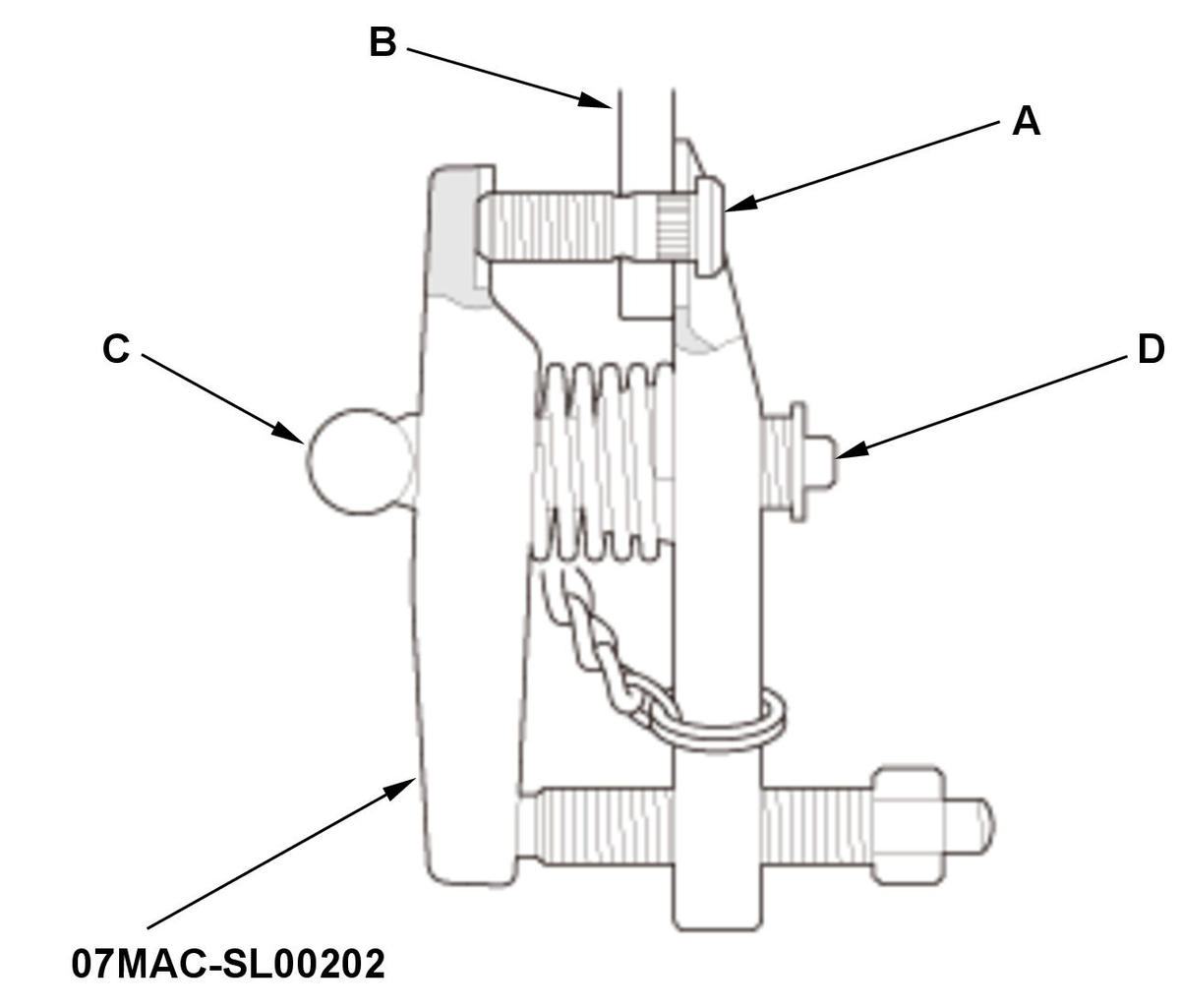

1. Separate the wheel bolt (A) from the hub (B).

NOTE:

If the angle of the remover against the wheel bolt is not vertical, readjust the ball joint remover by turning the head (C) of the adjusting bolt (D).
