Wheel Bolt Removal and Installation (2014 2015 2016): Removal

NOTICE:

• Do not use a hammer or impact tools (pneumatic or electric).
• Be careful not to damage the threads of the wheel bolts.

Front

1. Vehicle - Lift
2. Wheel - Remove - Refer to: Wheel Removal and Installation (2014 2015 2016)
3. Wheel Hub - Remove
4. Wheel Bolt - Remove

   Courtesy of HONDA, U.S.A., INC.

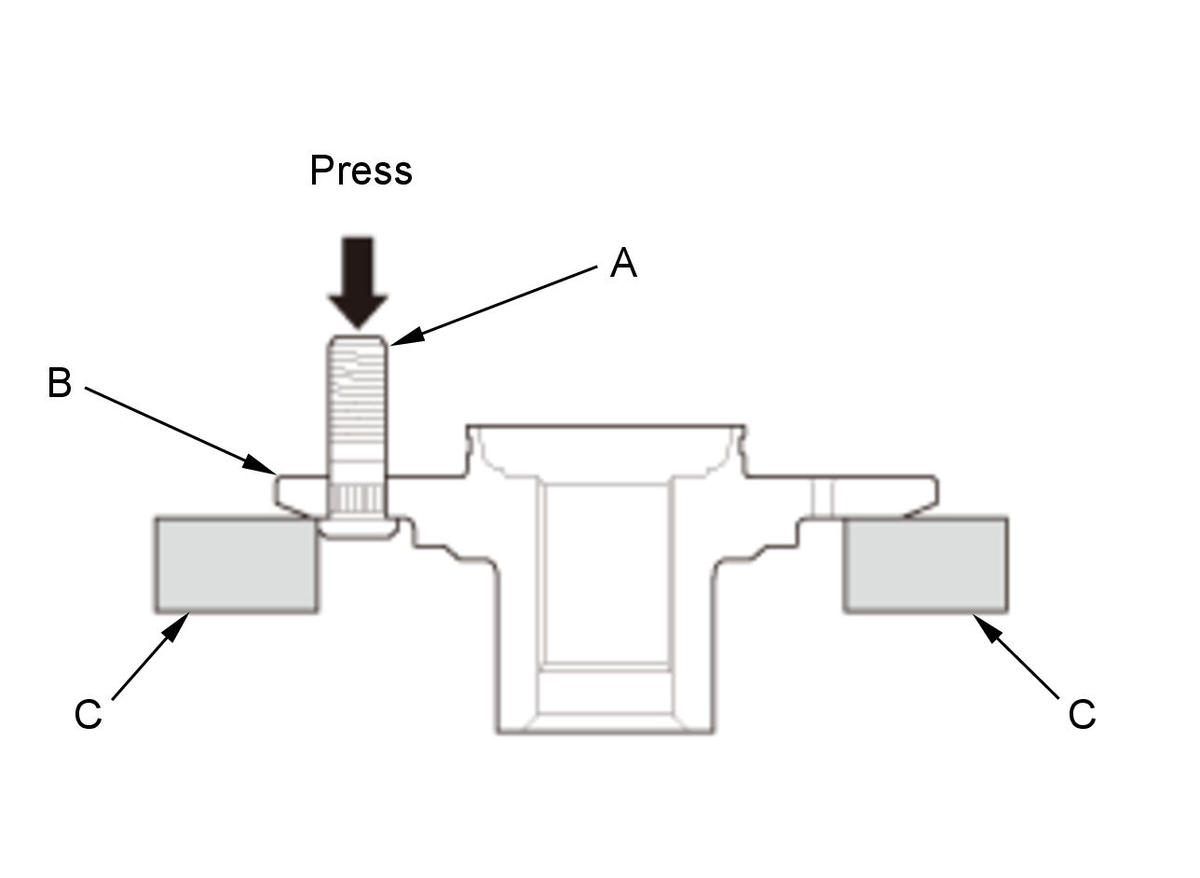

   1. Separate the wheel bolt (A) from the hub (B) using a hydraulic press. Support the hub with hydraulic press attachments (C) or equivalent tools.

Rear

1. Vehicle - Lift
2. Wheel - Remove - Refer to: Wheel Removal and Installation (2014 2015 2016)
3. Brake Disc/Drum - Remove - Refer to: Rear Brake Disc Removal and Installation (2014 2015 2016)
4. Wheel Bolt - Remove

   Courtesy of HONDA, U.S.A., INC.

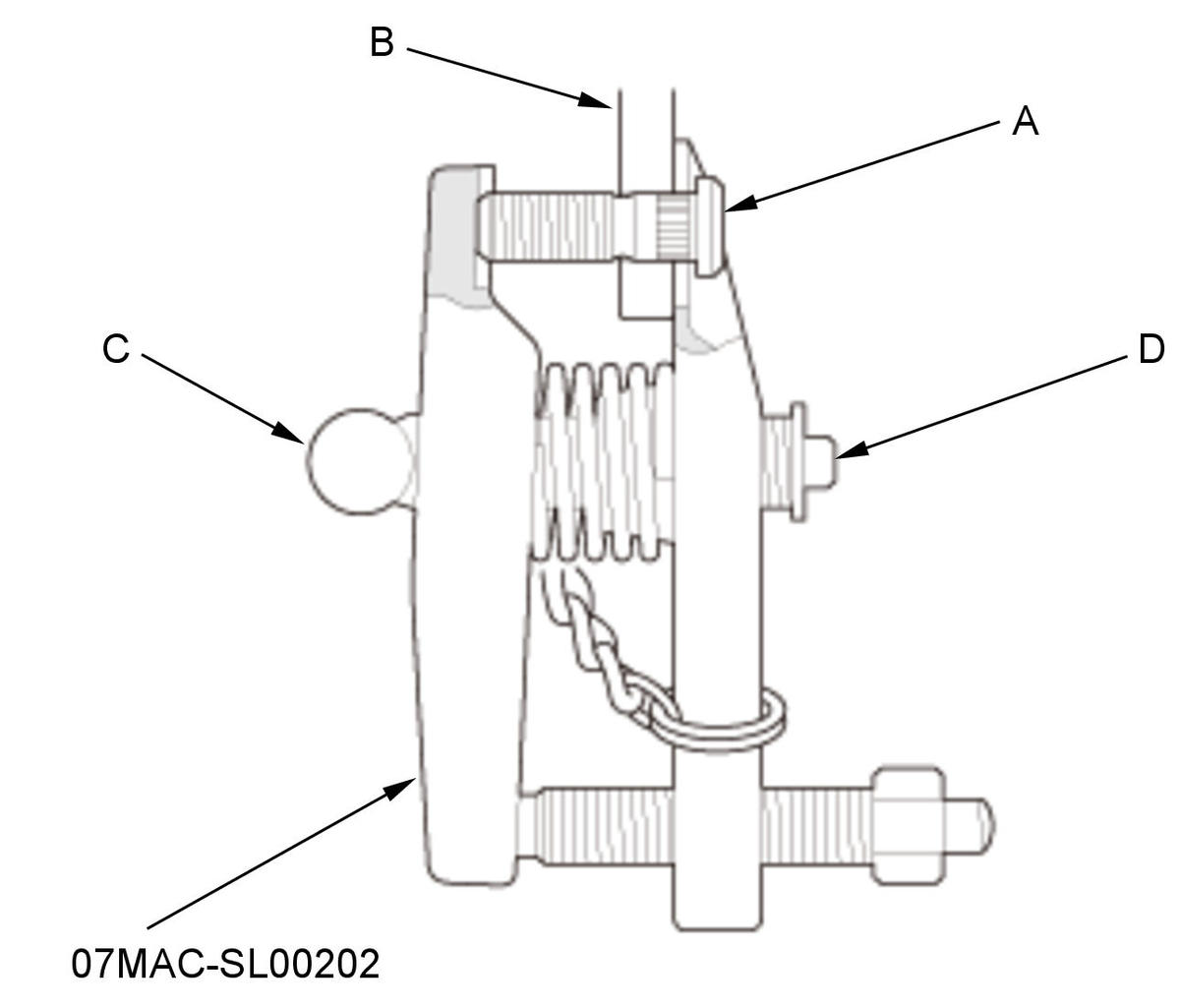

   1. Separate the wheel bolt (A) from the hub (B). NOTE: If the angle of the remover against the wheel bolt is not vertical, readjust the ball joint remover by turning the head (C) of the adjusting bolt (D).
