Wheel Bolt Removal and Installation (2014 2015 2016): Installation

NOTICE:

• Do not use a hammer or impact tools (pneumatic or electric).
• Be careful not to damage the threads of the wheel bolts.

Front

1. Wheel Bolt - Install

   Courtesy of HONDA, U.S.A., INC.

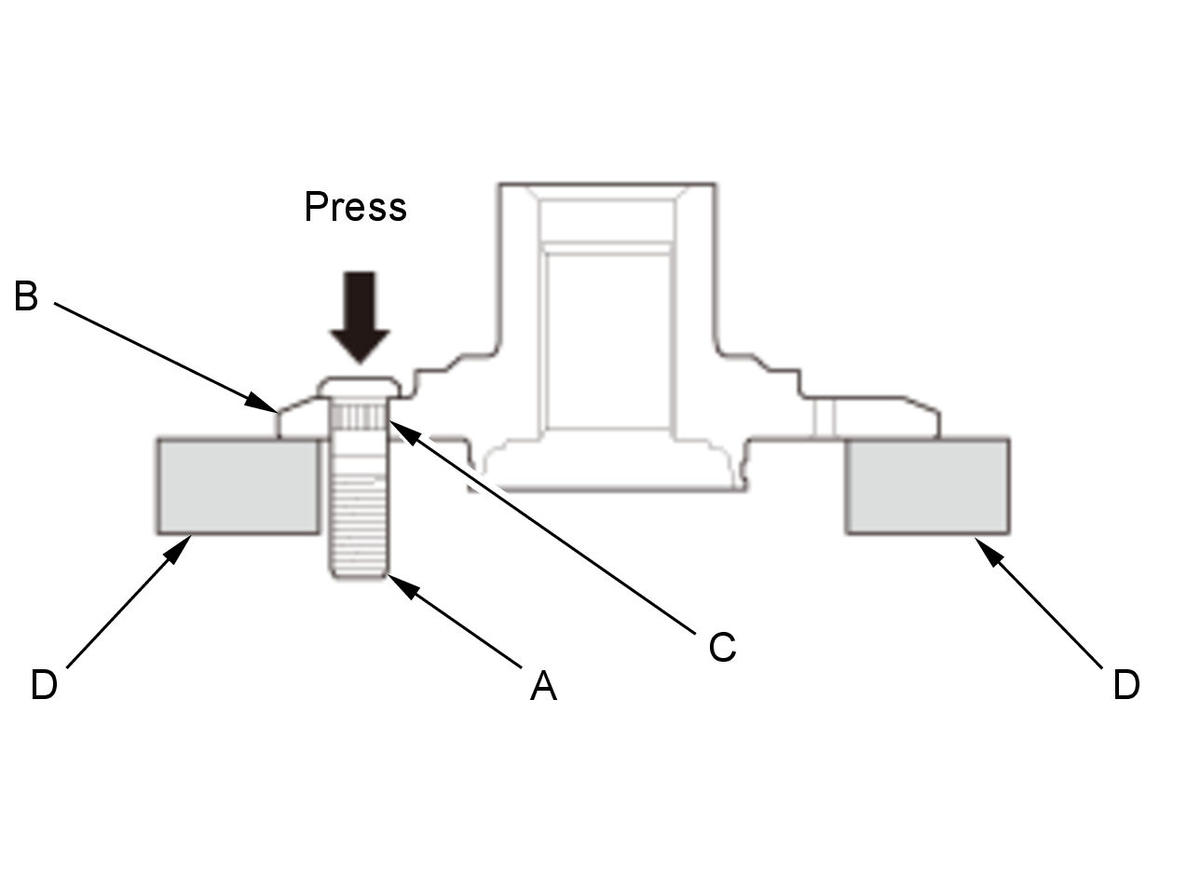

   1. Insert the new wheel bolt (A) into the hub (B) while aligning the splined surfaces (C) on the hub hole with the wheel bolt. NOTE: Degrease the area around the wheel bolt. Make sure the wheel bolt is installed vertically to the hub disc surface. Before installing the new wheel bolt, clean the mating surfaces on the bolt and the hub. 2. Install the wheel bolt using a hydraulic press until the wheel bolt shoulder is fully seated. Support the hub with hydraulic press attachments (D) or equivalent tools.

2. Wheel Hub - Install
3. Wheel - Install - Refer to: Wheel Removal and Installation (2014 2015 2016)
   NOTE:

   If you cannot tighten the wheel nut to the specified torque when installing the wheel, replace the front hub .

Rear

1. Wheel Bolt - Install

   Courtesy of HONDA, U.S.A., INC.

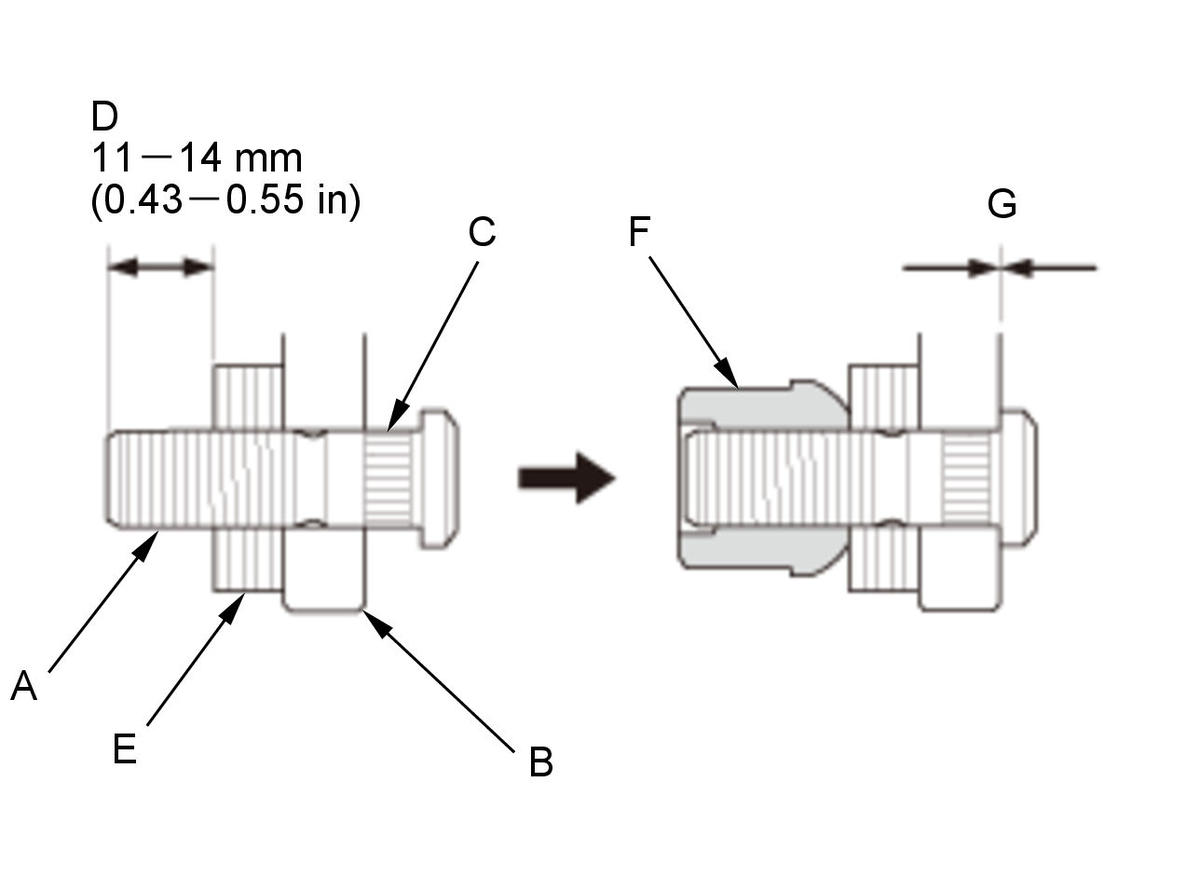

   1. Insert the new wheel bolt (A) into the hub (B) while aligning the splined surfaces (C) on the hub hole with the wheel bolt. NOTE: Before installing the new wheel bolt, clean the mating surfaces on the bolt and the hub. Degrease the area around the wheel bolt and the threaded section of the nut. 2. Adjust the measurement (D) with the washers (P/N 94101-12800 or equivalent) (E). 3. Install a nut (P/N 90304-SC2-000 or equivalent) (F) hand-tight. NOTE: Make sure the wheel bolt is installed vertically to the hub disc surface. Do not install the nut and the washers that have been used as tools on a vehicle. 4. Tighten the nut. NOTE: Do not exceed the maximum torque limit. Make sure there is no gap (G) between the bolt and the hub. Limited torque: 108 N.m (11.0 kgf-m, 80 lbf.ft) max.  NOTE: If you cannot tighten the wheel nut to the specified torque when installing the wheel, replace the rear hub bearing unit as an assembly - Refer to: Rear Knuckle/Hub Bearing Unit Removal and Installation (2014 2015 2016) .

2. Brake Disc/Drum - Install - Refer to: Rear Brake Disc Removal and Installation (2014 2015 2016)
3. Wheel - Install - Refer to: Wheel Removal and Installation (2014 2015 2016)
