Tire Pressure Sensor Removal and Installation: Installation

Tire Pressure Sensor - Install

Courtesy of HONDA, U.S.A., INC.

NOTE:

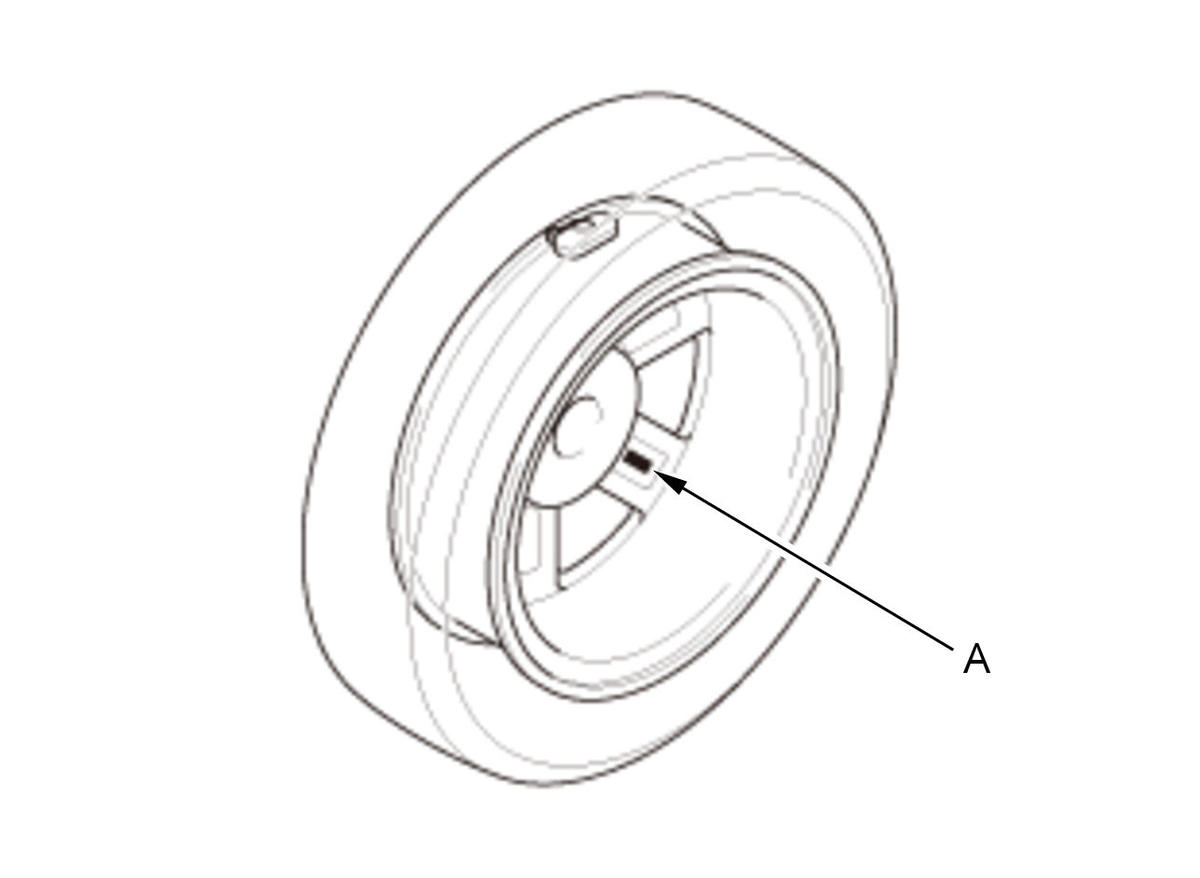

Use only wheels that have a "TPMS" stamp (A) on the inside or outside of the wheels.

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Before installing the tire pressure sensor, clean the mating surfaces on the sensor and the wheel.

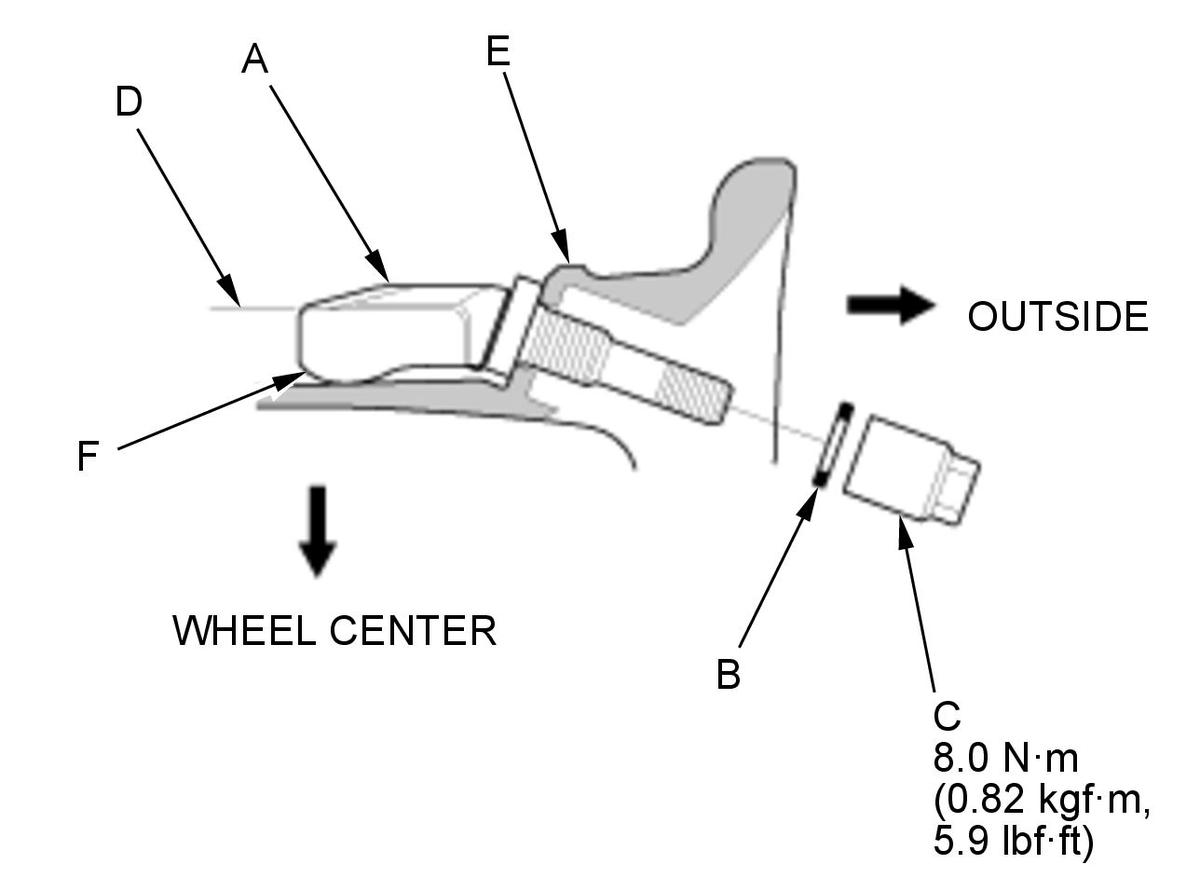

2. Install the tire pressure sensor (A).

3. Install the washer (B) and the valve stem nut (C).

NOTE:

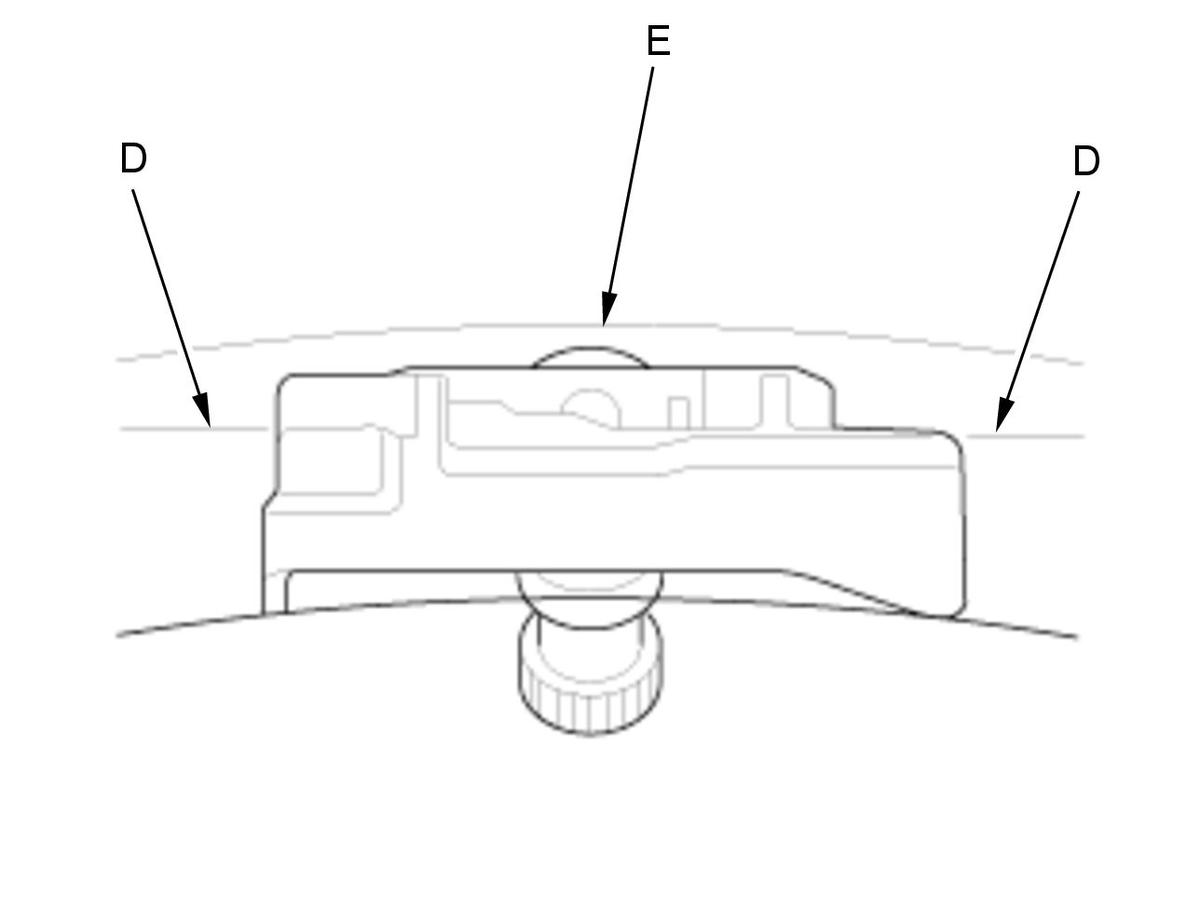

Install the tire pressure sensor so that the sensor housing surface (D) is below the protrusion (E) of the wheel to prevent the sensor housing from being caught on the bead of the tire when installing the tire. Be sure to always mount the tire pressure sensor with the feet (F) in the downward position toward the wheel.

4. Tighten the valve stem nut to the specified torque while holding the tire pressure sensor.

NOTE:

Do not use air or electric impact tools to tighten the valve stem nut.
Do not twist the tire pressure sensor to adjust its position with the wheel, as this will damage or deform the valve stem grommet.

Courtesy of HONDA, U.S.A., INC.

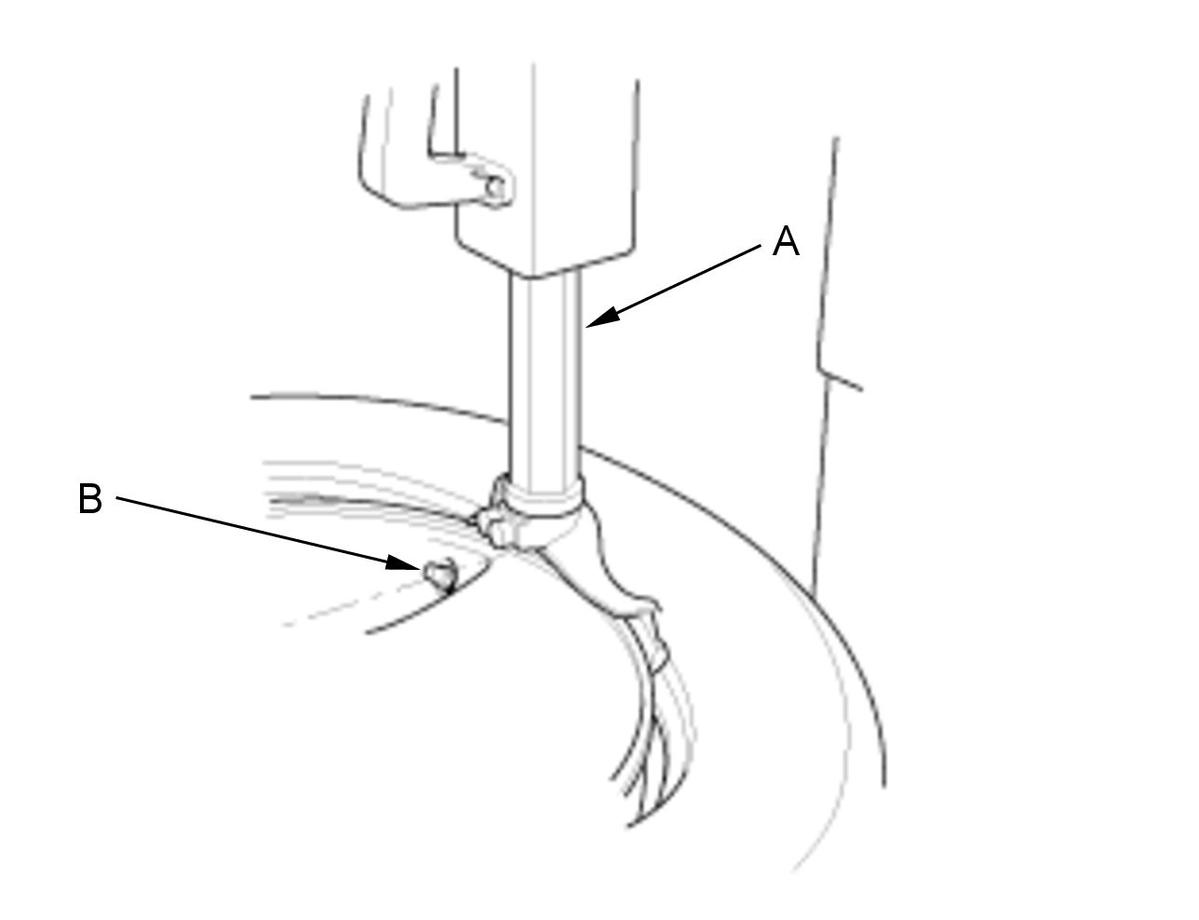

5. Lube the tire bead sparingly with a paste-type tire mounting lubricant, and position the wheel so that the tire machine (A) is next to the valve stem (B) and will move away from it when the machine starts.

6. Install the tire onto the wheel.

7. With a dry air source, inflate the tire to 300 kPa (3.06 kgf/cm² , 43.5 psi) to seat the tire bead to the rim.

NOTE:

Make sure the tire bead is seated on both sides of the rim evenly.

8. Adjust the tire pressure.

9. Install the valve stem cap.

10. Check and adjust the wheel balance.

Wheel with the Tire Pressure Sensor - Install - Refer to: Wheel Removal and Installation (2017 2018 2019 2020) , or Wheel Removal and Installation (2014 2015 2016)
Tire Pressure Sensor ID - Memorize

1. Connect the HDS, and memorize the tire pressure sensor IDs . Do not memorize the IDs automatically.
