Rear Stabilizer Link Removal and Installation: Installation

  1. Stabilizer Link - Install

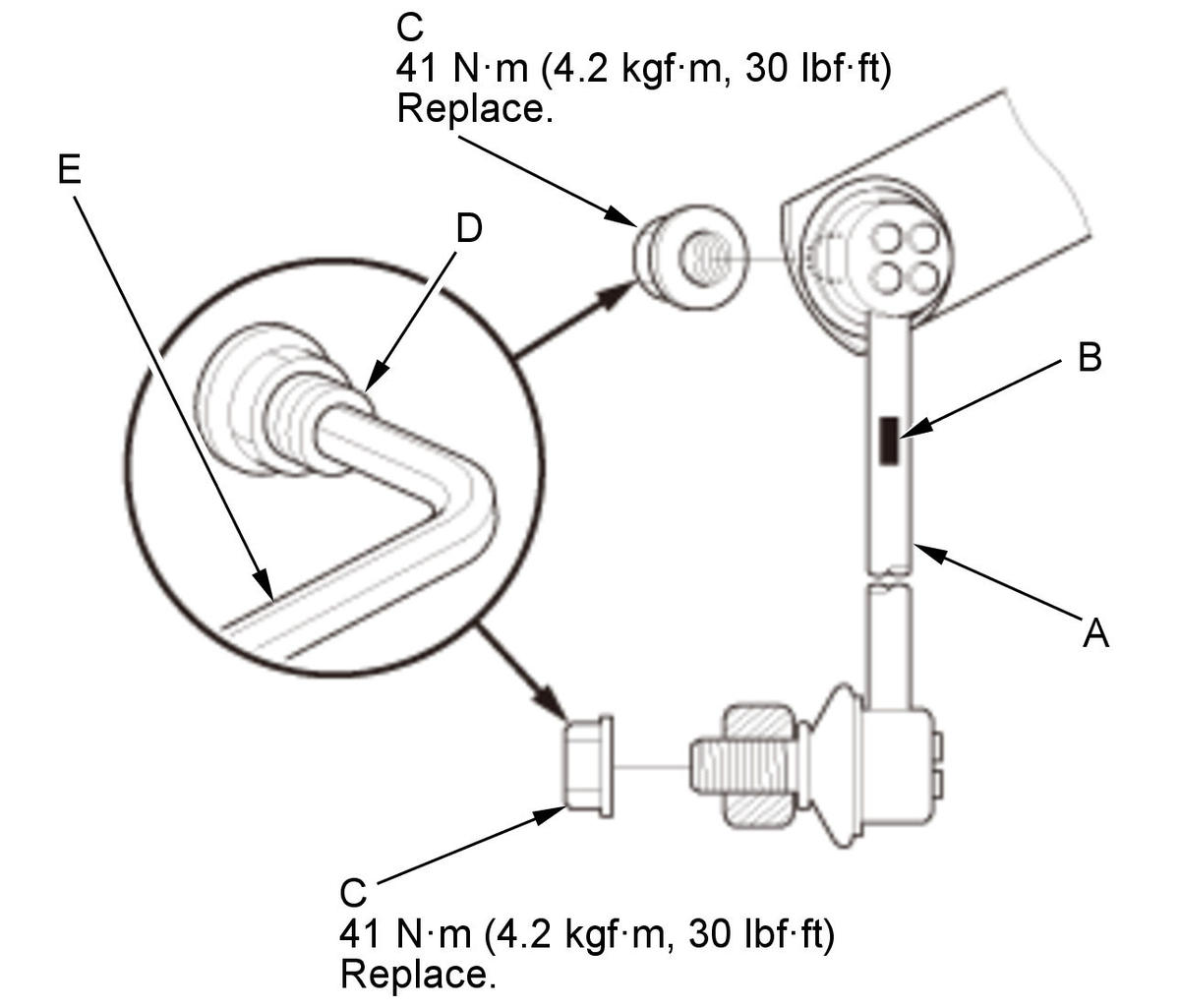

    Fig 1: Identifying Rear Stabilizer Link Components And Nuts With Torque Specifications
    GHH328541Courtesy of HONDA, U.S.A., INC.
    1. Install the stabilizer link (A).
    NOTE:

    • The stabilizer link has a paint mark (B). The paint mark indicates the difference between the left and right stabilizer links.
    • Install the end of the stabilizer link with the paint mark in the upper position.

    2. Install the new flange nut (C), and tighten them to the specified torque while holding the respective joint pin (D) with a hex wrench (E).
  2. Rear Wheel - Install - Refer to: Wheel Removal and Installation (2014 2015 2016) , or Wheel Removal and Installation (2017 2018 2019 2020)
  3. Test Drive - Check
    1. Test-drive the vehicle.

    2. After 5 minutes of driving, tighten the self-locking nut again to the specified torque.
