Rear Knuckle/Hub Bearing Unit Removal and Installation (2014 2015 2016)
>>
Exploded View
Exploded View
Knuckle/Hub Bearing Unit

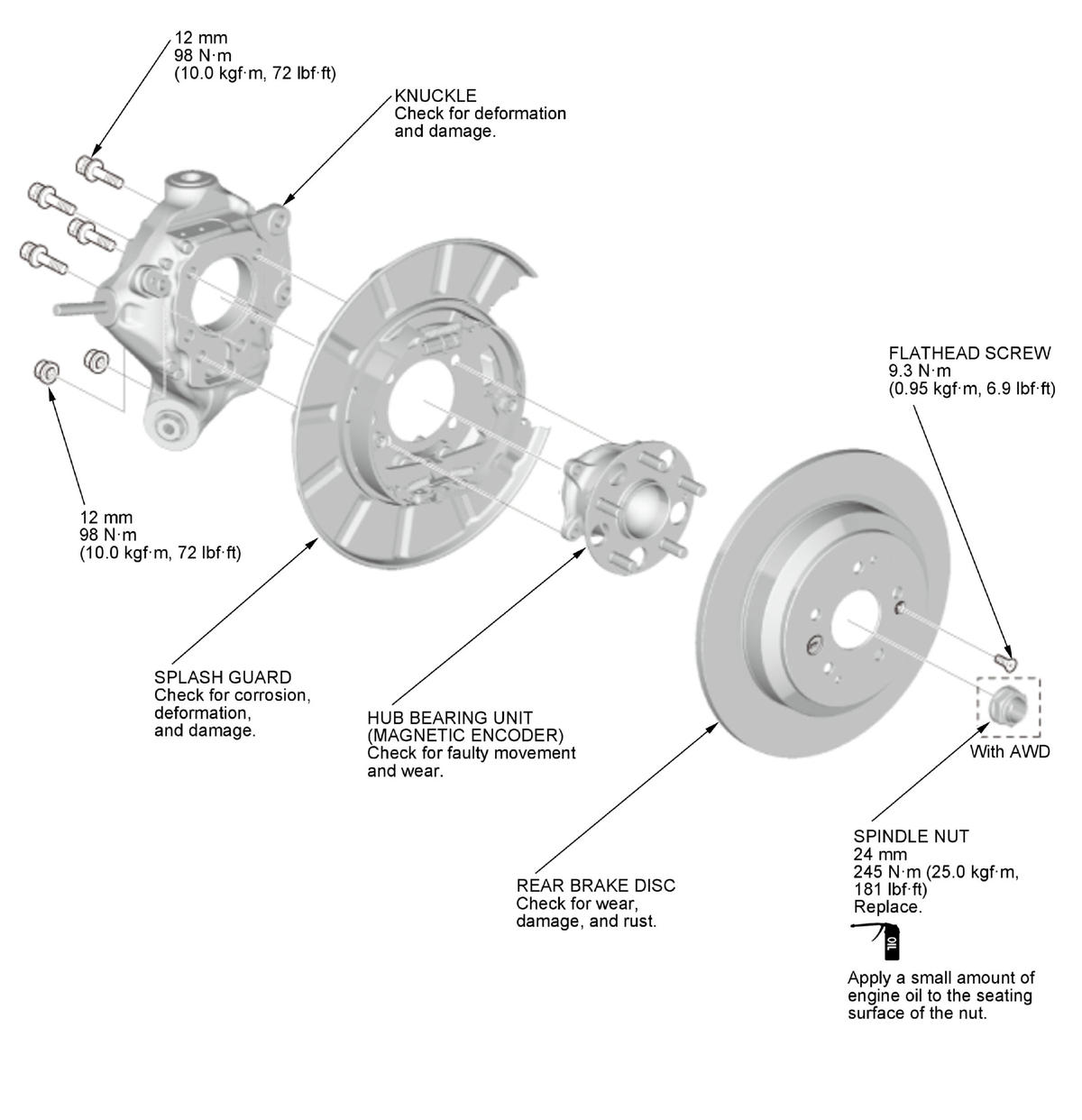

Fig 1: Exploded View Of Rear Knuckle/Hub Bearing Unit Components With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
