Front Stabilizer Link Removal and Installation: Removal

  1. Vehicle - Lift
  2. Front Wheel - Remove - Refer to: Wheel Removal and Installation (2014 2015 2016) , or Wheel Removal and Installation (2017 2018 2019 2020)
  3. Stabilizer Link - Remove

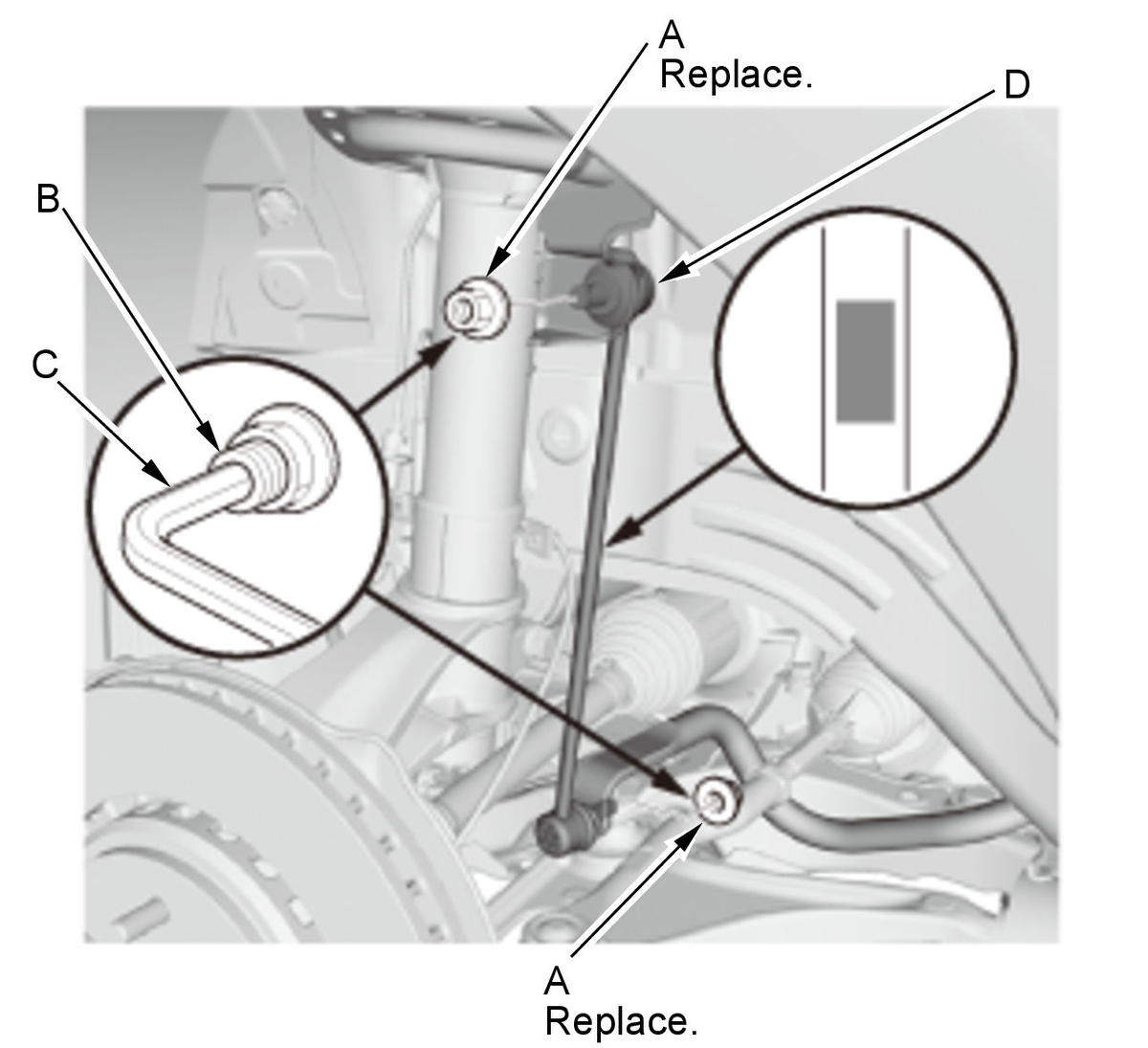

    GHH328508Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the flange nuts (A) while holding the respective joint pin (B) with a hex wrench (C).

    2. Remove the stabilizer link (D).
