Front Stabilizer Link Removal and Installation: Installation

Stabilizer Link - Install

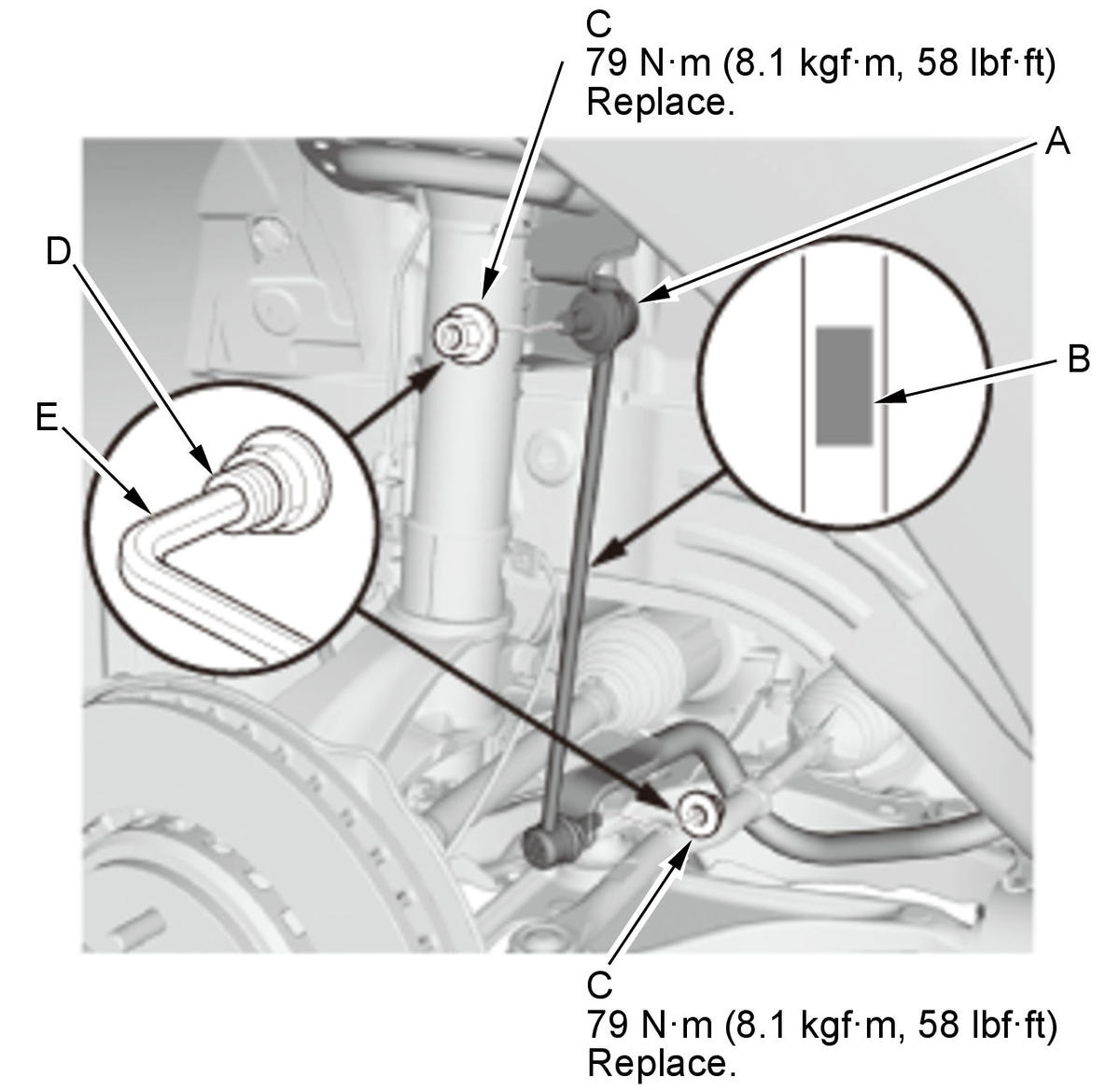

Fig 1: Identifying Stabilizer Link Components And Flange Nuts With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Install the stabilizer link (A).

NOTE:

The stabilizer link has a paint mark (B). The left stabilizer link is marked with yellow paint, and the right stabilizer link is marked with white paint.

2. Install the new flange nuts (C), and tighten them to the specified torque while holding the respective joint pin (D) with a hex wrench (E).

Front Wheel - Install - Refer to: Wheel Removal and Installation (2017 2018 2019 2020) , or Wheel Removal and Installation (2014 2015 2016)
