Front Stabilizer Bar Removal and Installation: Removal
- Vehicle - Lift
- Front Wheels - Remove - Refer to: Wheel Removal and Installation (2017 2018 2019 2020) , or Wheel Removal and Installation (2014 2015 2016)
- Engine Undercover - Removal
- Stabilizer Link - Disconnect
1. Disconnect both sides of the stabilizer link from the stabilizer bar . - Front Suspension Stroke Sensor - Disconnect (Driver's Side) (With Headlight Leveling System)
1. Disconnect the front suspension stroke sensor from the lower arm - Refer to: Front Suspension Stroke Sensor Removal and Installation (With Adaptive Damper System) (2019 2020) , or Front Suspension Stroke Sensor Removal and Installation (Without Adaptive Damper System) . - Lower Arm - Remove (Driver's Side)
- Stabilizer Bar - Remove

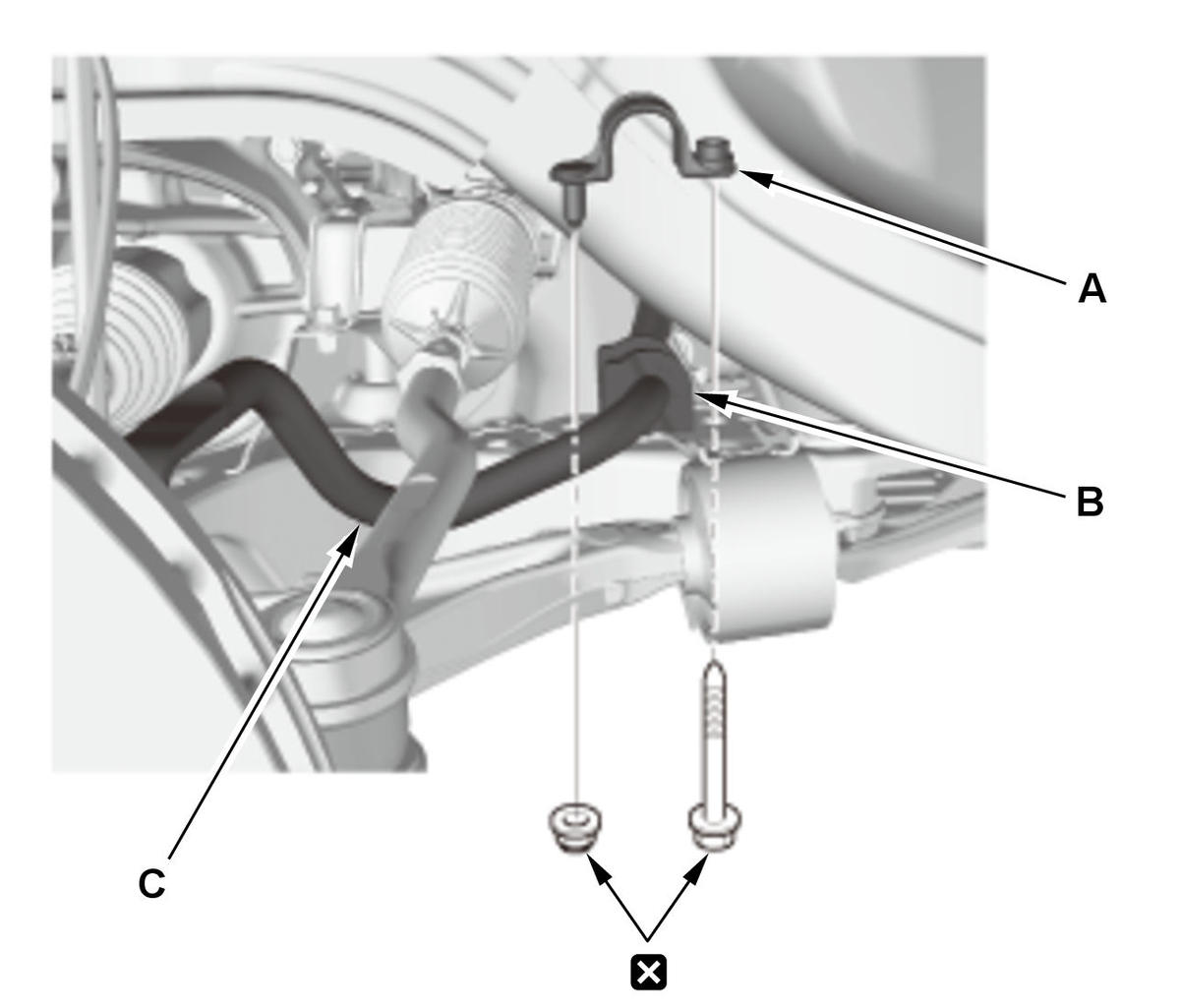

1. Remove the bushing holders (A). 2. Remove the bushings (B).
3. Move the stabilizer bar (C) toward the driver's side, and remove the stabilizer bar.
NOTE:Be careful not to damage the steering gearbox.
