Front Stabilizer Bar Removal and Installation: Installation
- Stabilizer Bar - Install
Courtesy of HONDA, U.S.A., INC.

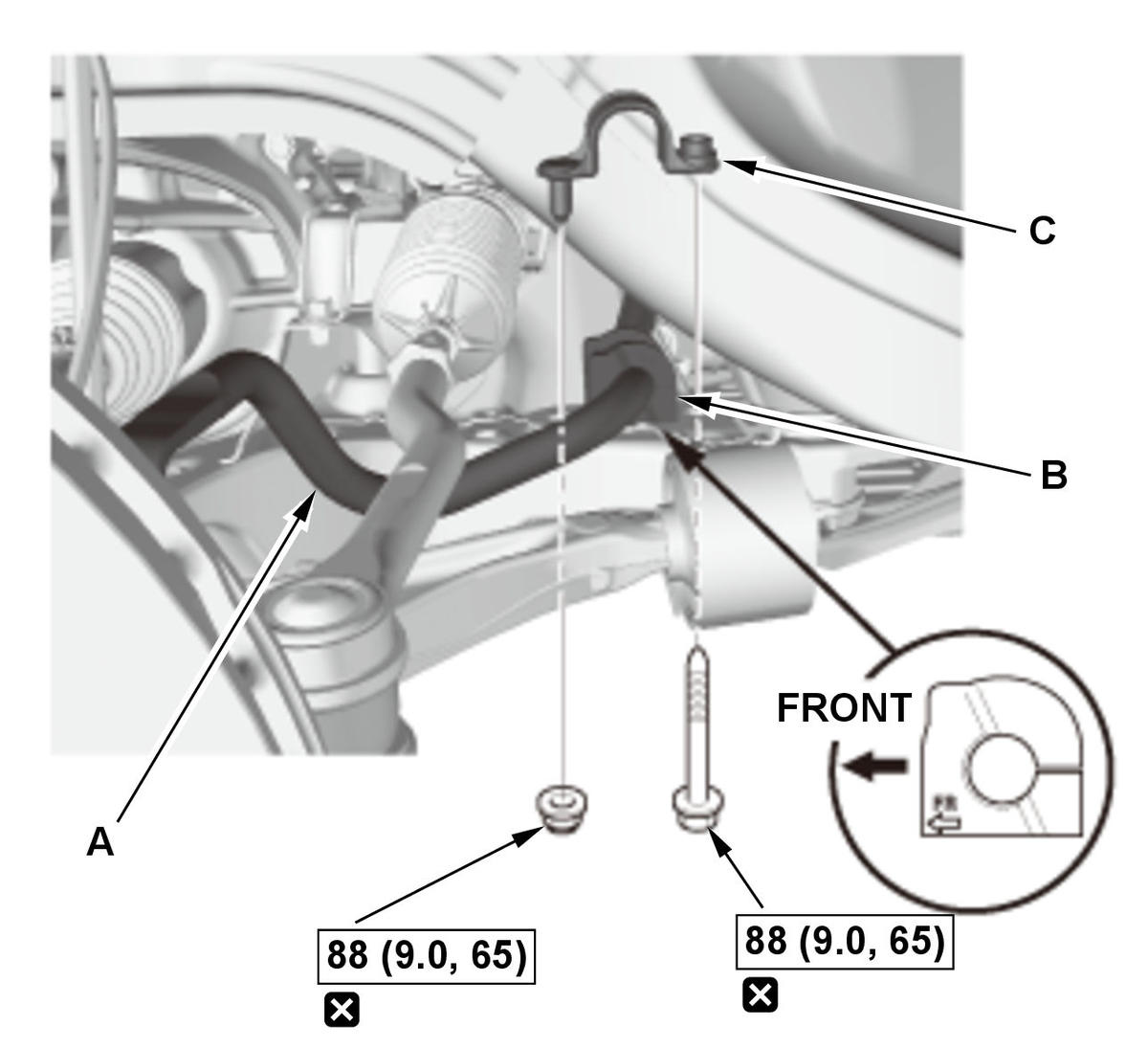

1. Install the stabilizer bar (A). NOTE:Be careful not to damage the steering gearbox.
2. Install the bushings (B).
NOTE:Note the direction of installation for the bushing.
3. Install the bushing holders (C).
NOTE:Use a new bolt and nut during reassembly.
- Lower Arm - Install (Driver's Side)
- Suspension Stroke Sensor - Connect (Driver's Side) (With Headlight Auto Leveling System)
1. Connect the front suspension stroke sensor to the lower arm - Refer to: Front Suspension Stroke Sensor Removal and Installation (Without Adaptive Damper System) , or Front Suspension Stroke Sensor Removal and Installation (With Adaptive Damper System) (2019 2020) . - Stabilizer Link - Connect
1. Connect both sides of the stabilizer link to the stabilizer bar . - Engine Undercover - Install
- Front Wheels - Install - Refer to: Wheel Removal and Installation (2014 2015 2016) , or Wheel Removal and Installation (2017 2018 2019 2020)
- Wheel Alignment - Check - Refer to:
- Headlight Initial Position - Learn (With Headlight Leveling System)
