Front Lower Arm Compliance Bush Removal and Installation: Removal

Vehicle - Lift
Front Wheel - Remove - Refer to: Wheel Removal and Installation (2014 2015 2016) , or Wheel Removal and Installation (2017 2018 2019 2020)
Lower Arm - Remove

Lower Arm Bushing - Remove

Courtesy of HONDA, U.S.A., INC.

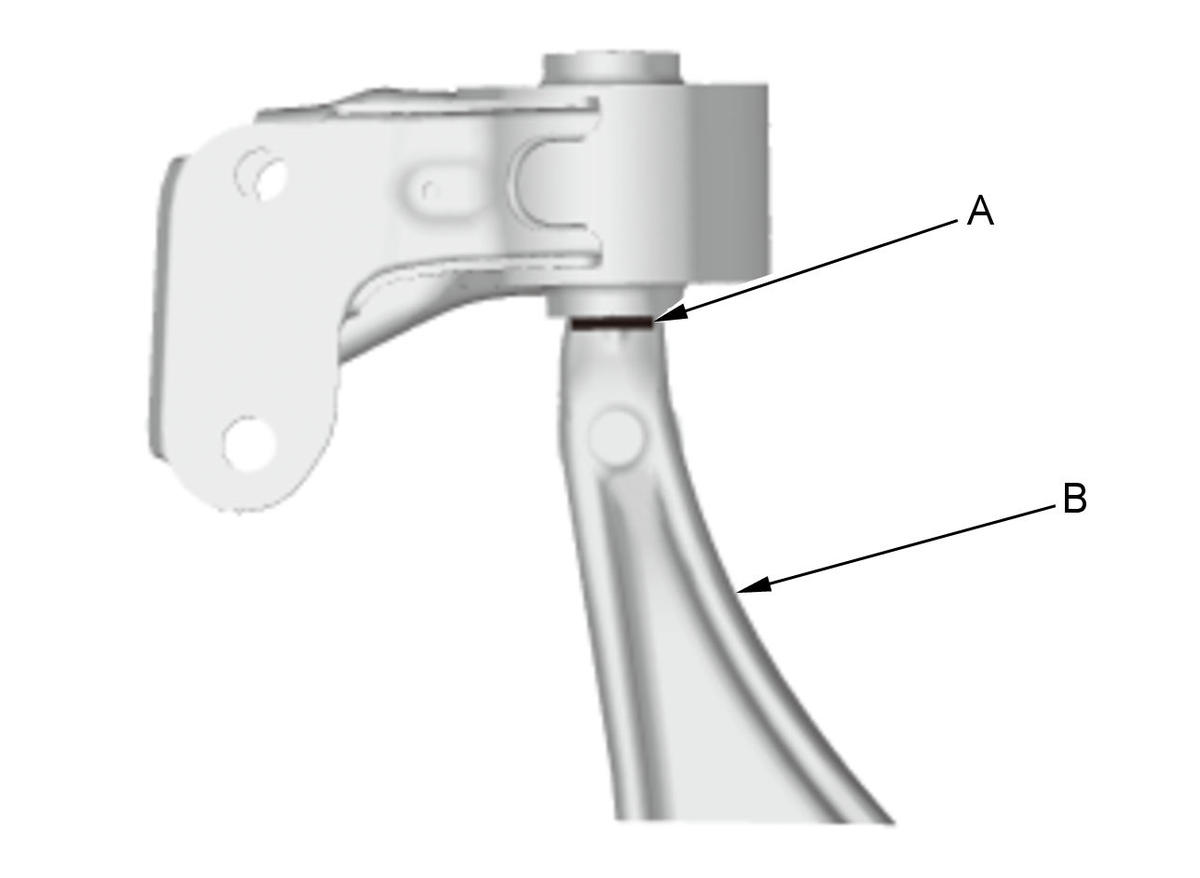

1. Make reference mark (A) on the lower arm (B) using paint marker.

Courtesy of HONDA, U.S.A., INC.

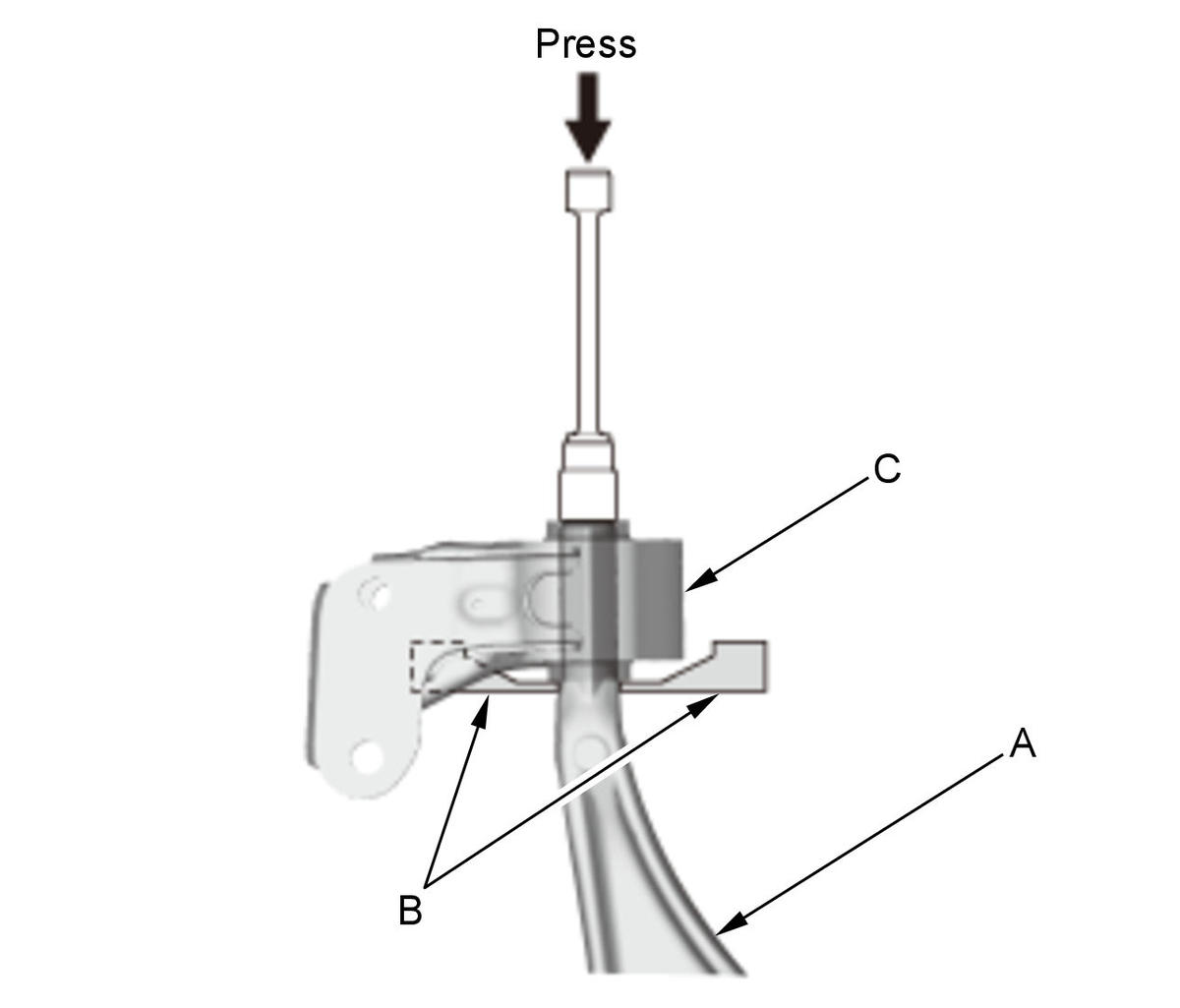

2. Support the lower arm (A) on commercially available bearing separator (B) as shown.

3. Press out the lower arm with a suitable socket and a hydraulic press, and remove the lower arm from the bushing (C).

NOTE:

Be careful not to damage the inside of the bushing hole when pressing on the bushing.
