DTC P2238, P2241

DTC P2238  : Rear A/F Sensor (Bank 1, Sensor 1) IP Circuit Low Voltage DTC P2241  : Front A/F Sensor (Bank 2, Sensor 1) IP Circuit Low Voltage

NOTE: Before you troubleshoot, review the general troubleshooting information - Refer to: How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016), or How to Troubleshoot the A/T System (2014 2015) .
• Information marked with an asterisk (*) applies to the front bank (Bank 2).

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   - 2. Clear the DTC with the HDS.

   - 3. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P2238 Rear A/F Sensor (Bank 1, Sensor 1) IP Circuit Low Voltage
   P2241 Front A/F Sensor (Bank 2, Sensor 1) IP Circuit Low Voltage

   Is DTC P2238 and/or P2241 * indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the A/F sensor (Sensor 1), the PGM-FI subrelay, and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Shorted wire check (IPB1 (IPB2) * line):

   - 1.Turn the vehicle to the OFF (LOCK) mode.

   - 2. Jump the SCS line with the HDS.

   - 3. Disconnect the following connectors.

   PCM connector C (51P) - Refer to: How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016), or How to Troubleshoot the A/T System (2014 2015)

   A/F sensor (Sensor 1) 6P connector

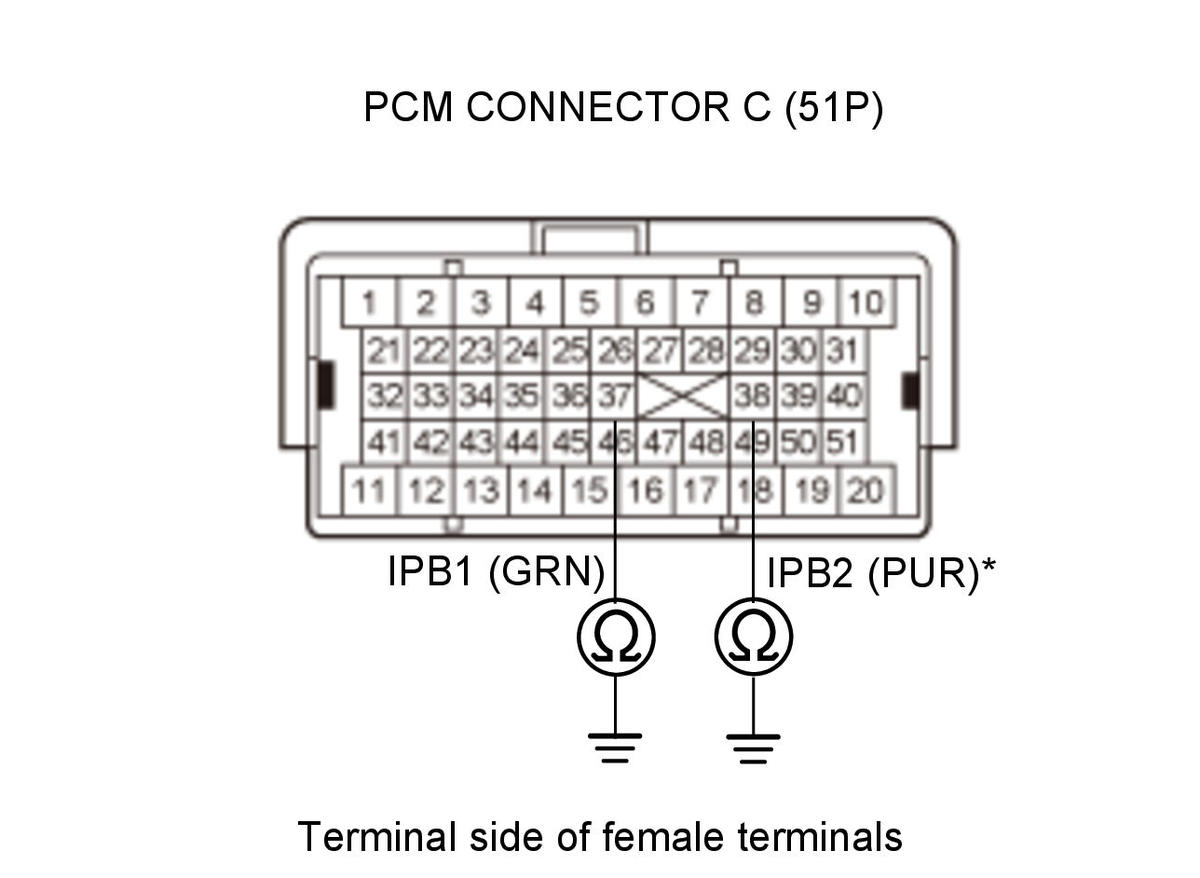

   - 4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	A/F sensor (Sensor 1) 6P connector: disconnected
   	PCM connector C (51P): disconnected
   Test circuit	IPB1 (IPB2) *
   Test point 1	PCM connector C (51P) No. 37 (GRN)
   	PCM connector C (51P) No. 38 (PUR) *
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the IPB1 (IPB2) * wire between the PCM (C37 (C38) *) and the A/F sensor (Sensor 1).

   NO

   The IPB1 (IPB2) * wire is OK. Go to step 3.

3. PCM internal circuit check

   -1. Reconnect the following connector.

   PCM connector C (51P) - Refer to: How to Troubleshoot the A/T System (2014 2015), or How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016)

   - 2. Exit the SCS mode with the HDS.

   - 3. Turn the vehicle to the ON mode.

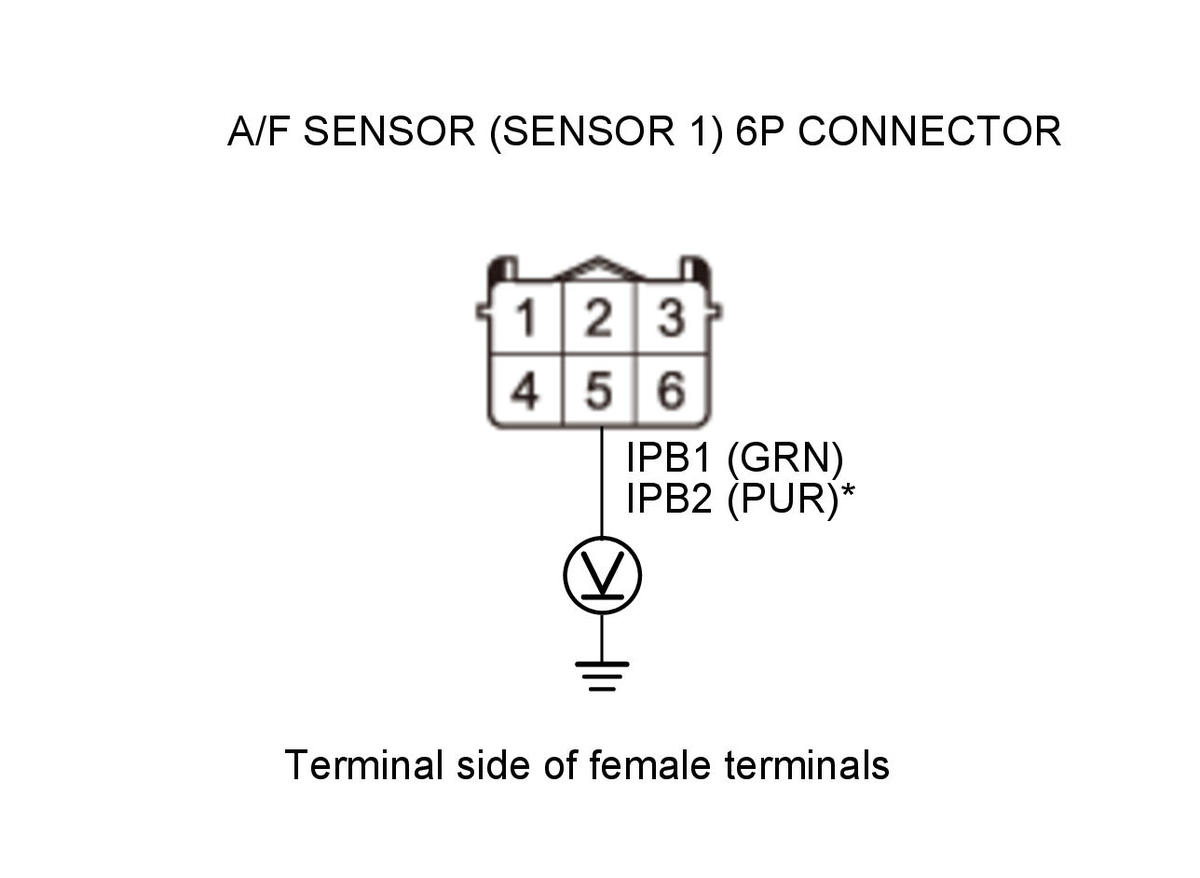

   - 4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	A/F sensor (Sensor 1) 6P connector: disconnected
   Test circuit	IPB1 (IPB2) *
   Test point 1	Rear A/F sensor (Bank 1, Sensor 1) 6P connector No. 5 (GRN)
   	Front A/F sensor (Bank 2, Sensor 1) 6P connector No. 5 (PUR) *
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 0.2 V or less?

   YES

   Update the PCM if it does not have the latest software, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2014 2015), or PCM Removal and Installation (2016) .

   NO

   The PCM internal circuit is OK. Replace the A/F sensor (Sensor 1) .
