DTC P2182
DTC P2182 : ECT Sensor 2 Out of Range
| DTC Description | Confirmed DTC | Pending DTC |
|---|---|---|
| P2182 ECT Sensor 2 Out of Range |
DTC (PGM-FI)
- Problem verification 1
-1. Turn the vehicle to the ON mode.
- 2. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit ECT SENSOR 2 Less than 0.14 V Do the current condition(s) match the threshold?
YES
The failure is duplicated. Go to step 3.
NO
Go to step 2.
- Problem verification 2
-1. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit ECT SENSOR 2 More than 4.99 V Do the current condition(s) match the threshold?
YES
The failure is duplicated. Go to step 5.
NO
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at ECT sensor 2 and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot - Refer to: How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the A/T System (2014 2015), or How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016) .
- Determine possible failure area (ECT sensor 2, others)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connector.
ECT Sensor 2 2P connector - 3. Turn the vehicle to the ON mode.
- 4. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit ECT SENSOR 2 Less than 0.14 V Do the current condition(s) match the threshold?
YES
Go to step 4.
NO
Replace ECT sensor 2 - Refer to: ECT Sensor 1 Removal and Installation, or ECT Sensor 2 Removal and Installation .
- Shorted wire check (TW2 SNSR/TW2 line)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Jump the SCS line with the HDS, and wait more than 1 minute.
- 3. Disconnect the following connector.
PCM connector A (51P) - 4. Check for continuity between test points 1 and 2.

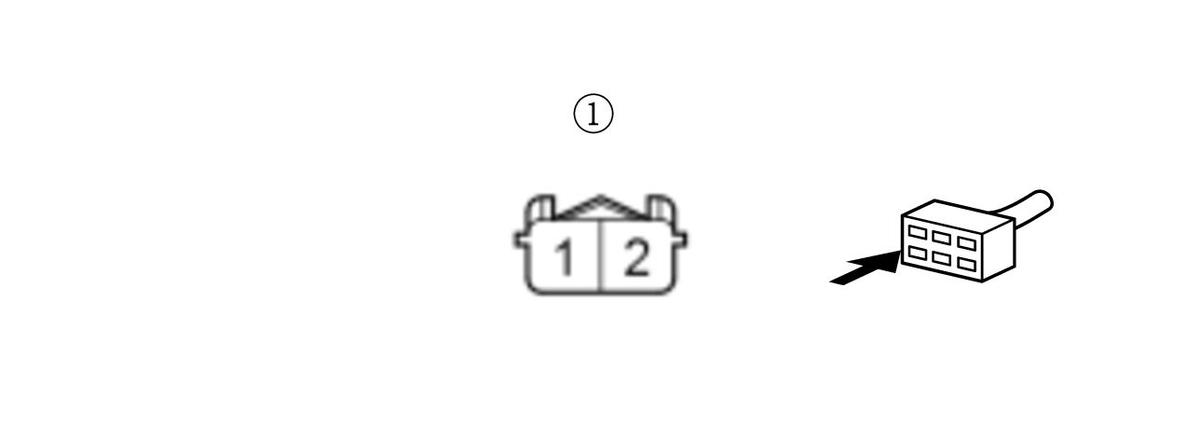

Test condition Vehicle OFF (LOCK) mode ECT Sensor 2 2P connector: disconnected PCM connector A (51P): disconnected Test point 1 ECT sensor 2 2P connector (female terminals) No. 2: Test point 2 Body ground Is there continuity?
YES
Repair a short in the TW2 SNSR/TW2 wire between the PCM (A31) and ECT sensor 2.
NO
The TW2 SNSR/TW2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2016), or PCM Removal and Installation (2014 2015) .
- Determine possible failure area (ECT sensor 2, others)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connector.
ECT sensor 2 2P connector - 3. Connect terminals A and B with a jumper wire.
Terminal A ECT sensor 2 2P connector (female terminals) No. 1: Terminal B ECT sensor 2 2P connector (female terminals) No. 2: - 4. Turn the vehicle to the ON mode.
- 5. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit ECT SENSOR 2 More than 4.99 V Do the current condition(s) match the threshold?
YES
Go to step 6.
NO
Replace ECT sensor 2 - Refer to: ECT Sensor 1 Removal and Installation, or ECT Sensor 2 Removal and Installation .
- Determine possible failure area (TW2 SNSR/TW2 line, others)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Remove the jumper wire from the ECT sensor 2 2P connector.
- 3. Turn the vehicle to the ON mode.
- 4. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode ECT sensor 2 2P connector: disconnected Test point 1 ECT sensor 2 2P connector (female terminals) No. 2: Test point 2 Body ground Is there about 5.0 V?
YES
Go to step 7.
NO
Go to step 8.
- Open wire check (GND/SG line)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Jump the SCS line with the HDS, and wait more than 1 minute.
- 3. Disconnect the following connector.
PCM connector A (51P) - 4. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode ECT sensor 2 2P connector: disconnected PCM connector A (51P): disconnected Test point 2 ECT sensor 2 2P connector (female terminals) No. 1: Test point 1 PCM connector A (51P) No. 20 - Refer to: PCM Connector for Inputs and Outputs (2017 2018 2019 2020), or PCM Connector for Inputs and Outputs (2014 2015), or PCM Connector for Inputs and Outputs (2016) Is there continuity?
YES
The GND/SG line is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2014 2015), or PCM Removal and Installation (2016) .
NO
Repair an open in the GND/SG line between the PCM (A20) and ECT sensor 2.
- Open wire check (TW2 SNSR/TW2 line)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Jump the SCS line with the HDS, and wait more than 1 minute.
- 3. Disconnect the following connector.
PCM connector A (51P) - 4. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode ECT sensor 2 2P connector: disconnected PCM connector A (51P): disconnected Test point 1 ECT sensor 2 2P connector (female terminals) No. 2: Test point 2 PCM connector A (51P) No. 31 - Refer to: PCM Connector for Inputs and Outputs (2017 2018 2019 2020), or PCM Connector for Inputs and Outputs (2014 2015), or PCM Connector for Inputs and Outputs (2016) Is there continuity?
YES
The TW2 SNSR/TW2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2014 2015), or PCM Removal and Installation (2016) .
NO
Repair an open in the TW2 SNSR/TW2 wire between the PCM (A31) and ECT sensor 2.
